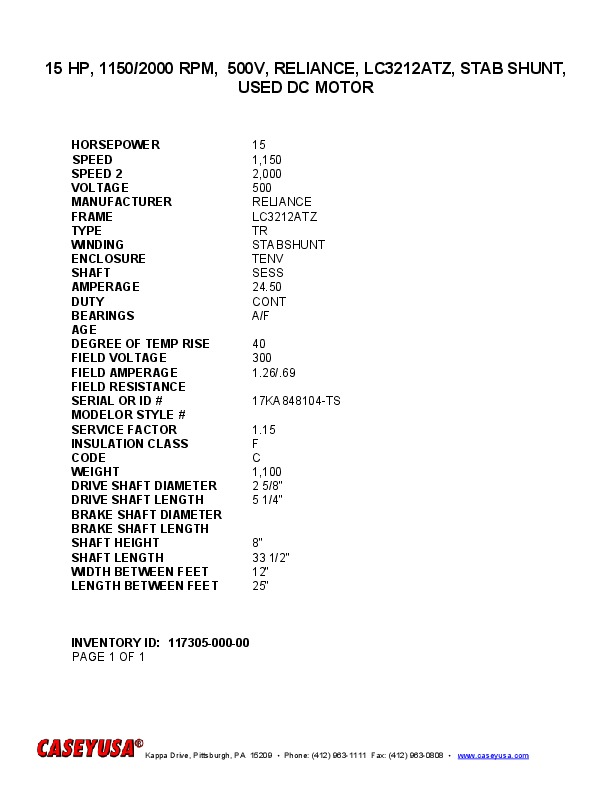

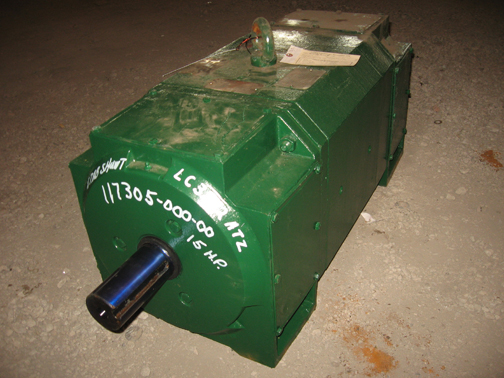

15 HP, 1150/2000 RPM, 500V, RELIANCE, LC3212ATZ, STAB SHUNT, USED DC MOTOR
 "11730500000 15 HP, 1150/2000 RPM, 500V, RELIANCE, LC3212ATZ, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 11730500000 |
| TITLE | 15 HP, 1150/2000 RPM, 500V, RELIANCE, LC3212ATZ, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 15 |
| SPEED | 1,150 |
| SPEED 2 | 2,000 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | 3212ATZ |
| TYPE | TR |
| WINDING | STABSHUNT |
| ENCLOSURE | TENV |
| SHAFT | SESS |
| AMPERAGE | 24.50 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 1.26/.69 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 17KA848104-TS |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 1,100 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 5 1/4" |
| SHAFT HEIGHT | 8" |
| MOTOR LENGTH | 33 1/2" |
| WIDTH BETWEEN FEET | 12" |
| LENGTH BETWEEN FEET | 25" |
