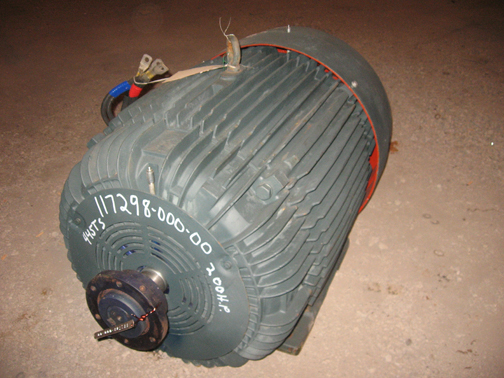

200 HP, 3565 RPM, 460V, RELIANCE, 445TS, INDUCTION AC MOTOR
 "11729800000 200 HP, 3565 RPM, 460V, RELIANCE, 445TS, INDUCTION AC MOTOR")
 "11729800000 200 HP, 3565 RPM, 460V, RELIANCE, 445TS, INDUCTION AC MOTOR")
| INVENTORY ID | 11729800000 |
| TITLE | 200 HP, 3565 RPM, 460V, RELIANCE, 445TS, INDUCTION AC MOTOR |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 3,565 |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 445TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 213 |
| SERIAL NUMBER OR ID NUMBER | P44G5634BG2SS |
| MODEL NUMBER OR STYLE NUMBER | CONT |
| WEIGHT | 1,820 |
| DUTY | YES |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11 1/8" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
