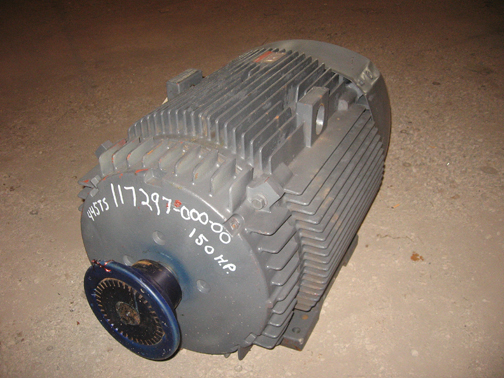

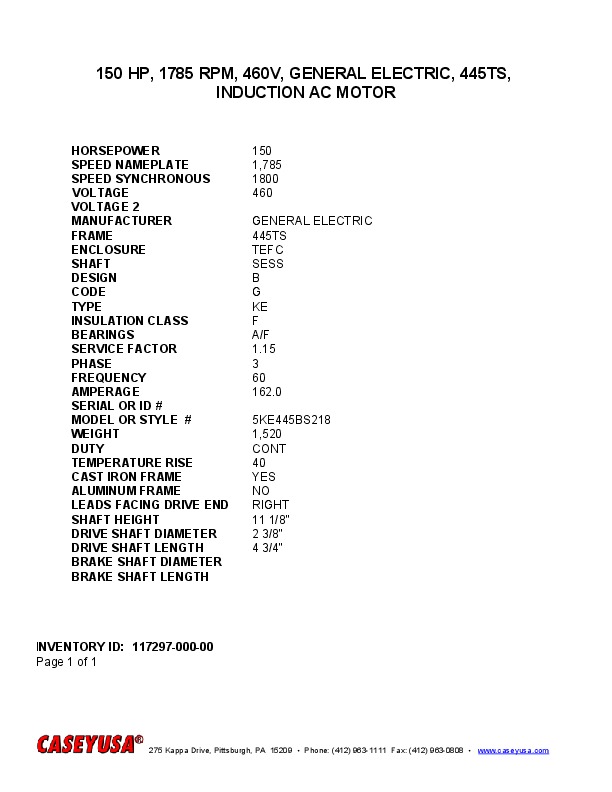

150 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 445TS, INDUCTION AC MOTOR
 "11729700000 150 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 445TS, INDUCTION AC MOTOR")
| INVENTORY ID | 11729700000 |
| TITLE | 150 HP, 1785 RPM, 460V, GENERAL ELECTRIC, 445TS, INDUCTION AC MOTOR |
| HORSEPOWER | 150 |
| SPEED NAMEPLATE | 1,785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KE |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 162.0 |
| MODEL NUMBER OR STYLE NUMBER | 5KE445BS218 |
| WEIGHT | 1,520 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11 1/8" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 3/4" |
