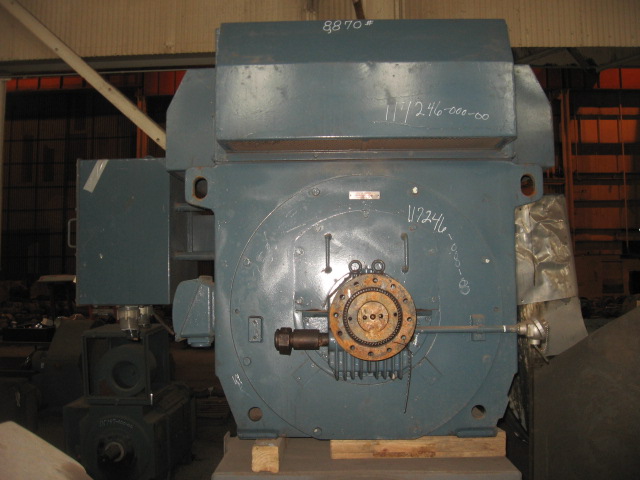

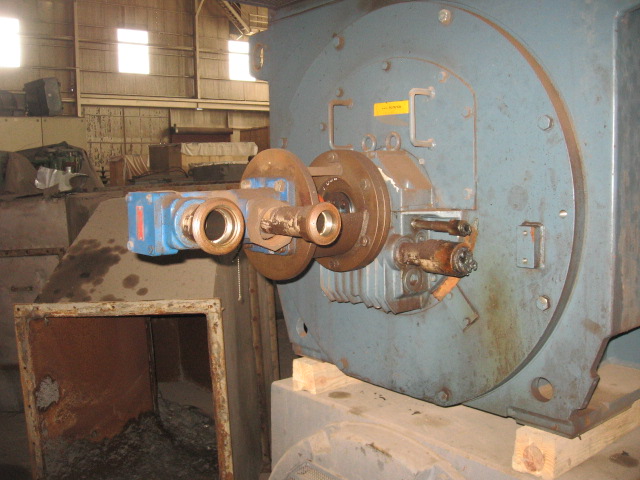

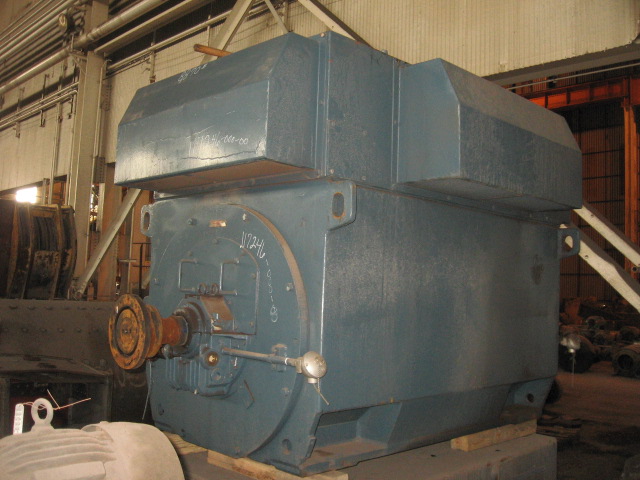

1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR
 "11724600000 1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR")
 "11724600000 1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR")
 "11724600000 1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR")
 "11724600000 1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR")

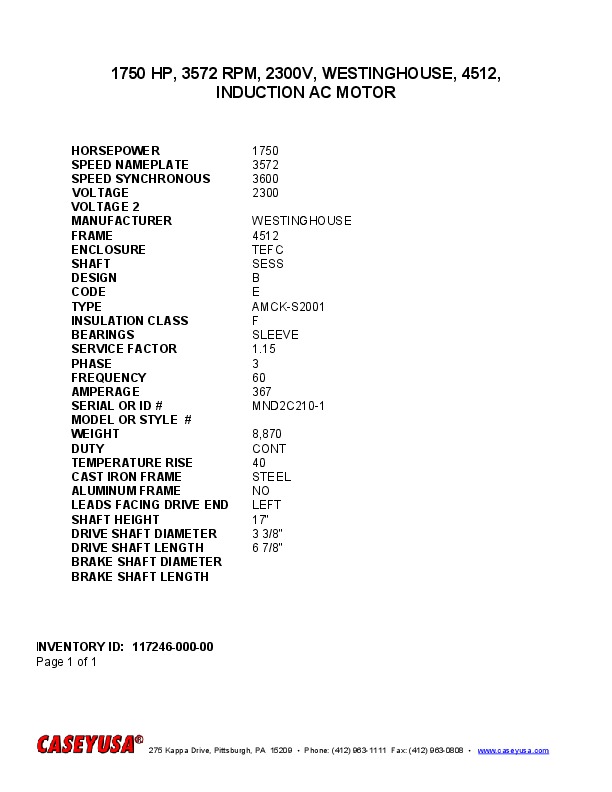

| INVENTORY ID | 11724600000 |
| TITLE | 1750 HP, 3572 RPM, 2300V, WESTINGHOUSE, 4512, INDUCTION AC MOTOR |
| HORSEPOWER | 1750 |
| SPEED NAMEPLATE | 3572 |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 2300 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 4512 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | E |
| TYPE | AMCK-S2001 |
| INSULATION CLASS | F |
| BEARINGS | SLEEVE |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 367 |
| SERIAL NUMBER OR ID NUMBER | MND2C210-1 |
| WEIGHT | 8,870 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | STEEL |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 17" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 6 7/8" |
