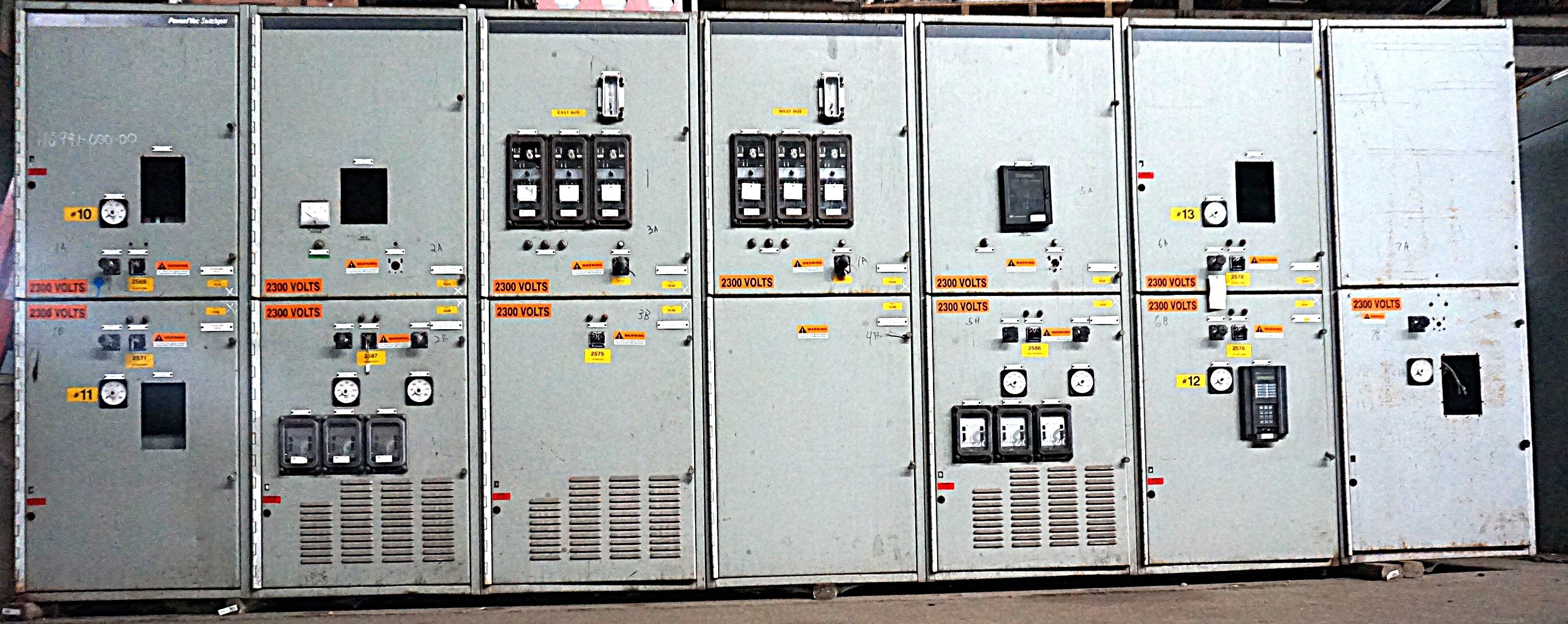

GENERAL ELECTRIC POWER VAC, TYPE VB1-4.16-250, (3) 3000 AMP (5) 1200 AMP, 5 KV, VACUUM CIRCUIT BREAKERS IN (7) VERTICAL SECTIONS
 "11699100000 GENERAL ELECTRIC POWER VAC, TYPE VB1-4.16-250, (3) 3000 AMP (5) 1200 AMP, 5 KV, VACUUM CIRCUIT BREAKERS IN (7) VERTICAL SECTIONS")
 "11699100000 GENERAL ELECTRIC POWER VAC, TYPE VB1-4.16-250, (3) 3000 AMP (5) 1200 AMP, 5 KV, VACUUM CIRCUIT BREAKERS IN (7) VERTICAL SECTIONS")
| INVENTORY ID | 11699100000 |
| TITLE | GENERAL ELECTRIC POWER VAC, TYPE VB1-4.16-250, (3) 3000 AMP (5) 1200 AMP, 5 KV, VACUUM CIRCUIT BREAKERS IN (7) VERTICAL SECTIONS |
| NUMBER OF VERTICAL SECTIONS | 7 |
| NUMBER OF BREAKERS | 8 |
| NUMBER OF AMPS ON EACH BREAKER | (3) 3000 AMP, (5) 1200 AMP |
| MANUFACTURER | GENERAL ELECTRIC POWER VAC |
| TYPE | VBI-4.16-250 |
| METERING - YES/NO | YES |
| COUNTER - YES/NO | YES |
| VOLTS | 5,000 |
| INTERRUPTION CAPACITY | 250 MVA |
| TYPE OF CLOSED VOLTAGE | 125VDC |
| TYPE OF TRIP VOLTAGE | 125VDC |
| AGE | 2002 |
| DIMENSIONS | 21' W X 96" D X 98" H |
| CONDITION | GOOD |
| COMMENTS | USED FOR MOTOR STARTERS |
