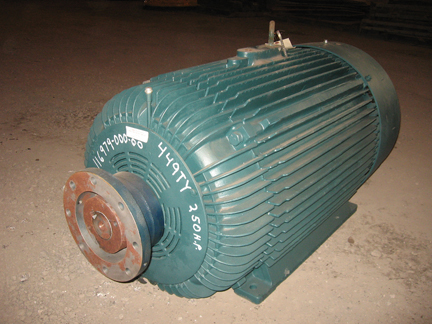

250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR
 "11697900000 250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR")
 "11697900000 250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR")
 "11697900000 250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR")
 "11697900000 250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR")

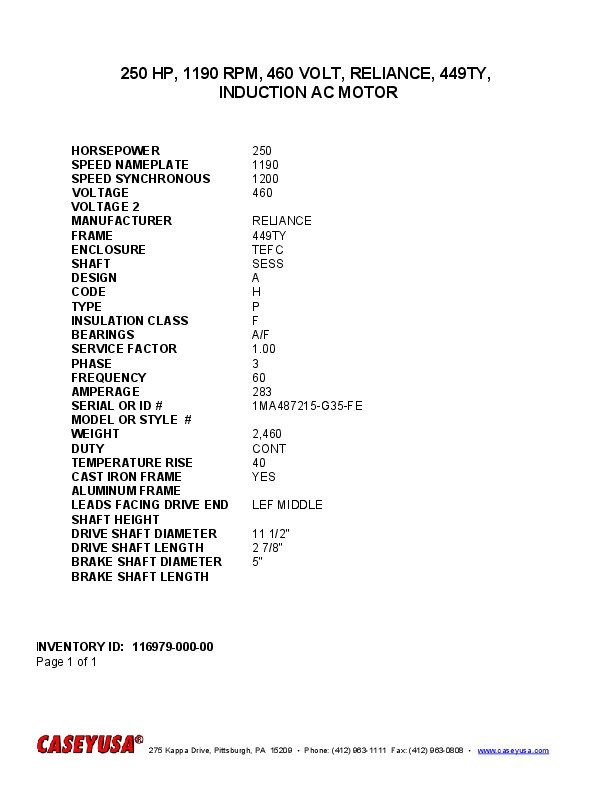

| INVENTORY ID | 11697900000 |
| TITLE | 250 HP, 1190 RPM, 460 VOLT, RELIANCE, 449TY, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1190 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 449TY |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| CODE | H |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.00 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 283 |
| SERIAL NUMBER OR ID NUMBER | 1MA487215-G35-FE |
| WEIGHT | 2,460 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEF MIDDLE |
| DRIVE SHAFT DIAMETER | 11 1/2" |
| DRIVE SHAFT LENGTH | 2 7/8" |
| BRAKE SHAFT DIAMETER | 5" |
