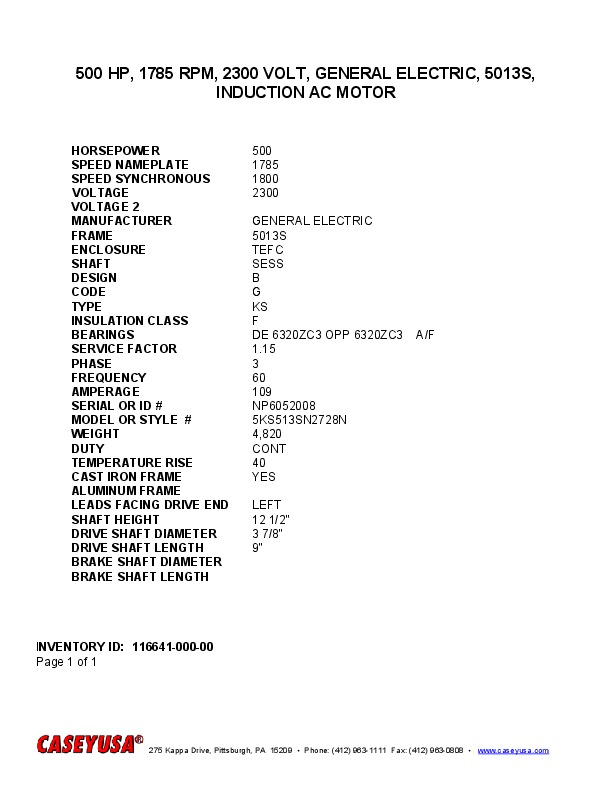

500 HP, 1785 RPM, 2300 VOLT, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR
 "11664100000 500 HP, 1785 RPM, 2300 VOLT, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR")
 "11664100000 500 HP, 1785 RPM, 2300 VOLT, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR")
| INVENTORY ID | 11664100000 |
| TITLE | 500 HP, 1785 RPM, 2300 VOLT, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR |
| HORSEPOWER | 500 |
| SPEED NAMEPLATE | 1785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 5013S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | DE 6320ZC3 OPP 6320ZC3 A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 109 |
| SERIAL NUMBER OR ID NUMBER | NP6052008 |
| MODEL NUMBER OR STYLE NUMBER | 5KS513SN2728N |
| WEIGHT | 4,820 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 3 7/8" |
| DRIVE SHAFT LENGTH | 9" |
