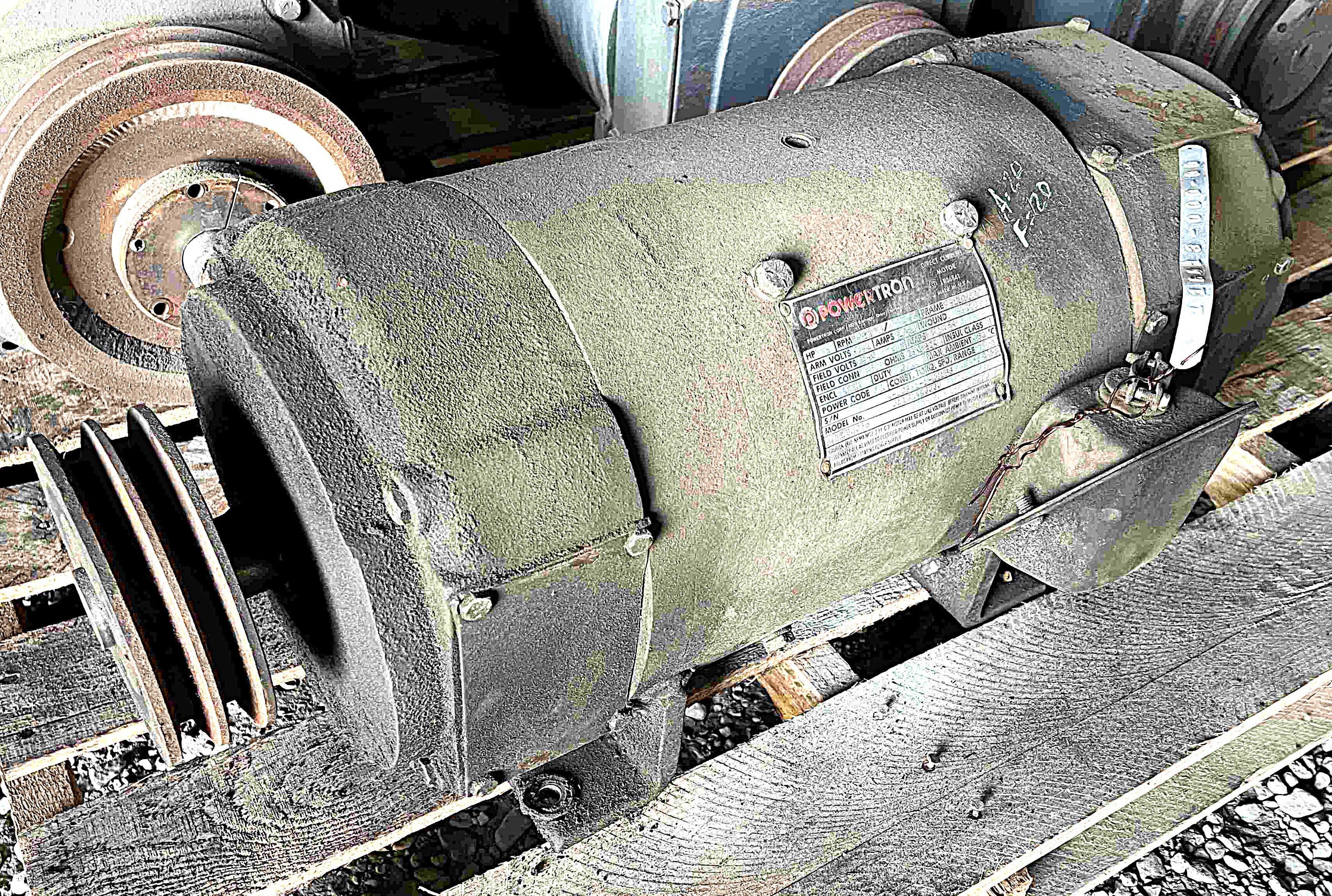

5 HP, 1750 RPM, 240 VOLT, CD259AT, SHUNT USED DC MOTOR
 "11641300000 5 HP, 1750 RPM, 240 VOLT, CD259AT, SHUNT USED DC MOTOR")
 "11641300000 5 HP, 1750 RPM, 240 VOLT, CD259AT, SHUNT USED DC MOTOR")

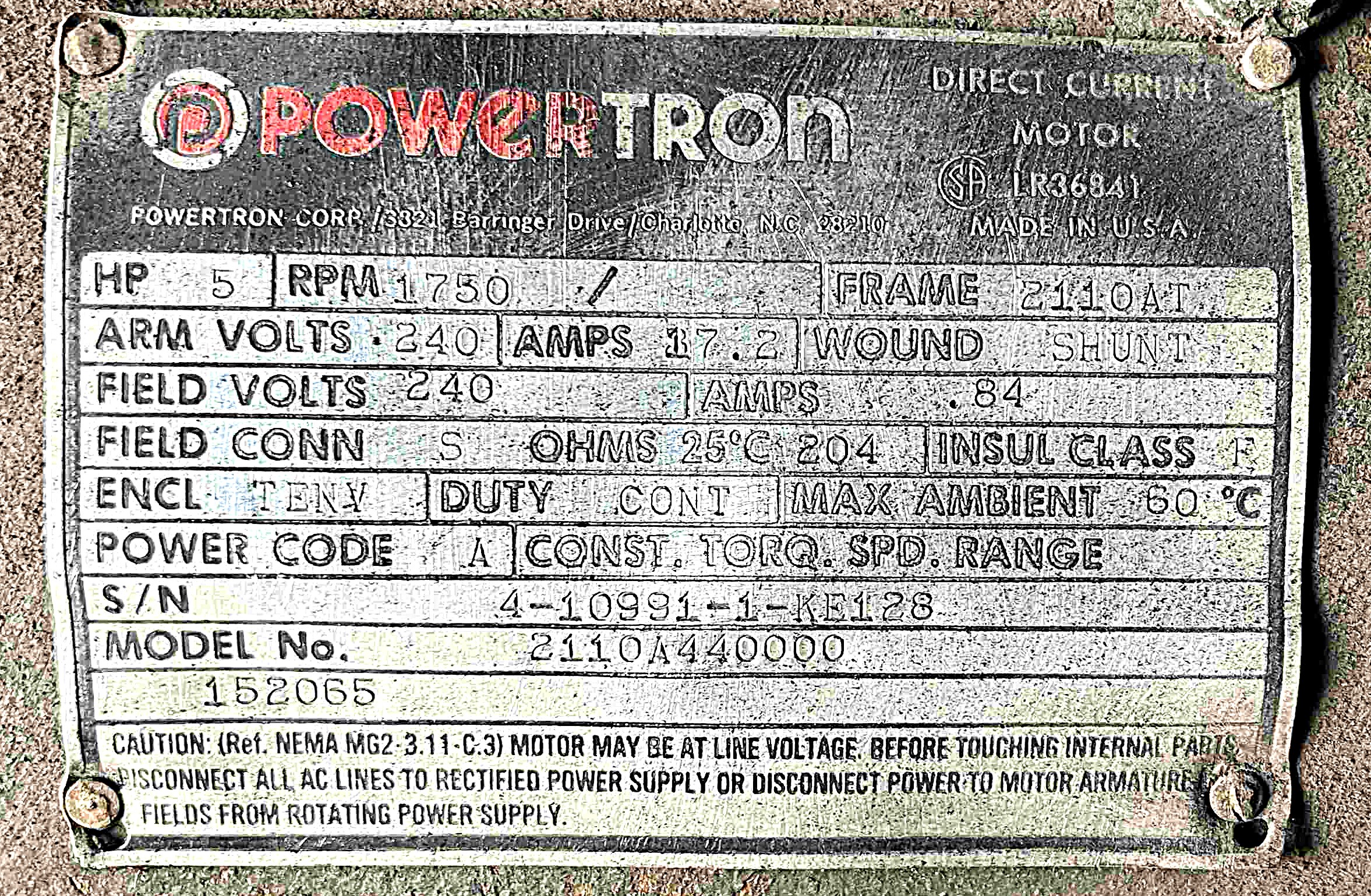

| INVENTORY ID | 11641300000 |
| TITLE | 5 HP, 1750 RPM, 240 VOLT, CD259AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 5 |
| SPEED | 1750 |
| VOLTAGE | 240 |
| MANUFACTURER | POWERTRON |
| FRAME | 2110AT |
| WINDING | SHUNT |
| ENCLOSURE | TENV |
| SHAFT | SESS |
| AMPERAGE | 17.2 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | .84 |
| FIELD RESISTANCE | 204 @ 25 DEGREE CELCIUS |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | 4-10991-1-KE1282110A4R0000 |
| MODEL NUMBER OR STYLE NUMBER | 152065 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 234 |
| LEADS FACING DRIVE END (RIGHT , LEFT, TOP) | LEFT |
| DRIVE SHAFT DIMENSION | 1 3/8" |
| DRIVE SHAFT LENGTH | 3" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 5 1/4" |
| SHAFT LENGTH | 27" |
| WIDTH BETWEEN FEET | 8 1/2" |
| LENGTH BETWEEN FEET | 12 1/2" |
