SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500
DC OPERATED

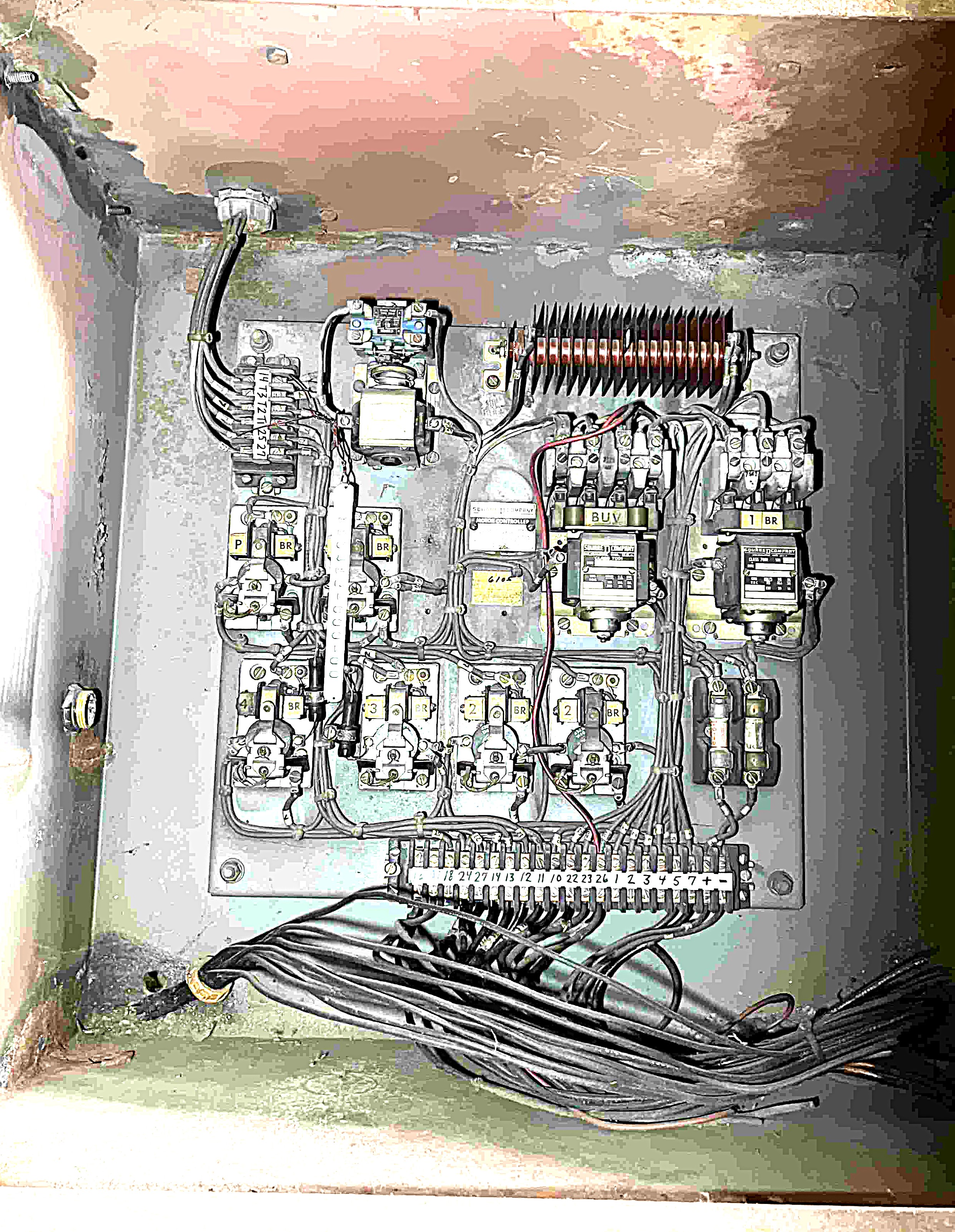

BRAKE CONTROL RELAY BUV TYPE RO-40
IBR RELAY WIHT NORMALLY CLOSED CONTACTOR TYPE RO-30
TR TIMING RELAY OH-1E
(5) BR BRAKE RELAY TYPE J-30
30 AMP FUSED BOX
AC/DC RECTIFIER

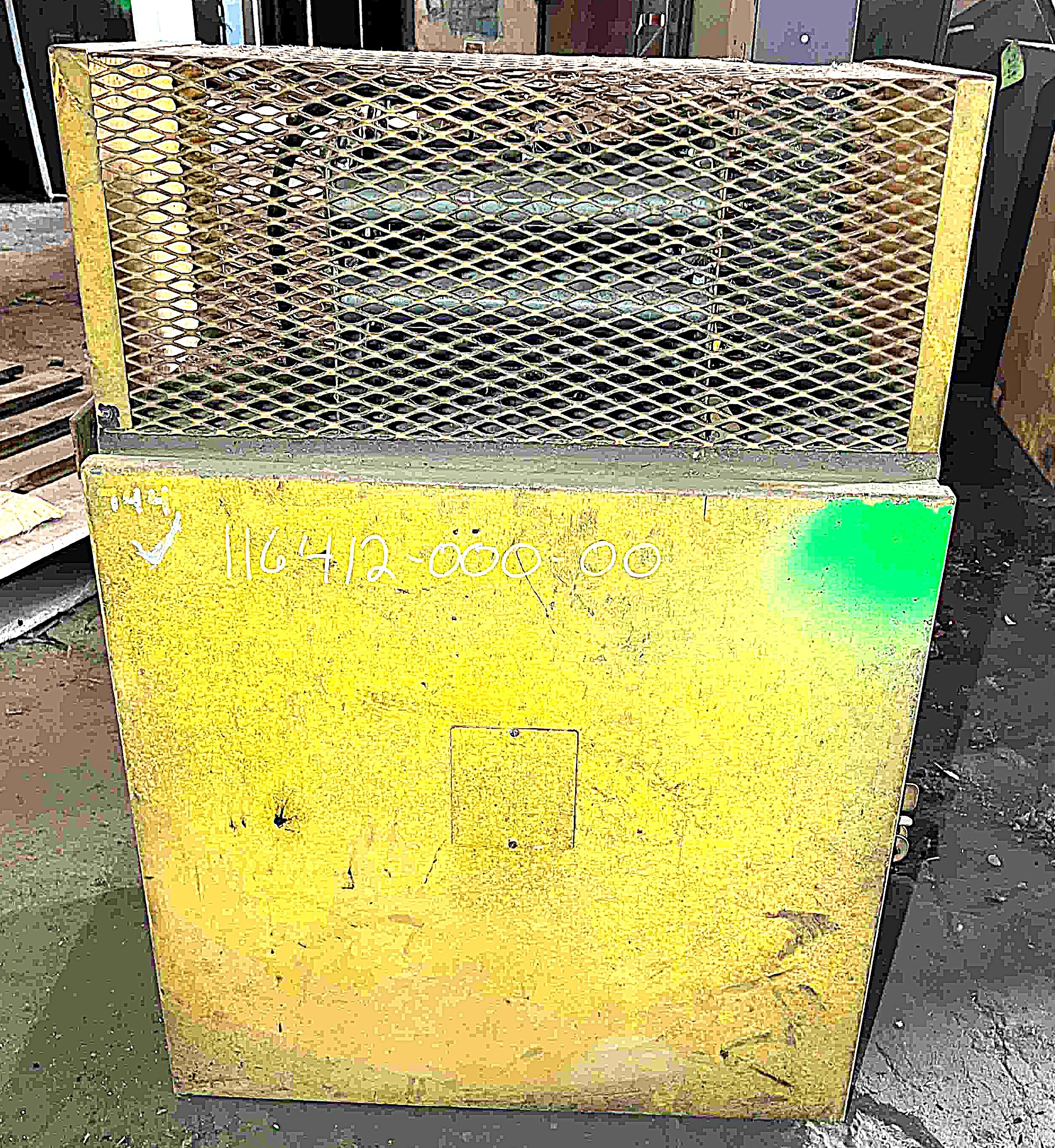

TOP MOUNTED RESISTORS IN ENCLOSURE: 33" H X 23" W X 10" D
INVENTORY ID: 116412-000-00
| INVENTORY ID | 11641200000 |
| TITLE | SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500 |

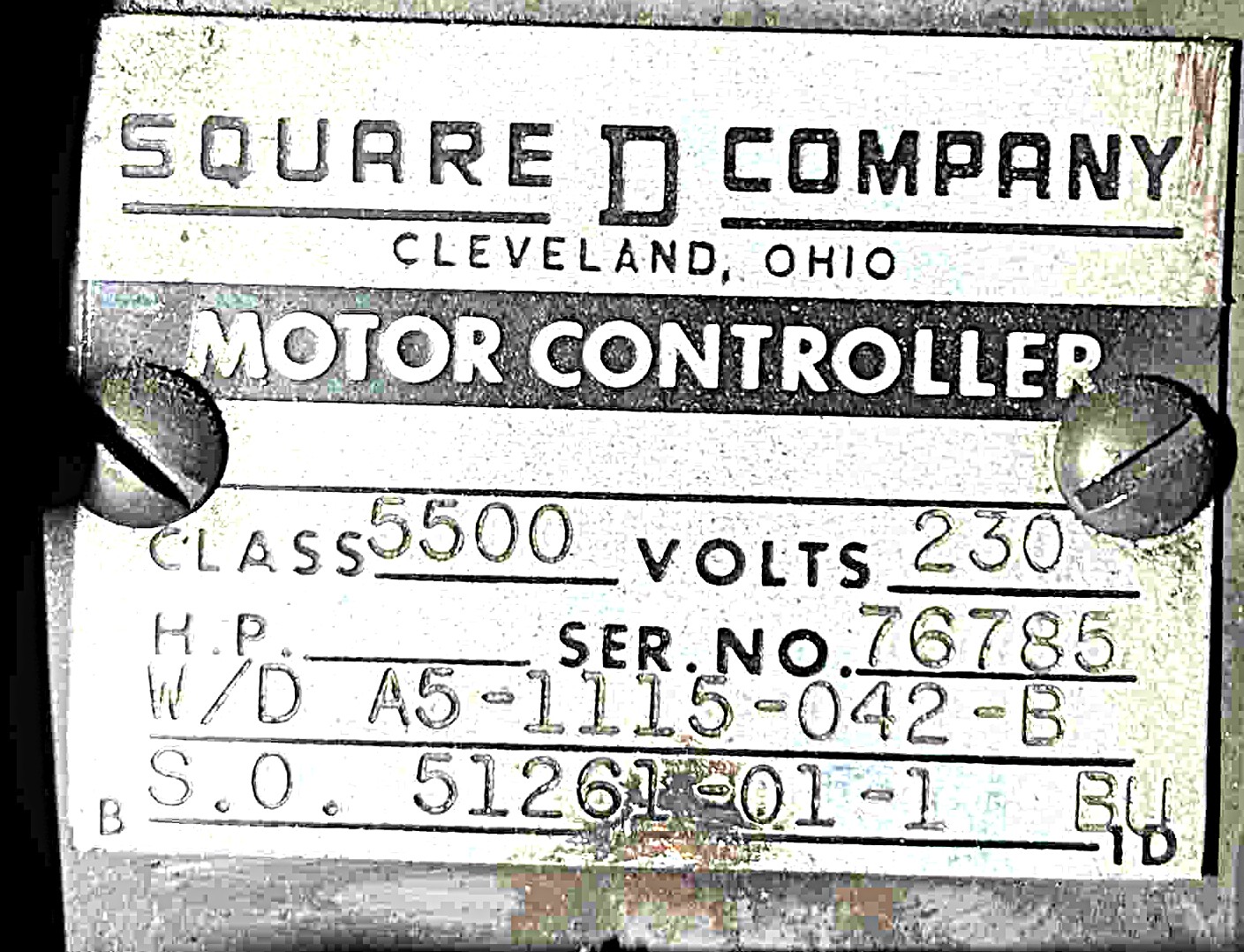

| MANUFACTURER | SQUARE-D |
| TYPE | 5500 |
| VOLTS | 230 |
| ENCLOSURE | TENV |
| CABINET HEIGHT | 34" |
| CABINET WIDTH | 25" |
| CABINET DEPTH | 14" |
| WIRING DIAGRAM | A5-1115-042-B |
