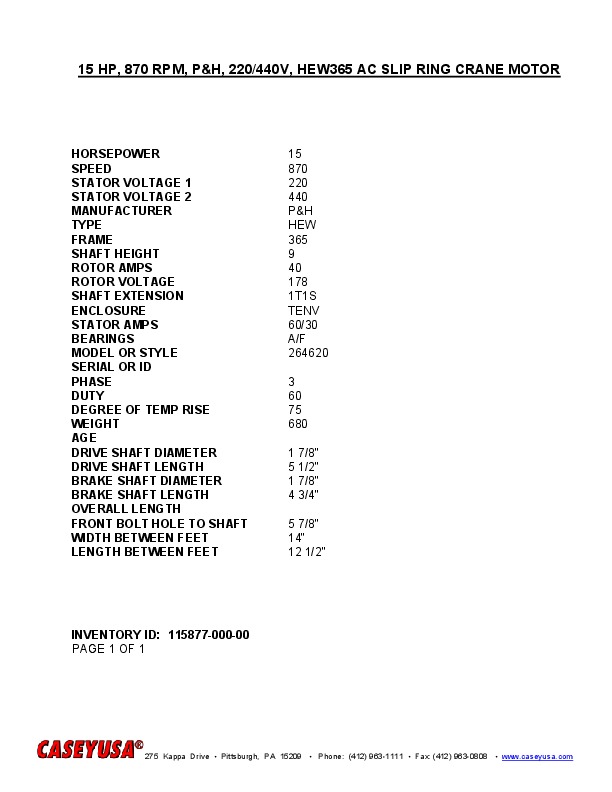

15 HP, 870 RPM, P&H, 220/440V, HEW365 AC SLIP RING CRANE MOTOR
 "11587700000 15 HP, 870 RPM, P&H, 220/440V, HEW365 AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 11587700000 |
| TITLE | 15 HP, 870 RPM, P&H, 220/440V, HEW365 AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 15 |
| SPEED | 870 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 365 |
| SHAFT HEIGHT | 9 |
| ROTOR AMPS | 40 |
| ROTOR VOLTS | 178 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 60/30 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 264620 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 680 |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
| BRAKE SHAFT DIAMETER | 1 7/8" |
| BRAKE SHAFT LENGTH | 4 3/4" |
| FRONT BOLT HOLE TO SHAFT | 5 7/8" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 12 1/2" |
