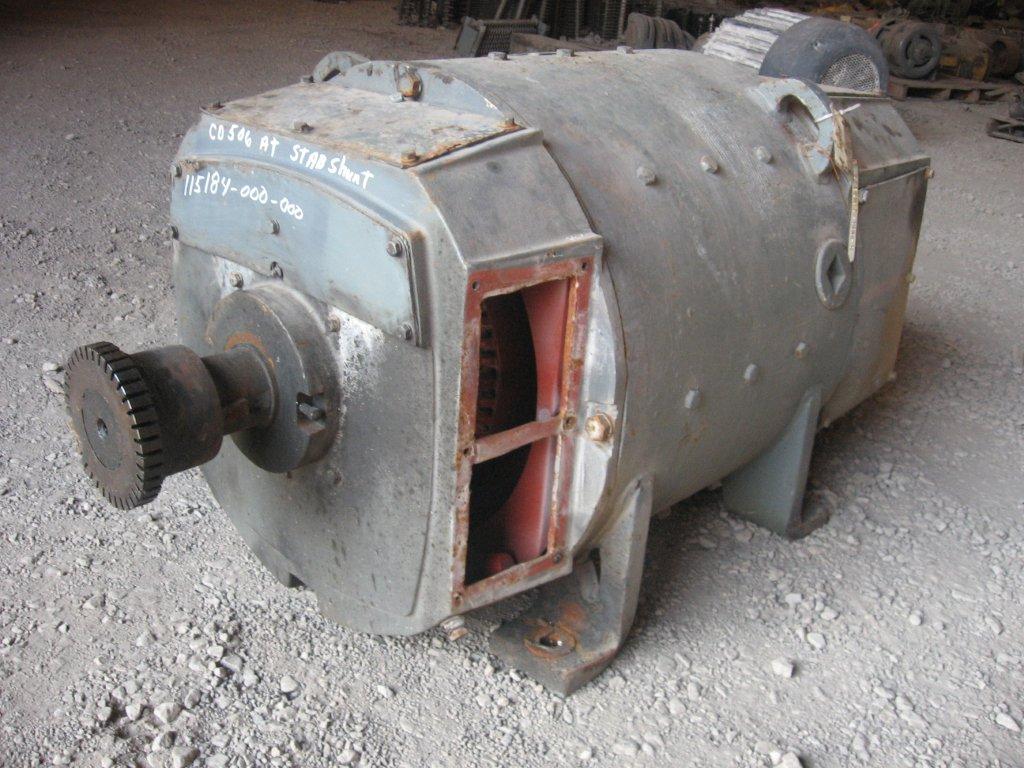

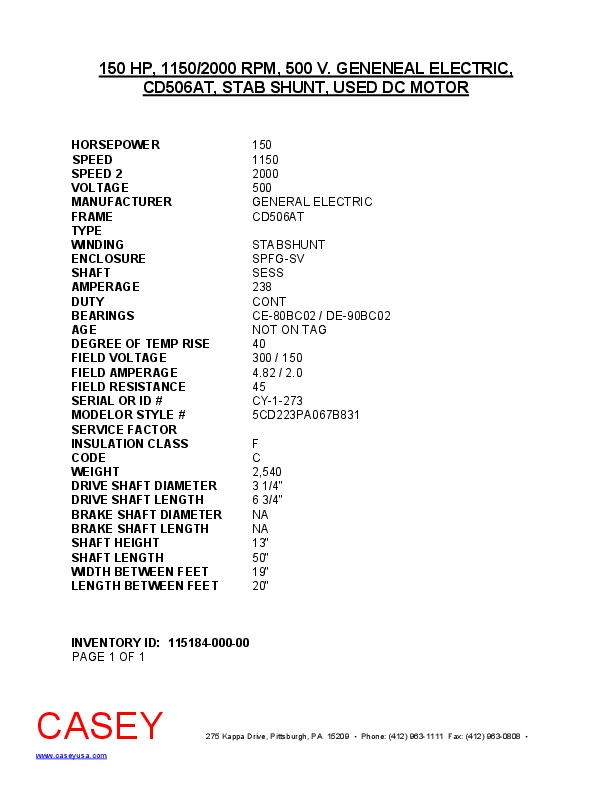

150 HP, 1150/2000 RPM, 500 V. GENERAL ELECTRIC, CD506AT, STAB SHUNT, USED DC MOTOR
 "11518400000 150 HP, 1150/2000 RPM, 500 V. GENERAL ELECTRIC, CD506AT, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 11518400000 |
| TITLE | 150 HP, 1150/2000 RPM, 500 V. GENERAL ELECTRIC, CD506AT, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 150 |
| SPEED | 1150 |
| SPEED 2 | 2000 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 506AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 238 |
| DUTY | CONT |
| BEARINGS | CE-80BC02 / DE-90BC02 |
| YEAR OF MANUFACTURE | NOT ON TAG |
| FIELD VOLTAGE | 300 / 150 |
| FIELD AMPERAGE | 4.82 / 2.0 |
| FIELD RESISTANCE | 45 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | CY-1-273 |
| MODEL NUMBER OR STYLE NUMBER | 5CD223PA067B831 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 2,540 |
| DRIVE SHAFT DIMENSION | 3 1/4" |
| DRIVE SHAFT LENGTH | 6 3/4" |
| BRAKE SHAFT DIAMETER | NA |
| BRAKE SHAFT LENGTH | NA |
| SHAFT HEIGHT | 13" |
| MOTOR LENGTH | 50" |
| WIDTH BETWEEN FEET | 19" |
| LENGTH BETWEEN FEET | 20" |
