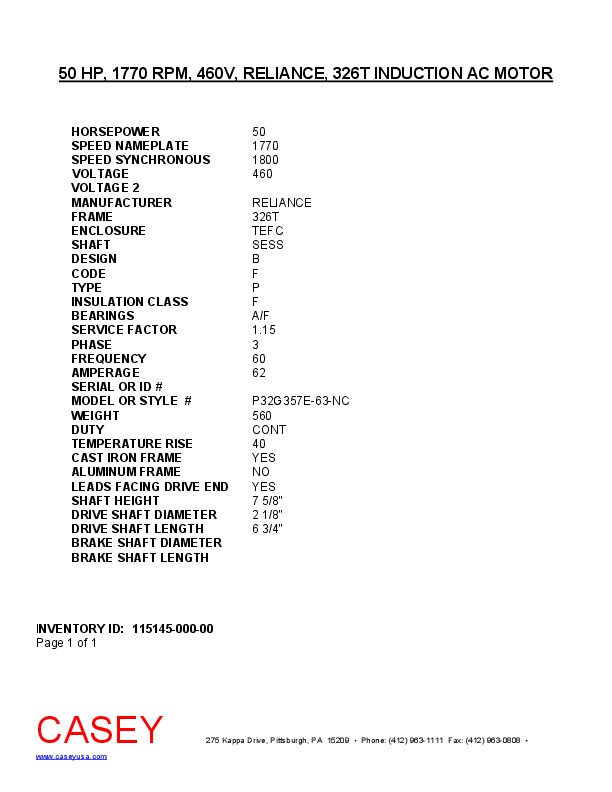

50 HP, 1770 RPM, 460V, RELIANCE, 326T INDUCTION AC MOTOR
| INVENTORY ID | 11514500000 |
| TITLE | 50 HP, 1770 RPM, 460V, RELIANCE, 326T INDUCTION AC MOTOR |
| HORSEPOWER | 50 |
| SPEED NAMEPLATE | 1770 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 326T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 62 |
| MODEL NUMBER OR STYLE NUMBER | P32G357E-63-NC |
| WEIGHT | 560 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 7 5/8" |
| DRIVE SHAFT DIAMETER | 2 1/8" |
| DRIVE SHAFT LENGTH | 6 3/4" |
