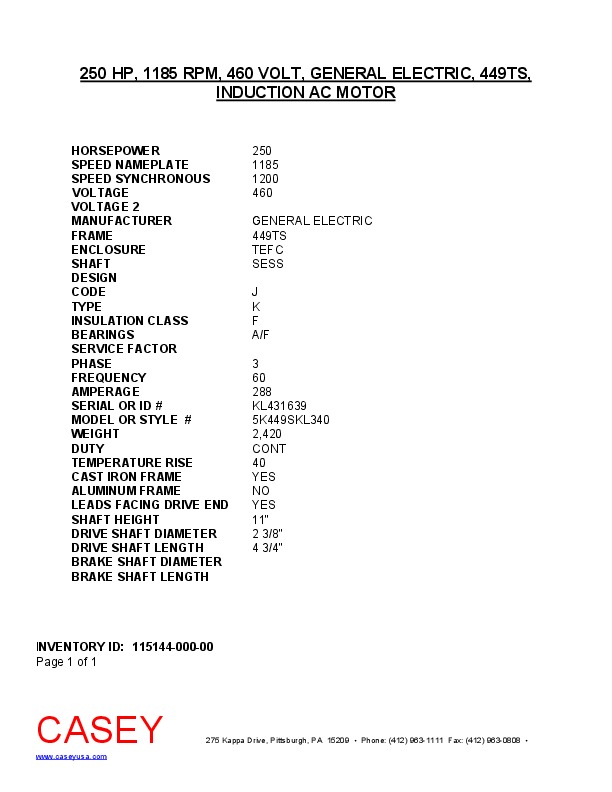

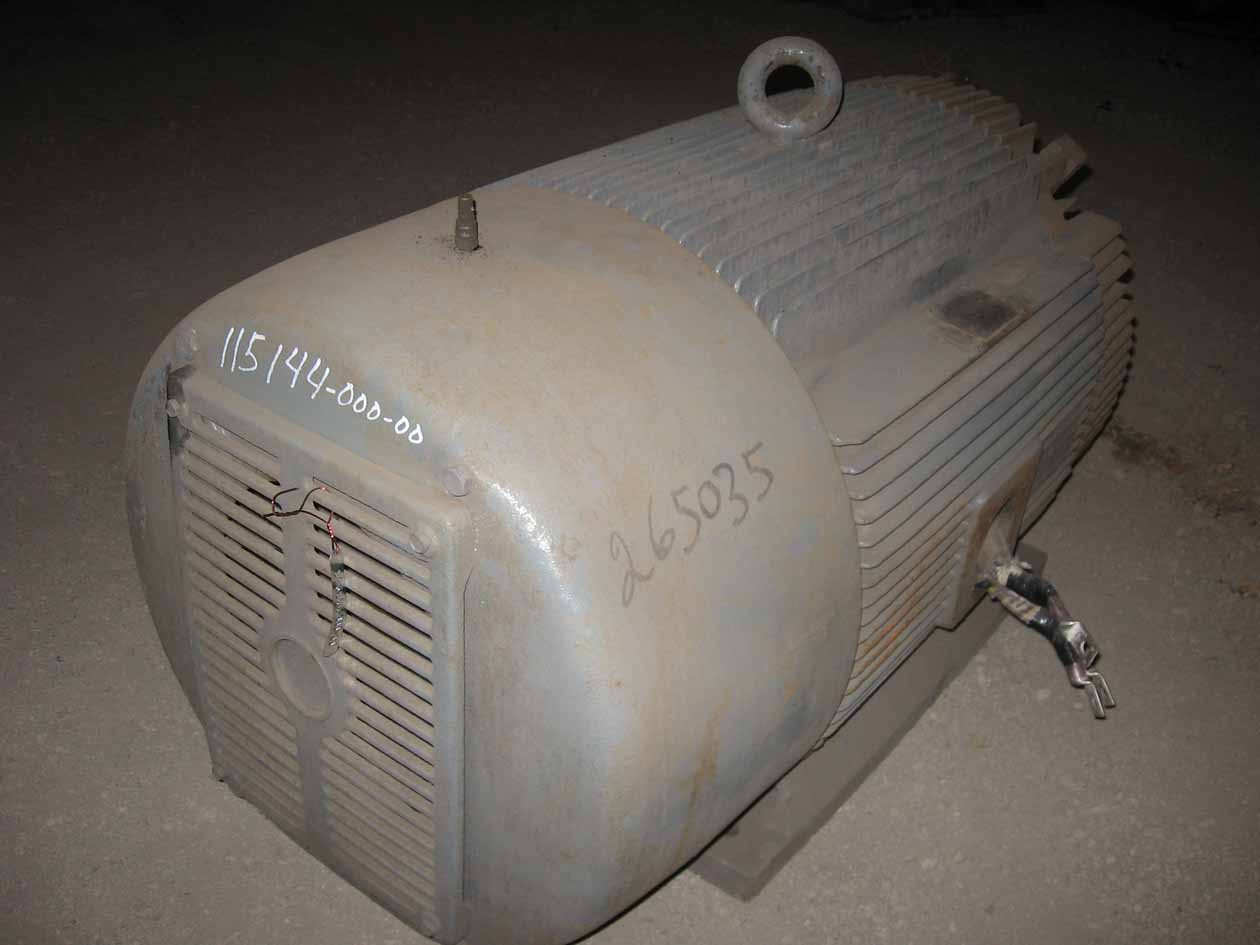

250 HP, 1185 RPM, 460 VOLT, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR
 "11514400000 250 HP, 1185 RPM, 460 VOLT, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR")
| INVENTORY ID | 11514400000 |
| TITLE | 250 HP, 1185 RPM, 460 VOLT, GENERAL ELECTRIC, 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1185 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 449TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| CODE | J |
| TYPE | K |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 288 |
| SERIAL NUMBER OR ID NUMBER | KL431639 |
| MODEL NUMBER OR STYLE NUMBER | 5K449SKL340 |
| WEIGHT | 2,420 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 3/4" |
