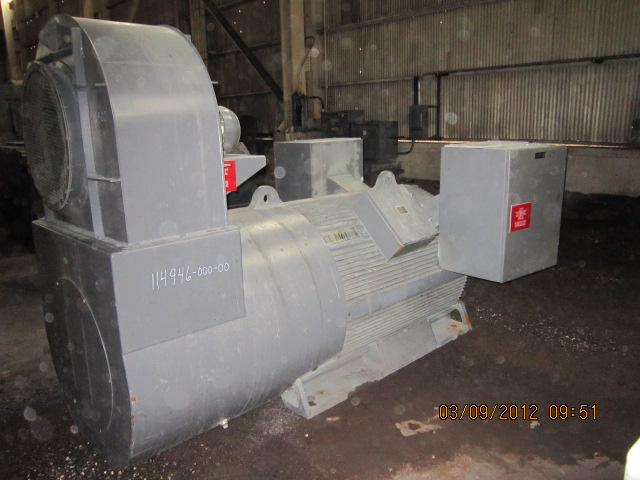

1250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 8011S, INVERTER DUTY AC MOTOR
 "11494600000 1250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 8011S, INVERTER DUTY AC MOTOR")

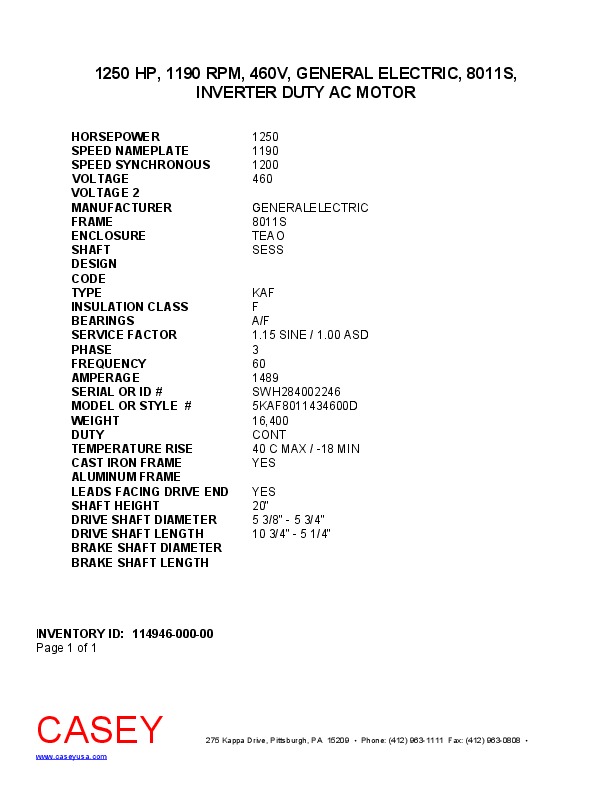

| INVENTORY ID | 11494600000 |
| TITLE | 1250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 8011S, INVERTER DUTY AC MOTOR |
| HORSEPOWER | 1250 |
| SPEED | 1190 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8011S |
| ENCLOSURE | TEAO |
| SHAFT | SESS |
| TYPE | KAF |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 SINE / 1.00 ASD |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 1489 |
| SERIAL NUMBER OR ID NUMBER | SWH284002246 |
| MODEL NUMBER OR STYLE NUMBER | 5KAF8011434600D |
| WEIGHT | 16,400 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 C MAX / -18 MIN |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 20" |
| DRIVE SHAFT DIAMETER | 5 3/8" - 5 3/4" |
| DRIVE SHAFT LENGTH | 10 3/4" - 5 1/4" |
