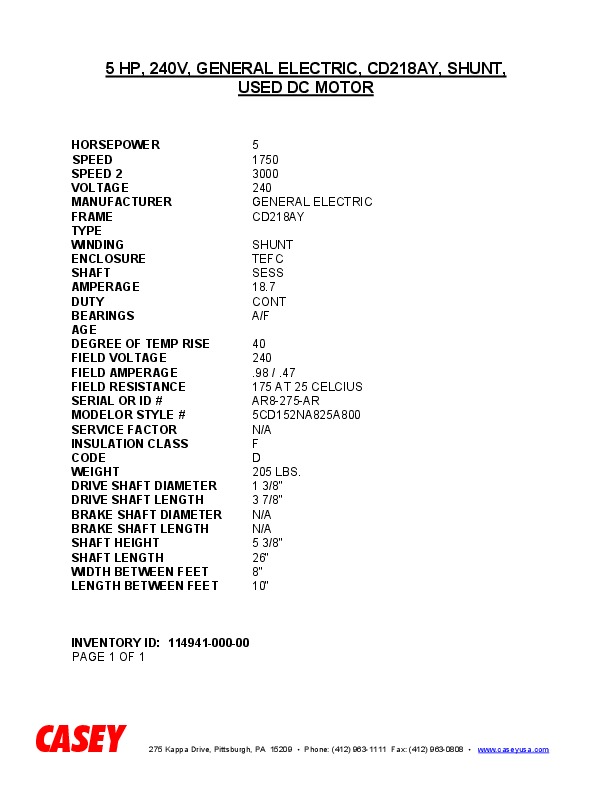

5 HP, 1750/3000 RPM, 240V, GENERAL ELECTRIC, CD218AY, SHUNT, USED DC MOTOR
| INVENTORY ID | 11494100000 |
| TITLE | 5 HP, 1750/3000 RPM, 240V, GENERAL ELECTRIC, CD218AY, SHUNT, USED DC MOTOR |
| HORSEPOWER | 5 |
| SPEED | 1750 |
| SPEED 2 | 3000 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 218AY |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 18.7 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | .98 / .47 |
| FIELD RESISTANCE | 175 AT 25 CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | AR8-275-AR |
| MODEL NUMBER OR STYLE NUMBER | 5CD152NA825A800 |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 205 LBS. |
| DRIVE SHAFT DIMENSION | 1 3/8" |
| DRIVE SHAFT LENGTH | 3 7/8" |
| BRAKE SHAFT DIAMETER | N/A |
| BRAKE SHAFT LENGTH | N/A |
| SHAFT HEIGHT | 5 3/8" |
| SHAFT LENGTH | 26" |
| WIDTH BETWEEN FEET | 8" |
| LENGTH BETWEEN FEET | 10" |
