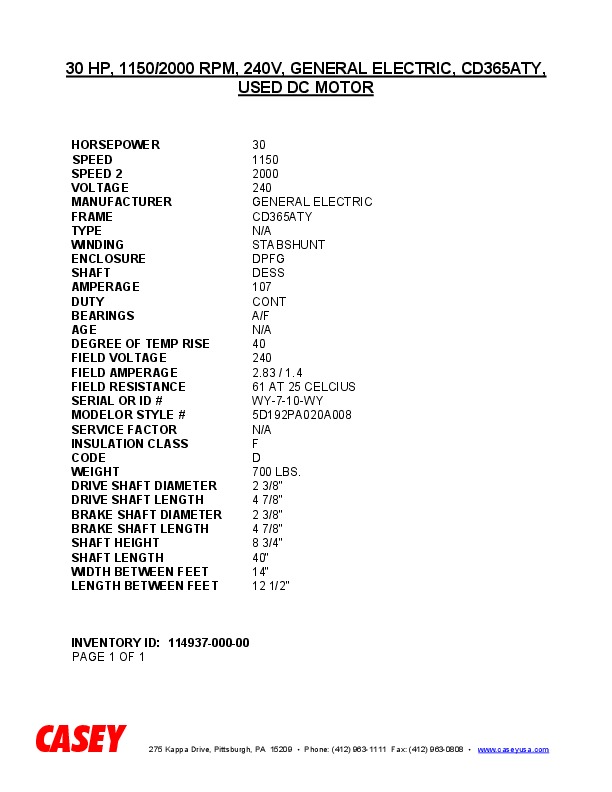

30 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD365ATY, USED DC MOTOR
| INVENTORY ID | 11493700000 |
| TITLE | 30 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD365ATY, USED DC MOTOR |
| HORSEPOWER | 30 |
| SPEED | 1150 |
| SPEED 2 | 2000 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 365ATY |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 107 |
| DUTY | CONT |
| BEARINGS | A/F |
| YEAR OF MANUFACTURE | N/A |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 2.83 / 1.4 |
| FIELD RESISTANCE | 61 AT 25 CELCIUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | WY-7-10-WY |
| MODEL NUMBER OR STYLE NUMBER | 5D192PA020A008 |
| SERVICE FACTOR | N/A |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 700 LBS. |
| DRIVE SHAFT DIMENSION | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 7/8" |
| BRAKE SHAFT DIAMETER | 2 3/8" |
| BRAKE SHAFT LENGTH | 4 7/8" |
| SHAFT HEIGHT | 8 3/4" |
| SHAFT LENGTH | 40" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 12 1/2" |
