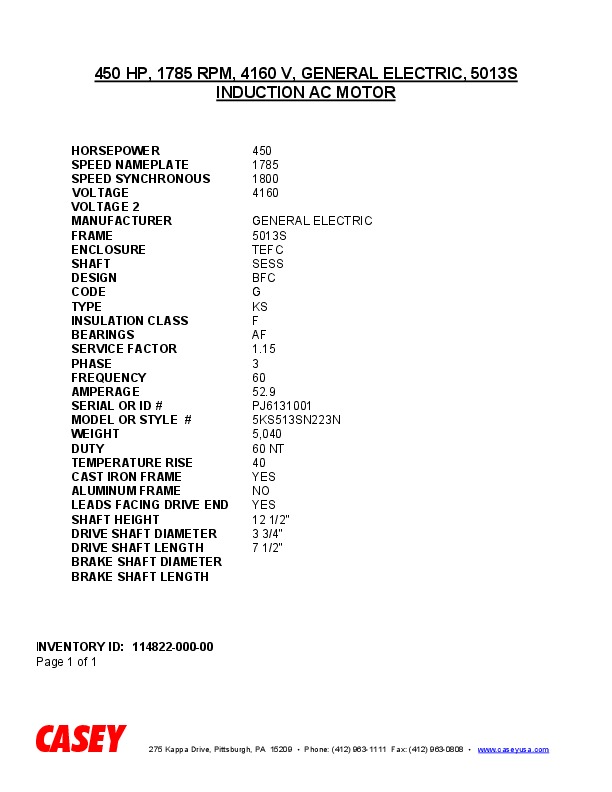

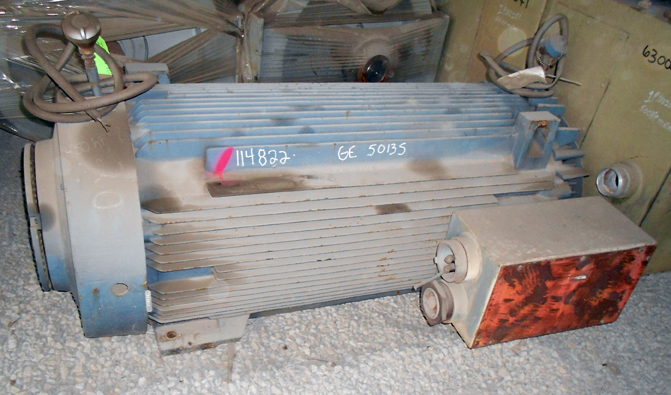

450 HP, 1785 RPM, 4160 V, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR
 "11482200000 450 HP, 1785 RPM, 4160 V, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR")
 "11482200000 450 HP, 1785 RPM, 4160 V, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR")
 "11482200000 450 HP, 1785 RPM, 4160 V, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR")
| INVENTORY ID | 11482200000 |
| TITLE | 450 HP, 1785 RPM, 4160 V, GENERAL ELECTRIC, 5013S, INDUCTION AC MOTOR |
| HORSEPOWER | 450 |
| SPEED NAMEPLATE | 1785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 4160 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 5013S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | BFC |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | AF |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 52.9 |
| SERIAL NUMBER OR ID NUMBER | PJ6131001 |
| MODEL NUMBER OR STYLE NUMBER | 5KS513SN223N |
| WEIGHT | 5,040 |
| DUTY | 60 NT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 12 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/4" |
| DRIVE SHAFT LENGTH | 7 1/2" |
