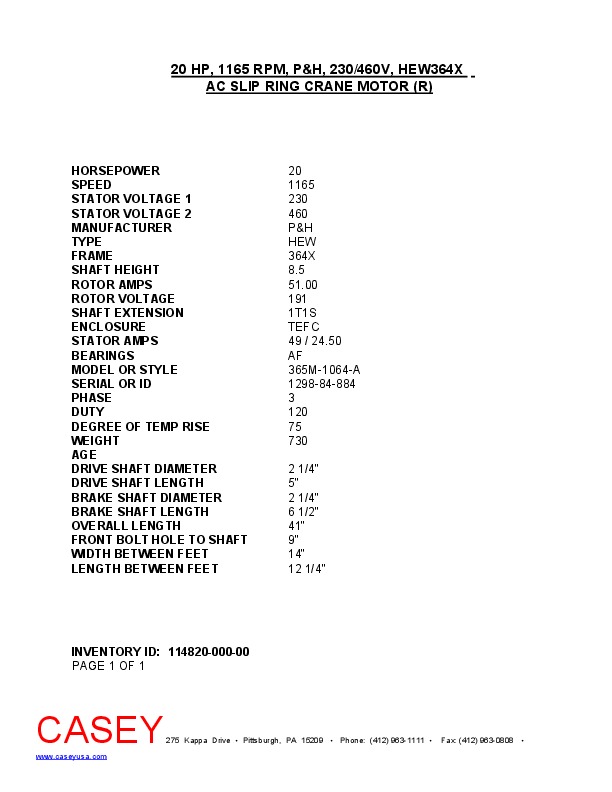

20 HP, 1165 RPM, P&H, 230/460V, HEW364X AC SLIP RING CRANE MOTOR (R)
| INVENTORY ID | 11482000000 |
| TITLE | 20 HP, 1165 RPM, P&H, 230/460V, HEW364X AC SLIP RING CRANE MOTOR (R) |
| HORSEPOWER | 20 |
| SPEED | 1165 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 364X |
| SHAFT HEIGHT | 8.5 |
| ROTOR AMPS | 51.00 |
| ROTOR VOLTS | 191 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TEFC |
| STATOR AMPS | 49 / 24.50 |
| BEARINGS | AF |
| MODEL NUMBER OR STYLE NUMBER | 365M-1064-A |
| SERIAL NUMBER OR ID NUMBER | 1298-84-884 |
| PHASE | 3 |
| DUTY (MINUTES) | 120 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 730 |
| DRIVE SHAFT DIAMETER | 2 1/4" |
| DRIVE SHAFT LENGTH | 5" |
| BRAKE SHAFT DIAMETER | 2 1/4" |
| BRAKE SHAFT LENGTH | 6 1/2" |
| OVERALL LENGTH | 41" |
| FRONT BOLT HOLE TO SHAFT | 9" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 12 1/4" |
