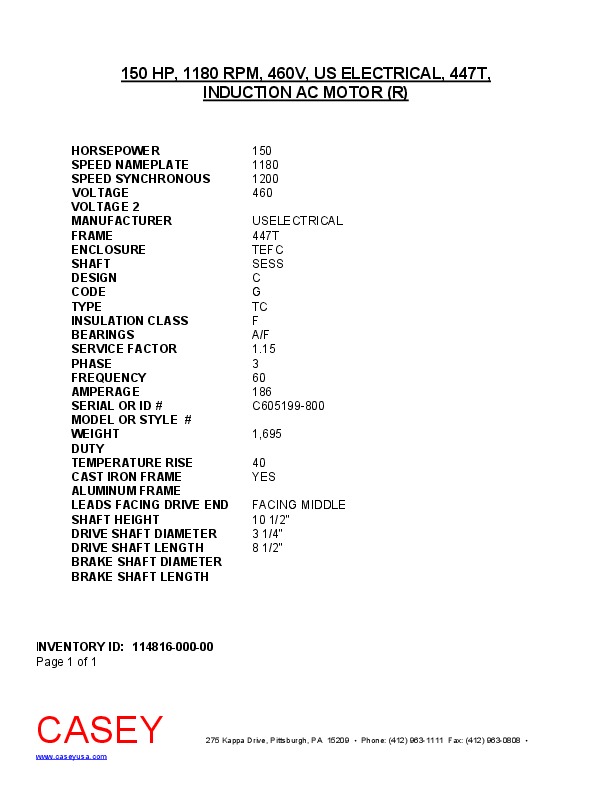

150 HP, 1180 RPM, 460V, US ELECTRICAL, 447T, INDUCTION AC MOTOR (R)
 "11481600000 150 HP, 1180 RPM, 460V, US ELECTRICAL, 447T, INDUCTION AC MOTOR (R)")
| INVENTORY ID | 11481600000 |
| TITLE | 150 HP, 1180 RPM, 460V, US ELECTRICAL, 447T, INDUCTION AC MOTOR (R) |
| HORSEPOWER | 150 |
| SPEED NAMEPLATE | 1180 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | USELECTRICAL |
| FRAME | 447T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | C |
| CODE | G |
| TYPE | TC |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 186 |
| SERIAL NUMBER OR ID NUMBER | C605199-800 |
| WEIGHT | 1,695 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | FACING MIDDLE |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 1/4" |
| DRIVE SHAFT LENGTH | 8 1/2" |
