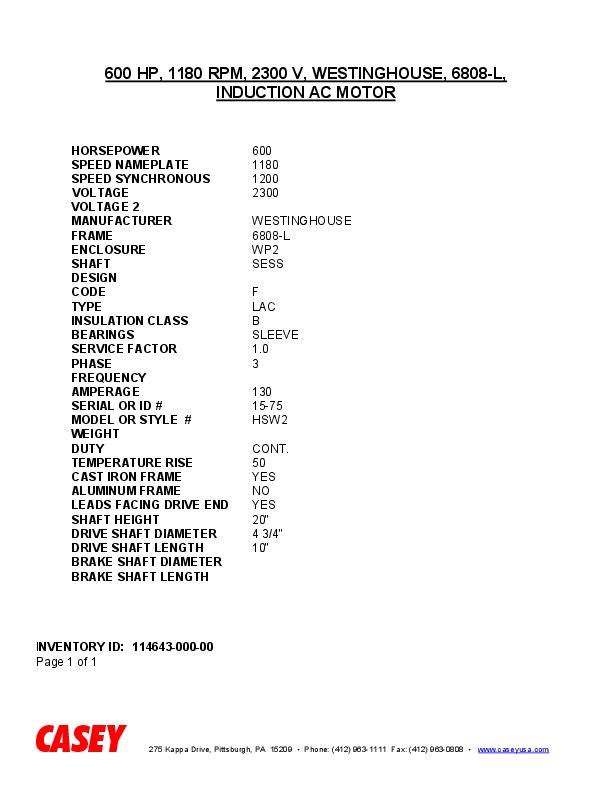

600 HP, 1180 RPM, 2300 V, WESTINGHOUSE, 6808L, INDUCTION AC MOTOR
| INVENTORY ID | 11464300000 |
| TITLE | 600 HP, 1180 RPM, 2300 V, WESTINGHOUSE, 6808L, INDUCTION AC MOTOR |
| HORSEPOWER | 600 |
| SPEED NAMEPLATE | 1180 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 2300 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 6808-L |
| ENCLOSURE | WP2 |
| SHAFT | SESS |
| CODE | F |
| TYPE | LAC |
| INSULATION CLASS | B |
| BEARINGS | SLEEVE |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| AMPERAGE | 130 |
| SERIAL NUMBER OR ID NUMBER | 15-75 |
| MODEL NUMBER OR STYLE NUMBER | HSW2 |
| DUTY | CONT. |
| TEMPERATURE RISE | 50 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 20" |
| DRIVE SHAFT DIAMETER | 4 3/4" |
| DRIVE SHAFT LENGTH | 10" |
