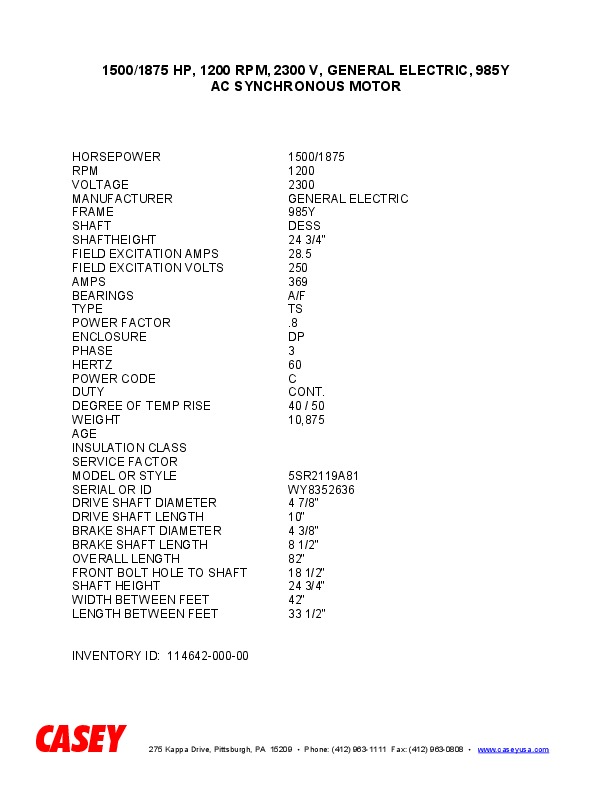

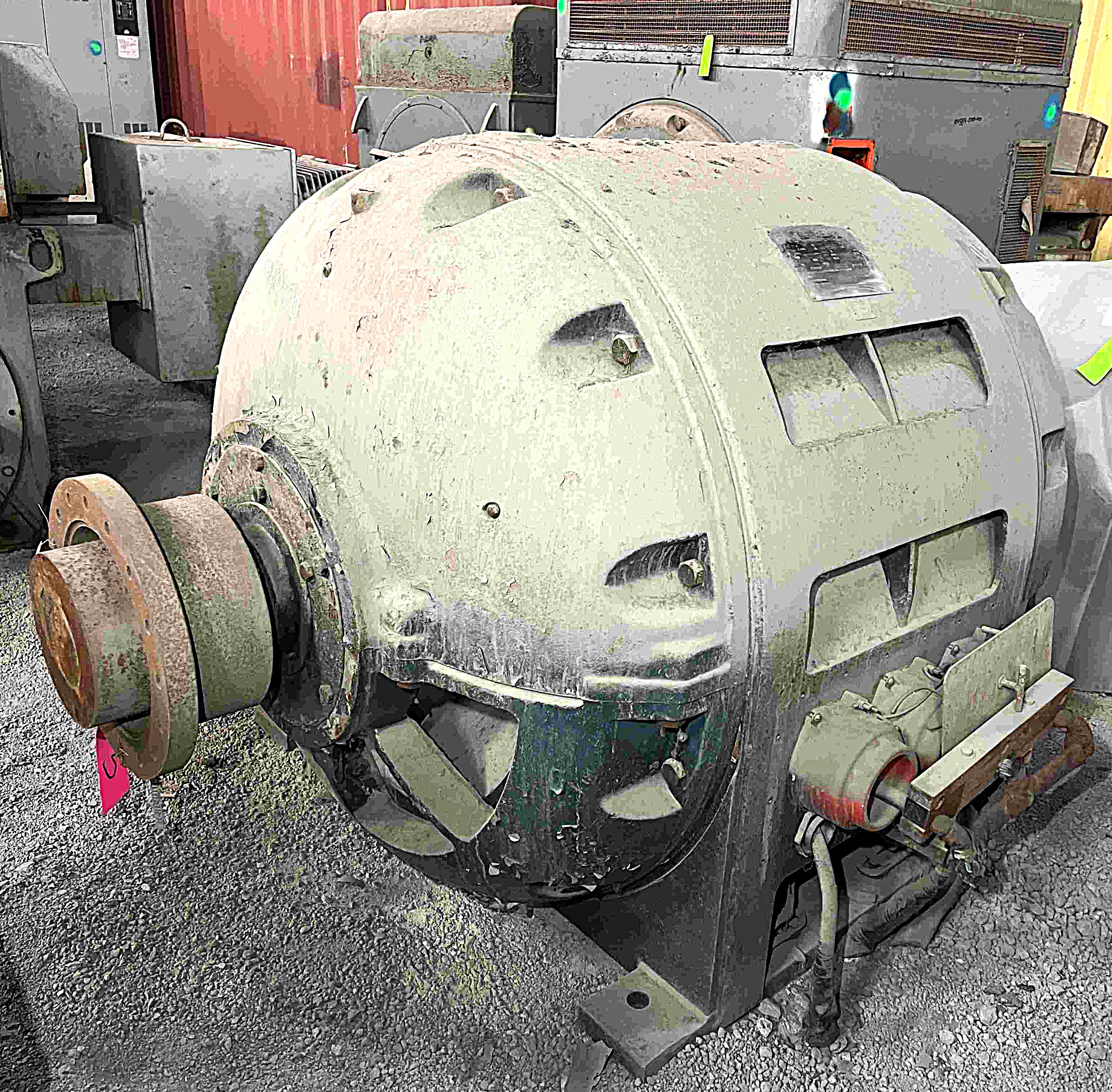

1500/1875 HP, 1200 RPM, 2300 V, GENERAL ELECTRIC, AC SYNCHRONOUS MOTOR
 "11464200000 1500/1875 HP, 1200 RPM, 2300 V, GENERAL ELECTRIC, AC SYNCHRONOUS MOTOR")
 "11464200000 1500/1875 HP, 1200 RPM, 2300 V, GENERAL ELECTRIC, AC SYNCHRONOUS MOTOR")
| INVENTORY ID | 11464200000 |
| TITLE | 1500/1875 HP, 1200 RPM, 2300 V, GENERAL ELECTRIC, AC SYNCHRONOUS MOTOR |
| HORSEPOWER | 1500/1875 |
| RPM | 1200 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 985Y |
| SHAFT | DESS |
| SHAFT HEIGHT | 24 3/4" |
| FIELD EXCITATION AMPS | 28.5 |
| FIELD EXCITATION VOLTS | 250 |
| AMPERAGE | 369 |
| BEARINGS | A/F |
| TYPE | TS |
| POWER FACTOR | .8 |
| ENCLOSURE | DP |
| PHASE | 3 |
| HERTZ | 60 |
| POWER CODE | C |
| MODEL NUMBER OR STYLE NUMBER | 5SR2119A81 |
| DUTY | CONT. |
| SERIAL NUMBER OR ID NUMBER | WY8352636 |
| DEGREE TEMP RISE | 40 / 50 |
| WEIGHT | 10,875 |
| DRIVE SHAFT DIAMETER | 4 7/8" |
| DRIVE SHAFT LENGTH | 10" |
| BRAKE SHAFT DIAMETER | 4 3/8" |
| BRAKE SHAFT LENGTH | 8 1/2" |
| OVERALL LENGTH | 82" |
| FRONT BOLT HOLE TO SHAFT | 18 1/2" |
| WIDTH BETWEEN FEET | 42" |
| LENGTH BETWEEN FEET | 33 1/2" |
