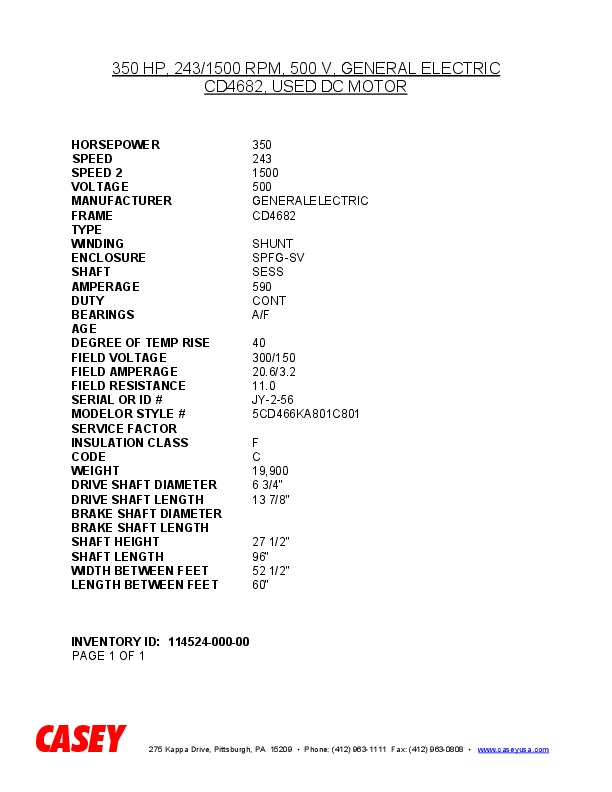

QTY (2) 350 HP, 243/1500 RPM, 500 V, GENERAL ELECTRIC, CD4682, USED DC MOTOR
| INVENTORY ID | 11452400000 |
| TITLE | QTY (2) 350 HP, 243/1500 RPM, 500 V, GENERAL ELECTRIC, CD4682, USED DC MOTOR |
| HORSEPOWER | 350 |
| SPEED | 243 |
| SPEED 2 | 1500 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 4682 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 590 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 20.6/3.2 |
| FIELD RESISTANCE | 11.0 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | JY-2-56 |
| MODEL NUMBER OR STYLE NUMBER | 5CD466KA801C801 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 19,900 |
| DRIVE SHAFT DIMENSION | 6 3/4" |
| DRIVE SHAFT LENGTH | 13 7/8" |
| SHAFT HEIGHT | 27 1/2" |
| MOTOR LENGTH | 96" |
| WIDTH BETWEEN FEET | 52 1/2" |
| LENGTH BETWEEN FEET | 60" |
