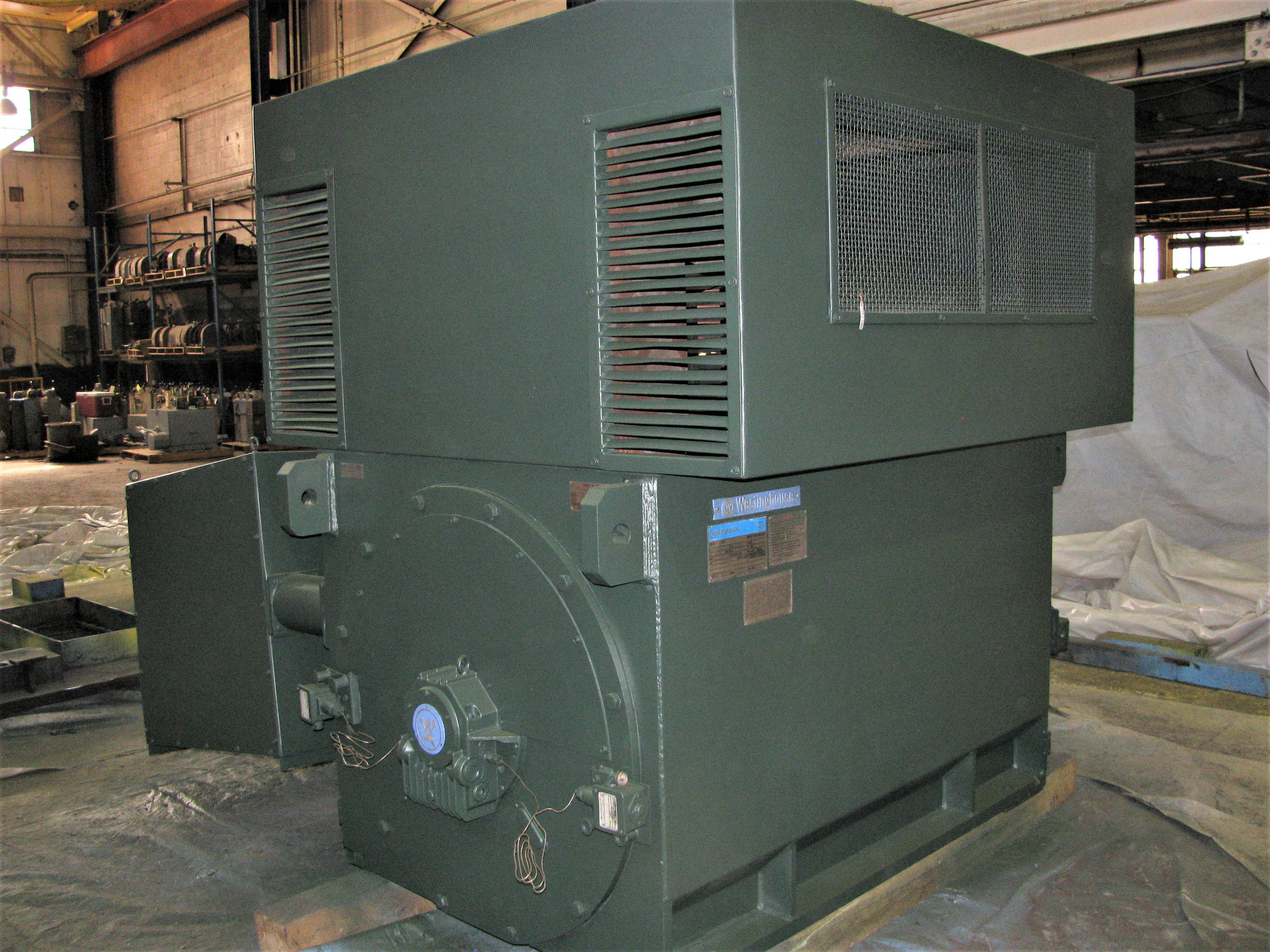

2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR
 "11432700000 2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR")
 "11432700000 2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR")
 "11432700000 2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR")
 "11432700000 2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR")

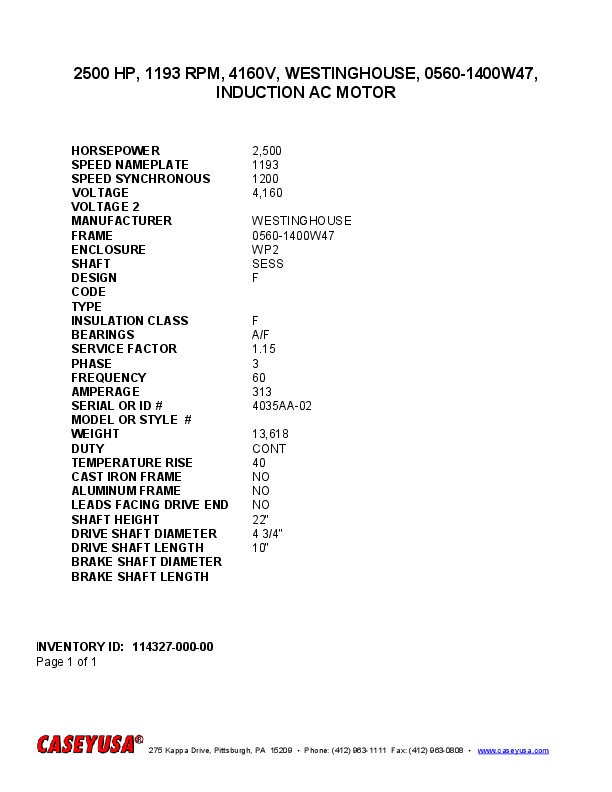

| INVENTORY ID | 11432700000 |
| TITLE | 2500 HP, 1193 RPM, 4160V, WESTINGHOUSE, 0560-1400W47, INDUCTION AC MOTOR |
| HORSEPOWER | 2,500 |
| SPEED NAMEPLATE | 1193 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 4,160 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 0560-1400W47 |
| ENCLOSURE | WP2 |
| SHAFT | SESS |
| DESIGN | F |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 313 |
| SERIAL NUMBER OR ID NUMBER | 4035AA-02 |
| WEIGHT | 13,618 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | NO |
| LEADS FACING DRIVE END | NO |
| SHAFT HEIGHT | 22" |
| DRIVE SHAFT DIAMETER | 4 3/4" |
| DRIVE SHAFT LENGTH | 10" |
