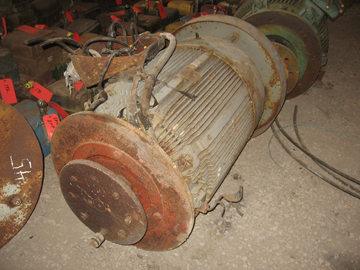

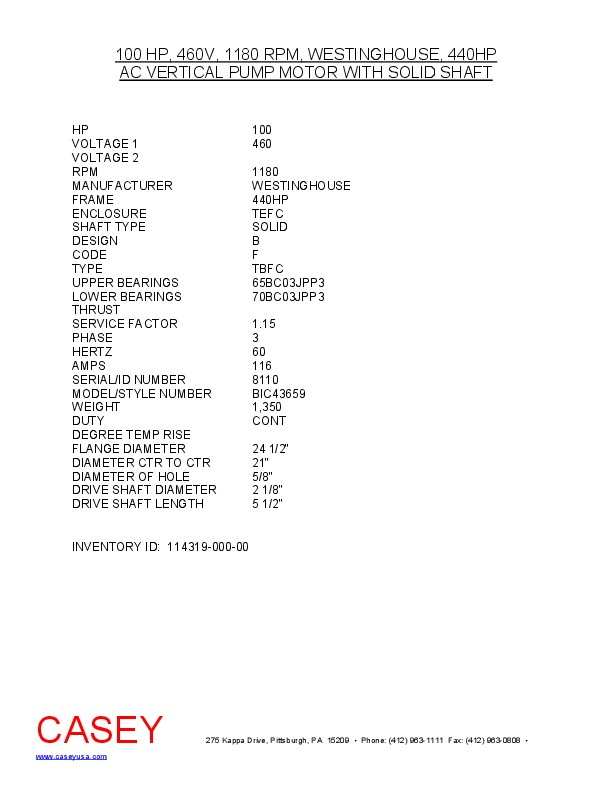

100 HP, 1180 RPM, 460V, WESTINGHOUSE, 440HP AC VERTICAL PUMP MOTOR WITH SOLID SHAFT
 "11431900000 100 HP, 1180 RPM, 460V, WESTINGHOUSE, 440HP AC VERTICAL PUMP MOTOR WITH SOLID SHAFT")
| INVENTORY ID | 11431900000 |
| TITLE | 100 HP, 1180 RPM, 460V, WESTINGHOUSE, 440HP AC VERTICAL PUMP MOTOR WITH SOLID SHAFT |
| HP | 100 |
| RPM | 1180 |
| VOLTAGE 1 | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 440HP |
| ENCLOSURE | TEFC |
| SHAFT TYPE | SOLID |
| DESIGN | B |
| CODE | F |
| TYPE | TBFC |
| UPPER BEARINGS | 65BC03JPP3 |
| LOWER BEARINGS | 70BC03JPP3 |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 116 |
| SERIAL/ID NUMBER | 8110 |
| MODEL/STYLE NUMBER | BIC43659 |
| WEIGHT | 1,350 |
| DUTY | CONT |
| FLANGE DIAMETER | 24 1/2" |
| DIAMETER CTR TO CTR | 21" |
| DIAMETER OF HOLE | 5/8" |
| DRIVE SHAFT DIAMETER | 2 1/8" |
| DRIVE SHAFT LENGTH | 5 1/2" |
