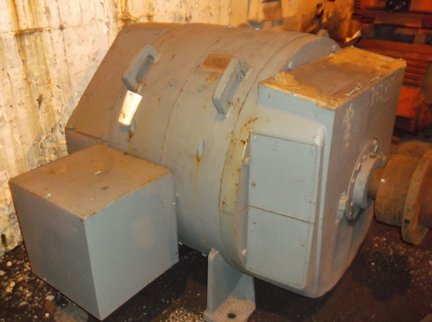

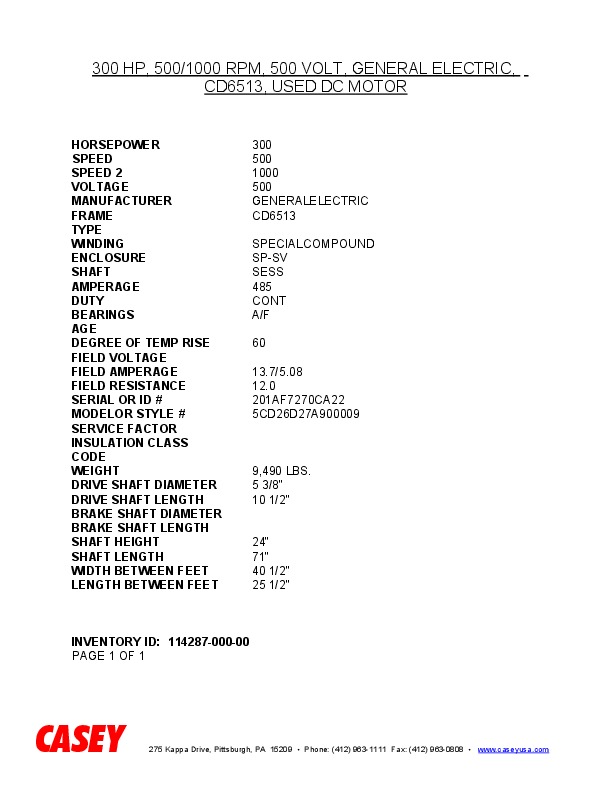

300 HP, 500/1000 RPM, 500 VOLT, GENERAL ELECTRIC, CD6513, USED DC MOTOR
 "11428700000 300 HP, 500/1000 RPM, 500 VOLT, GENERAL ELECTRIC, CD6513, USED DC MOTOR")
 "11428700000 300 HP, 500/1000 RPM, 500 VOLT, GENERAL ELECTRIC, CD6513, USED DC MOTOR")
| INVENTORY ID | 11428700000 |
| TITLE | 300 HP, 500/1000 RPM, 500 VOLT, GENERAL ELECTRIC, CD6513, USED DC MOTOR |
| HORSEPOWER | 300 |
| SPEED | 500 |
| SPEED 2 | 1000 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 6513 |
| TYPE | CD |
| WINDING | SPECIALCOMPOUND |
| ENCLOSURE | SP-SV |
| SHAFT | SESS |
| AMPERAGE | 485 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 13.7/5.08 |
| FIELD RESISTANCE | 12.0 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | 201AF7270CA22 |
| MODEL NUMBER OR STYLE NUMBER | 5CD26D27A900009 |
| WEIGHT | 9,490 LBS. |
| DRIVE SHAFT DIMENSION | 5 3/8" |
| DRIVE SHAFT LENGTH | 10 1/2" |
| SHAFT HEIGHT | 24" |
| MOTOR LENGTH | 71" |
| WIDTH BETWEEN FEET | 40 1/2" |
| LENGTH BETWEEN FEET | 25 1/2" |
