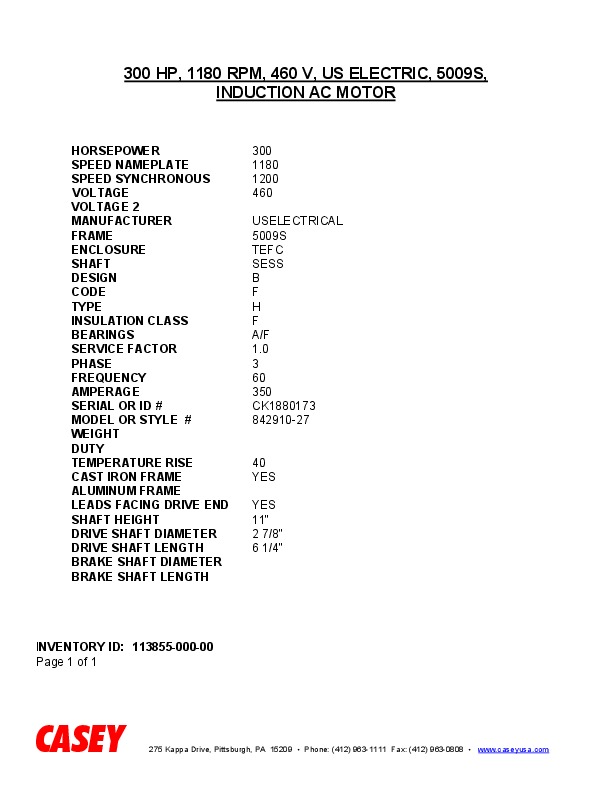

300 HP, 1180 RPM, 460 V, US ELECTRIC, 5009S, INDUCTION AC MOTOR
 "11385500000 300 HP, 1180 RPM, 460 V, US ELECTRIC, 5009S, INDUCTION AC MOTOR")
| INVENTORY ID | 11385500000 |
| TITLE | 300 HP, 1180 RPM, 460 V, US ELECTRIC, 5009S, INDUCTION AC MOTOR |
| HORSEPOWER | 300 |
| SPEED NAMEPLATE | 1180 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | USELECTRICAL |
| FRAME | 5009S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | H |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 350 |
| SERIAL NUMBER OR ID NUMBER | CK1880173 |
| MODEL NUMBER OR STYLE NUMBER | 842910-27 |
| WEIGHT | 3,000 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 2 7/8" |
| DRIVE SHAFT LENGTH | 6 1/4" |
