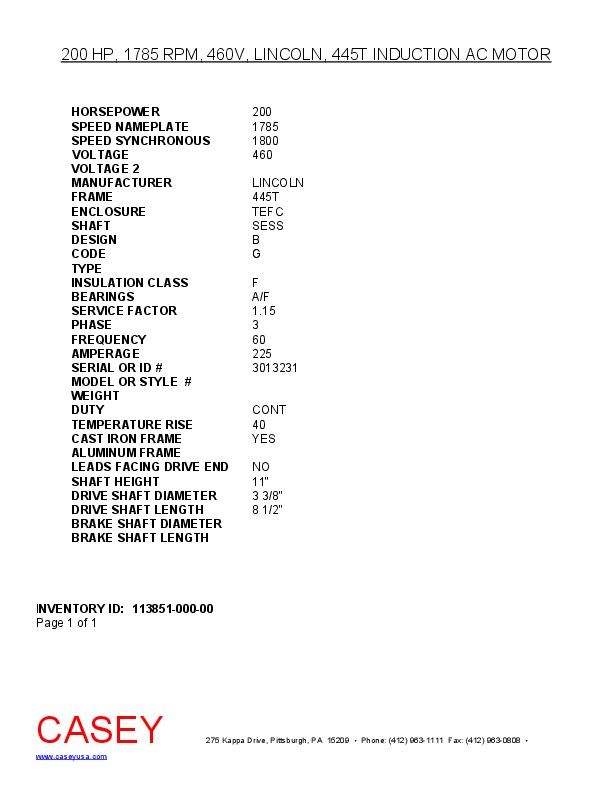

200 HP, 1785 RPM, 460V, LINCOLN, 445T INDUCTION AC MOTOR
 "11385100000 200 HP, 1785 RPM, 460V, LINCOLN, 445T INDUCTION AC MOTOR")
| INVENTORY ID | 11385100000 |
| TITLE | 200 HP, 1785 RPM, 460V, LINCOLN, 445T INDUCTION AC MOTOR |
| HORSEPOWER | 200 |
| SPEED NAMEPLATE | 1785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | LINCOLN |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 225 |
| SERIAL NUMBER OR ID NUMBER | 3013231 |
| WEIGHT | 1,728 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | NO |
| SHAFT HEIGHT | 11" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
