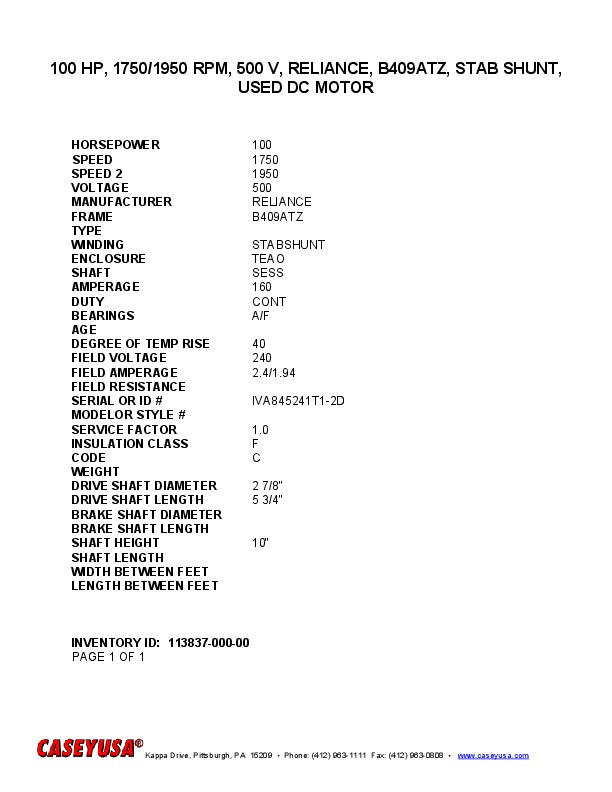

QTY (2) 100 HP, 1750/1950 RPM, 500 V, RELIANCE, B409ATZ, STAB SHUNT, USED DC MOTOR
 "11383700000 QTY (2) 100 HP, 1750/1950 RPM, 500 V, RELIANCE, B409ATZ, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 11383700000 |
| TITLE | QTY (2) 100 HP, 1750/1950 RPM, 500 V, RELIANCE, B409ATZ, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 100 |
| SPEED | 1750 |
| SPEED 2 | 1950 |
| VOLTAGE | 500 |
| MANUFACTURER | RELIANCE |
| FRAME | 409ATZ |
| WINDING | STABSHUNT |
| ENCLOSURE | TEAO |
| SHAFT | SESS |
| AMPERAGE | 160 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 2.4/1.94 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | IVA845241T1-2D |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 2 7/8" |
| DRIVE SHAFT LENGTH | 5 3/4" |
| SHAFT HEIGHT | 10" |
