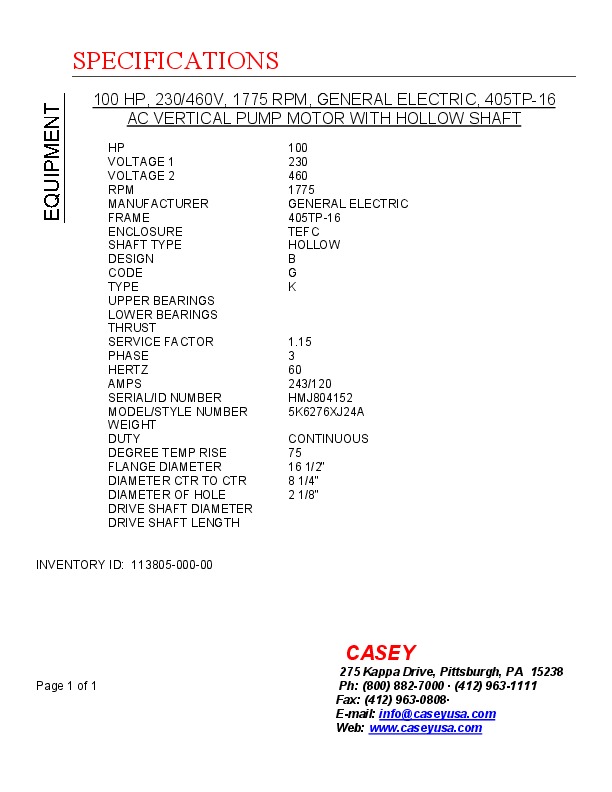

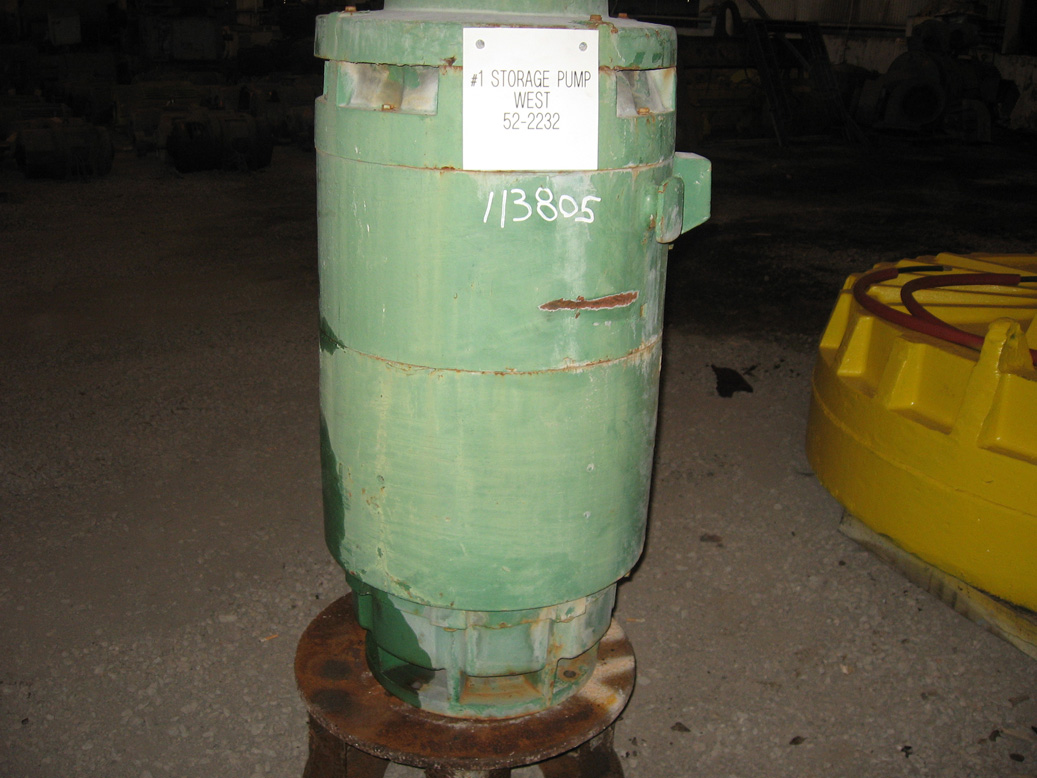

100 HP, 1775 RPM, GENERAL ELECTRIC, 405TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT
 "11380500000 100 HP, 1775 RPM, GENERAL ELECTRIC, 405TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT")
| INVENTORY ID | 11380500000 |
| TITLE | 100 HP, 1775 RPM, GENERAL ELECTRIC, 405TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT |
| HP | 100 |
| RPM | 1775 |
| VOLTAGE 2 | 460 |
| VOLTAGE 1 | 230 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 405TP-16 |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 243/120 |
| SERIAL/ID NUMBER | HMJ804152 |
| MODEL/STYLE NUMBER | 5K6276XJ24A |
| WEIGHT | 1200 |
| DUTY | CONTINUOUS |
| DEGREE TEMP RISE | 75 |
| FLANGE DIAMETER | 16 1/2" |
| DIAMETER CTR TO CTR | 8 1/4" |
| DIAMETER OF HOLE | 2 1/8" |
