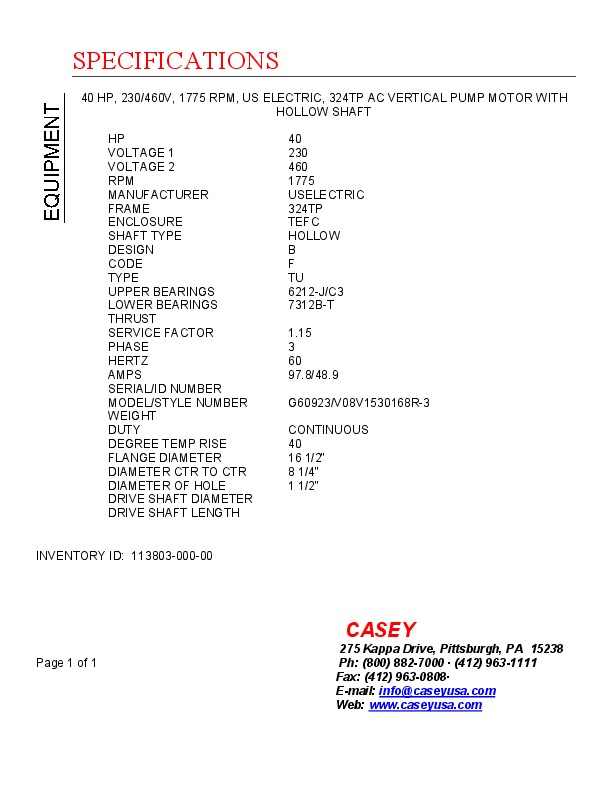

40 HP, 1775 RPM, 230/460V, US ELECTRIC, 324TP AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT
| INVENTORY ID | 11380300000 |
| TITLE | 40 HP, 1775 RPM, 230/460V, US ELECTRIC, 324TP AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT |
| HP | 40 |
| RPM | 1775 |
| VOLTAGE 2 | 460 |
| VOLTAGE 1 | 230 |
| MANUFACTURER | USELECTRIC |
| FRAME | 324TP |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW |
| DESIGN | B |
| CODE | F |
| TYPE | TU |
| UPPER BEARINGS | 6212-J/C3 |
| LOWER BEARINGS | 7312B-T |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 97.8/48.9 |
| MODEL/STYLE NUMBER | G60923/V08V1530168R-3 |
| WEIGHT | 600 |
| DUTY | CONTINUOUS |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 16 1/2" |
| DIAMETER CTR TO CTR | 8 1/4" |
| DIAMETER OF HOLE | 1 1/2" |
