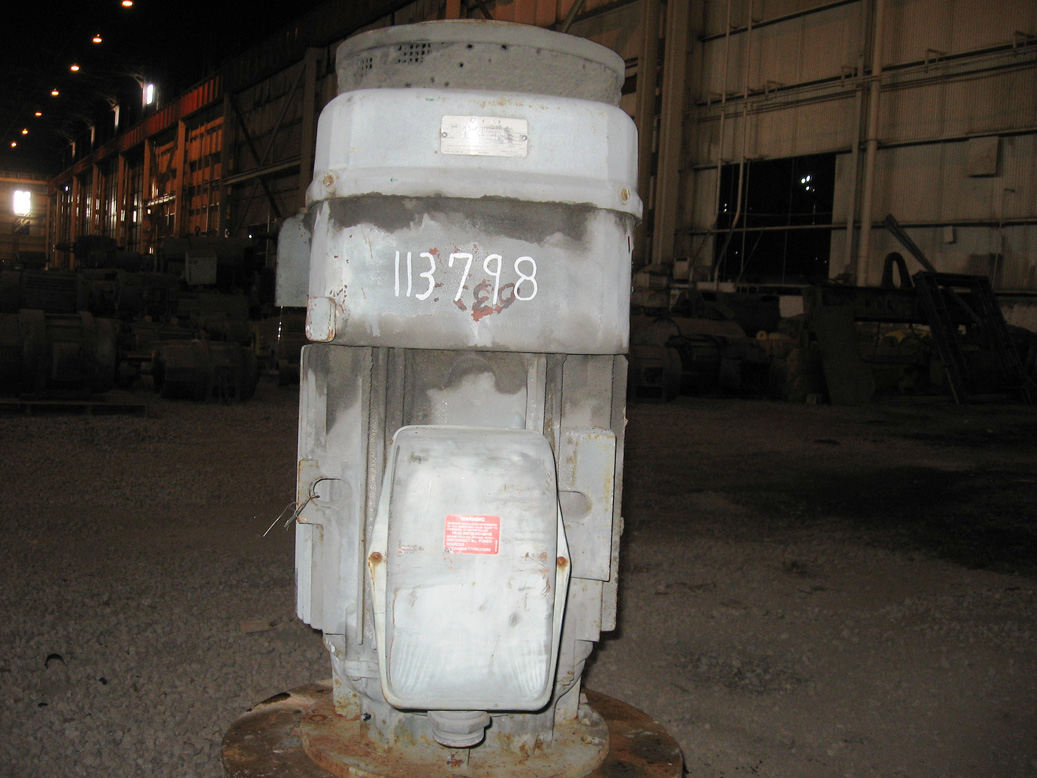

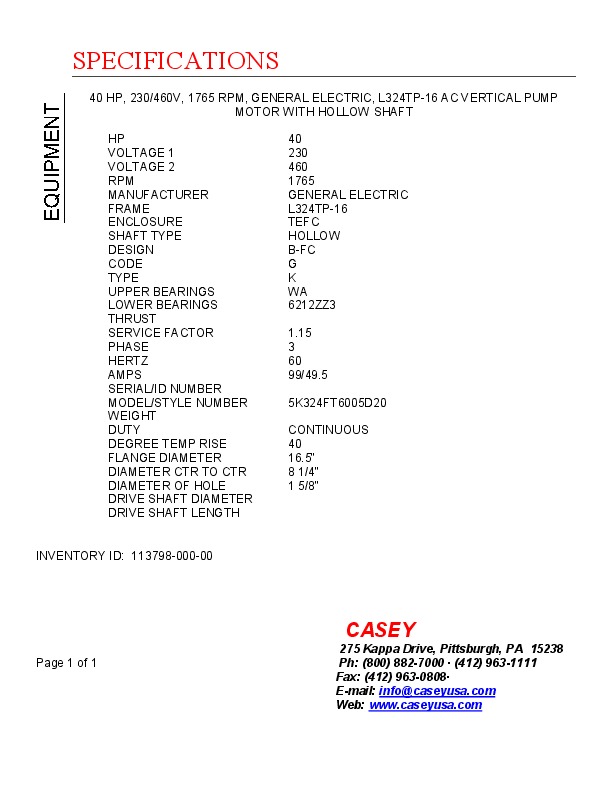

40 HP, 1765 RPM, 230/460V, GENERAL ELECTRIC, L324TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT
 "11379800000 40 HP, 1765 RPM, 230/460V, GENERAL ELECTRIC, L324TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT")
| INVENTORY ID | 11379800000 |
| TITLE | 40 HP, 1765 RPM, 230/460V, GENERAL ELECTRIC, L324TP-16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT |
| HP | 40 |
| RPM | 1765 |
| VOLTAGE 2 | 460 |
| VOLTAGE 1 | 230 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | L324TP-16 |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW |
| DESIGN | B-FC |
| CODE | G |
| TYPE | K |
| UPPER BEARINGS | WA |
| LOWER BEARINGS | 6212ZZ3 |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 99/49.5 |
| MODEL/STYLE NUMBER | 5K324FT6005D20 |
| WEIGHT | 600 |
| DUTY | CONTINUOUS |
| DEGREE TEMP RISE | 40 |
| FLANGE DIAMETER | 16.5" |
| DIAMETER CTR TO CTR | 8 1/4" |
| DIAMETER OF HOLE | 1 5/8" |
