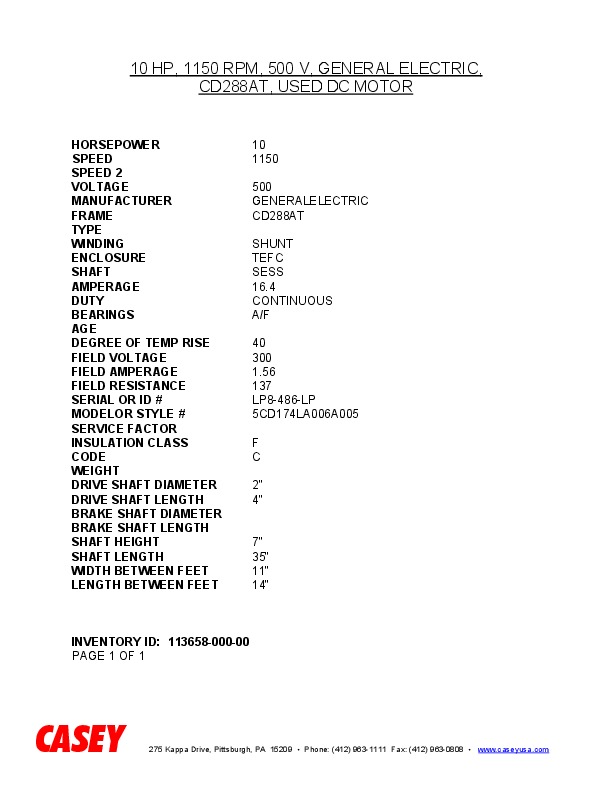

QTY (2) 10 HP, 1150 RPM, 500 V, GENERAL ELECTRIC, CD288AT, USED DC MOTOR
| INVENTORY ID | 11365800000 |
| TITLE | QTY (2) 10 HP, 1150 RPM, 500 V, GENERAL ELECTRIC, CD288AT, USED DC MOTOR |
| HORSEPOWER | 10 |
| SPEED | 1150 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 288AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 16.4 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 1.56 |
| FIELD RESISTANCE | 137 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | LP8-486-LP |
| MODEL NUMBER OR STYLE NUMBER | 5CD174LA006A005 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | G |
| WEIGHT | 587 |
| DRIVE SHAFT DIMENSION | 2" |
| DRIVE SHAFT LENGTH | 4" |
| SHAFT HEIGHT | 7" |
| MOTOR LENGTH | 35" |
| WIDTH BETWEEN FEET | 11" |
| LENGTH BETWEEN FEET | 14" |
