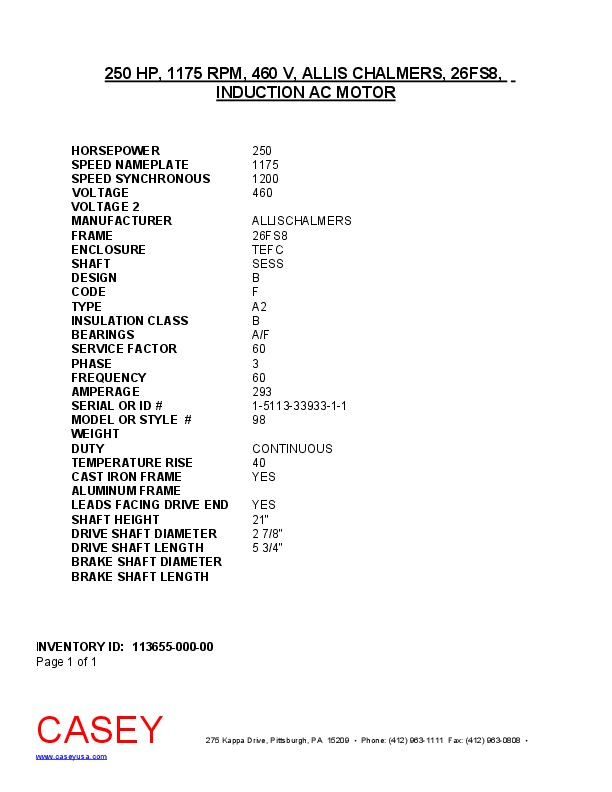

250 HP, 1175 RPM, 460 V, ALLIS CHALMERS, 26FS8, INDUCTION AC MOTOR
| INVENTORY ID | 11365500000 |
| TITLE | 250 HP, 1175 RPM, 460 V, ALLIS CHALMERS, 26FS8, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1175 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | ALLIS CHALMERS |
| FRAME | 26FS8 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | A2 |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 60 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 293 |
| SERIAL NUMBER OR ID NUMBER | 1-5113-33933-1-1 |
| MODEL NUMBER OR STYLE NUMBER | 98 |
| WEIGHT | 2,165 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | YES |
| SHAFT HEIGHT | 21" |
| DRIVE SHAFT DIAMETER | 2 7/8" |
| DRIVE SHAFT LENGTH | 5 3/4" |
