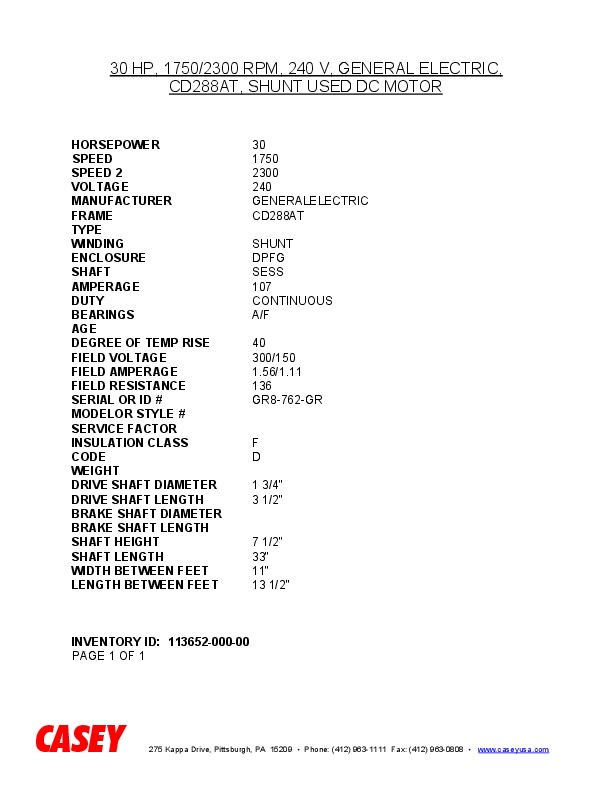

30 HP, 1750/2300 RPM, 240 V, GENERAL ELECTRIC, CD288AT, SHUNT USED DC MOTOR
| INVENTORY ID | 11365200000 |
| TITLE | 30 HP, 1750/2300 RPM, 240 V, GENERAL ELECTRIC, CD288AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 30 |
| SPEED | 1750 |
| SPEED 2 | 2300 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 288AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS |
| AMPERAGE | 107 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 1.56/1.11 |
| FIELD RESISTANCE | 136 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | GR8-762-GR |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 550 |
| DRIVE SHAFT DIMENSION | 1 3/4" |
| DRIVE SHAFT LENGTH | 3 1/2" |
| SHAFT HEIGHT | 7 1/2" |
| SHAFT LENGTH | 33" |
| WIDTH BETWEEN FEET | 11" |
| LENGTH BETWEEN FEET | 13 1/2" |
