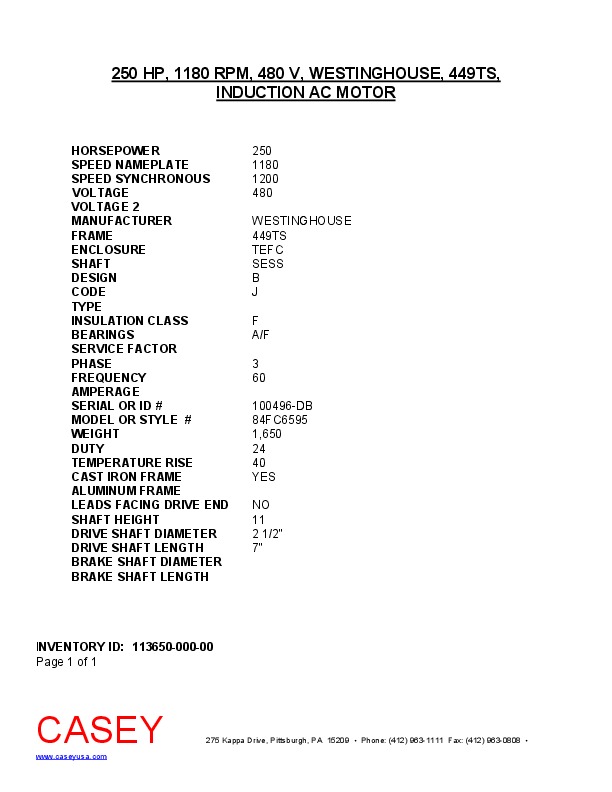

250 HP, 1180 RPM, 480 V, WESTINGHOUSE, 449TS, INDUCTION AC MOTOR
| INVENTORY ID | 11365000000 |
| TITLE | 250 HP, 1180 RPM, 480 V, WESTINGHOUSE, 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1180 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 480 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 449TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | J |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| SERIAL NUMBER OR ID NUMBER | 100496-DB |
| MODEL NUMBER OR STYLE NUMBER | 84FC6595 |
| WEIGHT | 1,650 |
| DUTY | 24 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | NO |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 1/2" |
| DRIVE SHAFT LENGTH | 7" |
