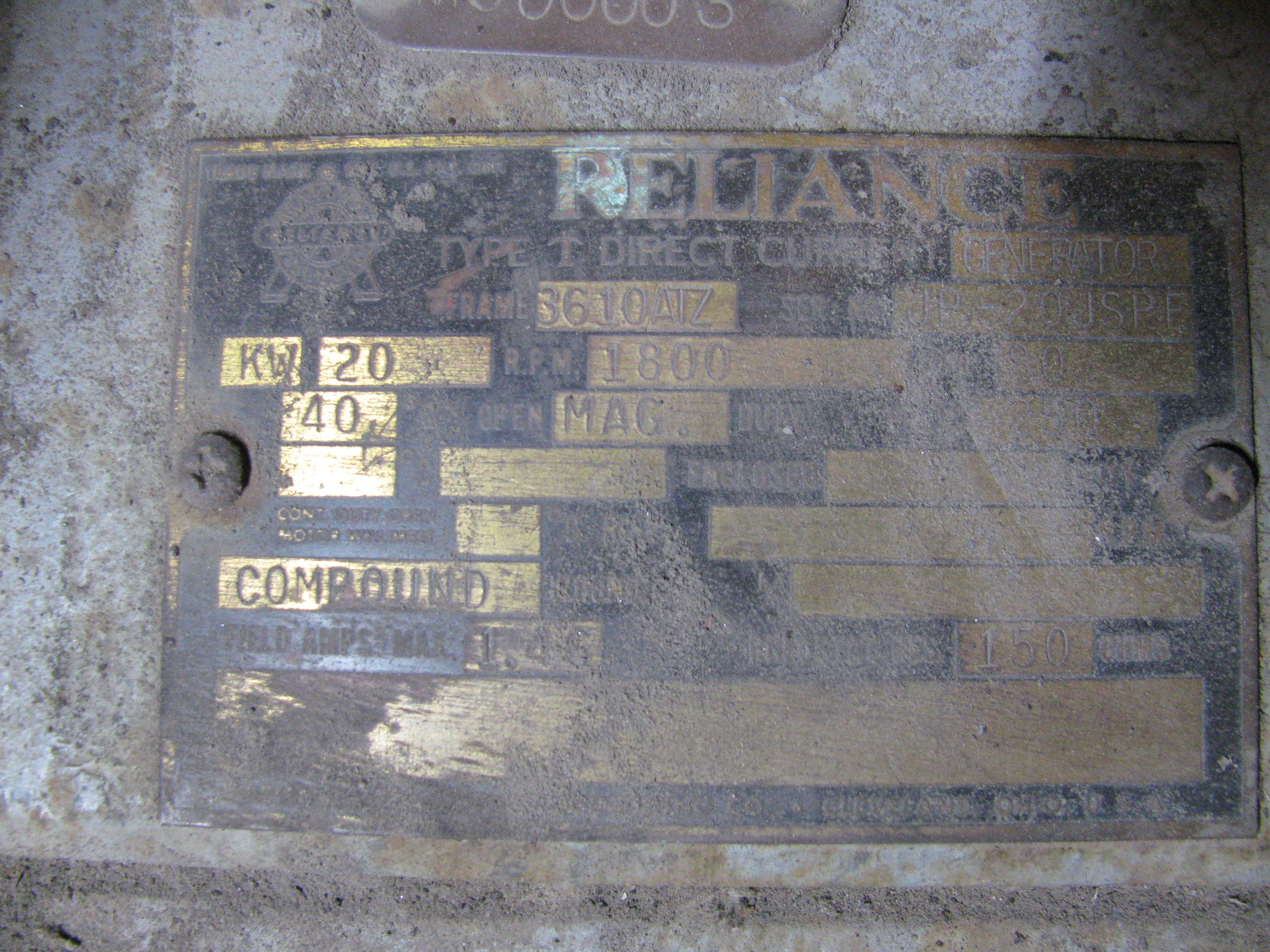

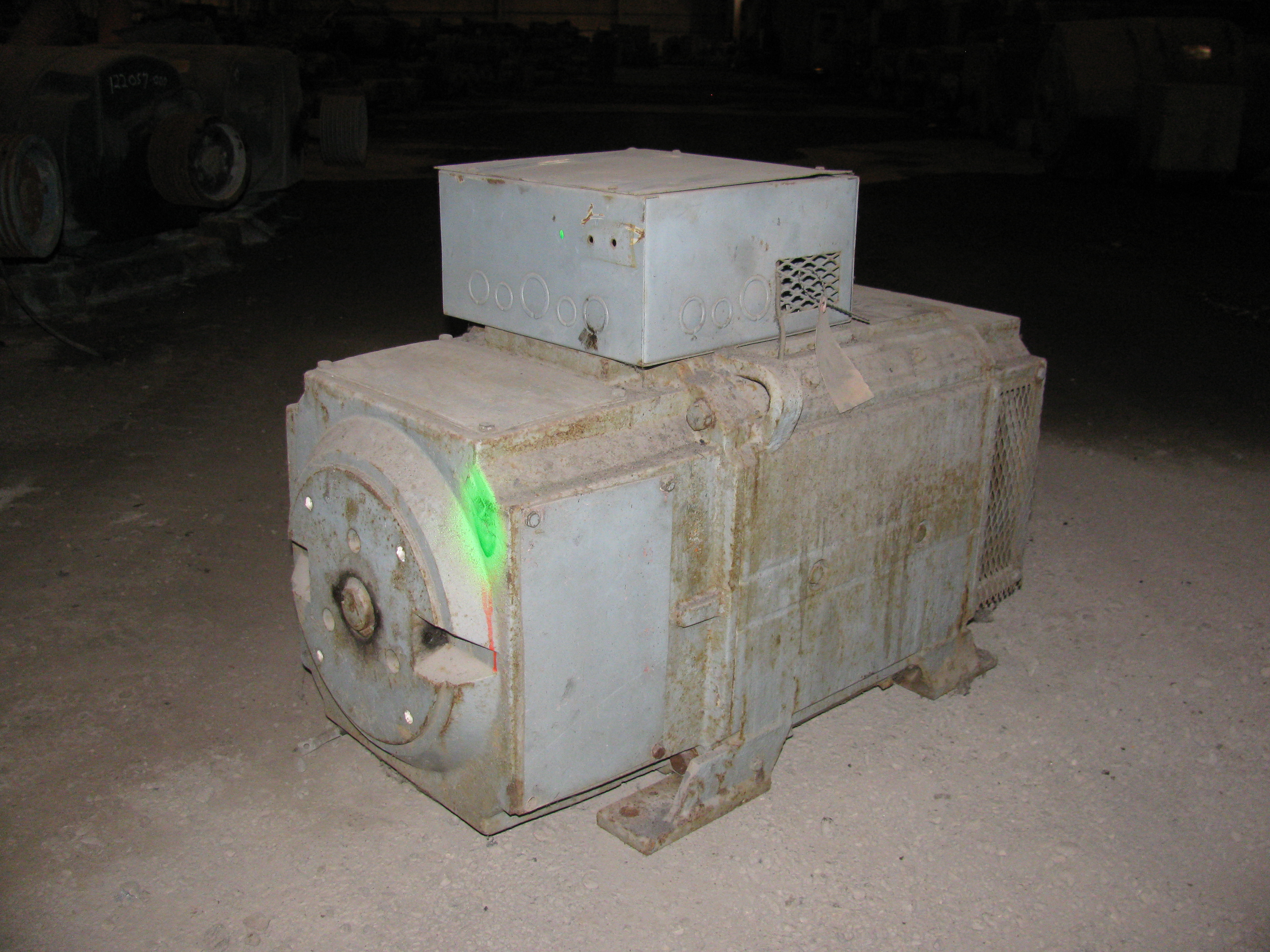

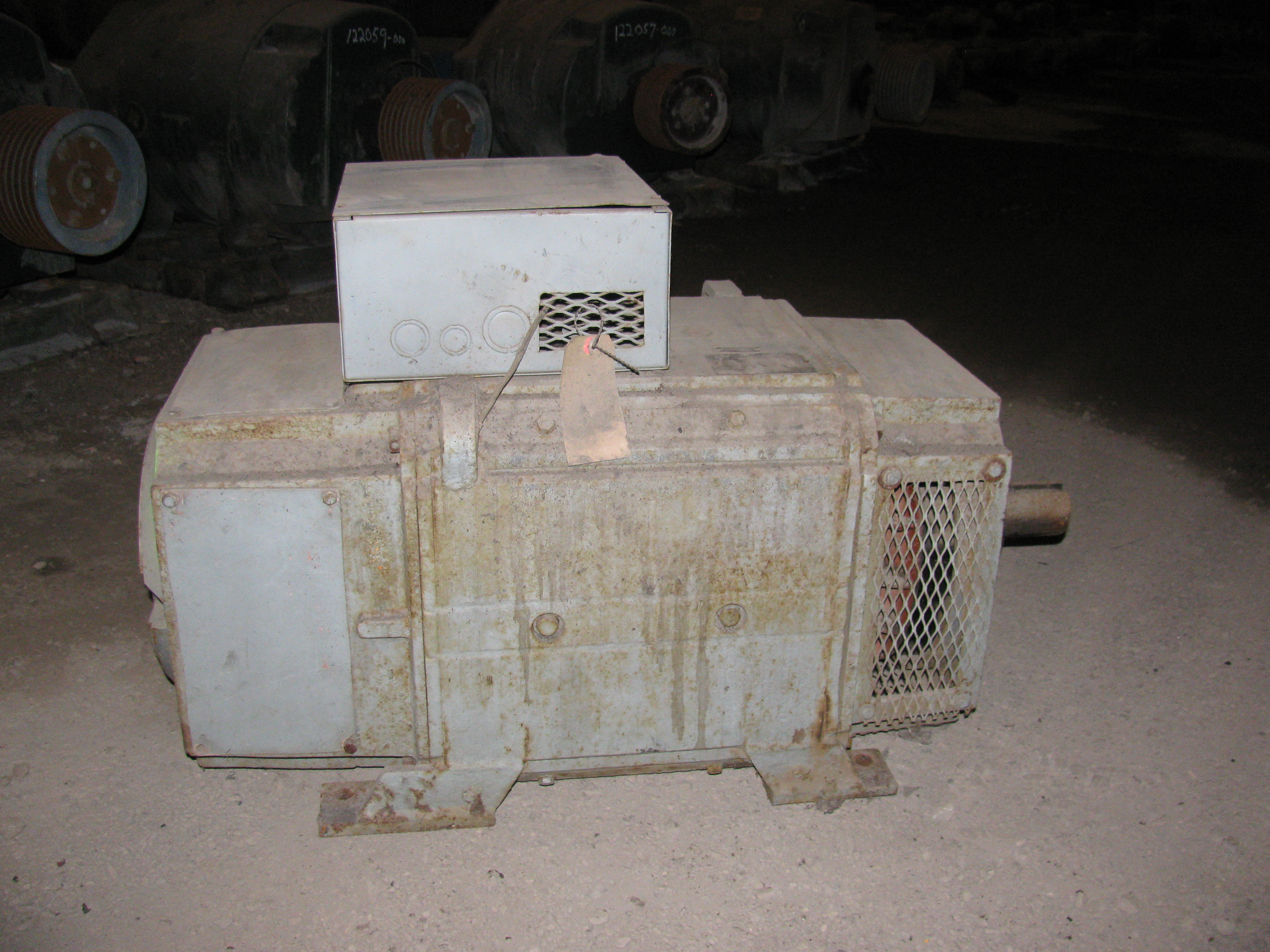

20 KW, 1800 RPM, 250 V, RELIANCE, 3610ATZ, DC GENERATOR
 "11364400000 20 KW, 1800 RPM, 250 V, RELIANCE, 3610ATZ, DC GENERATOR")
 "11364400000 20 KW, 1800 RPM, 250 V, RELIANCE, 3610ATZ, DC GENERATOR")
 "11364400000 20 KW, 1800 RPM, 250 V, RELIANCE, 3610ATZ, DC GENERATOR")
| INVENTORY ID | 11364400000 |
| TITLE | 20 KW, 1800 RPM, 250 V, RELIANCE, 3610ATZ, DC GENERATOR |
| KW | 20 |
| RPM | 1800 |
| VOLTAGE | 250 |
| AMPS | 80 |
| WINDING | COMPOUND |
| FRAME | 3610ATZ |
| TYPE | T |
| MANUFACTURER | RELIANCE |
| ENCLOSURE | DRIP PROOF - LEADS OUT THE TOP |
| SHAFT | SESS |
| DUTY | MAGNET GENERATOR |
| BEARINGS | A/F |
| FIELD AMPS | 1.46 |
| DEGREE TEMP RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | JP-20JSPE |
| DRIVE SHAFT DIAMETER | 2 1/2" |
| DRIVE SHAFT LENGTH | 5" |
| OVERALL LENGTH | 41" |
| SHAFT HEIGHT | 8 1/2" |
| WIDTH BETWEEN FEET | 13" |
| LENGTH BETWEEN FEET | 21" |
