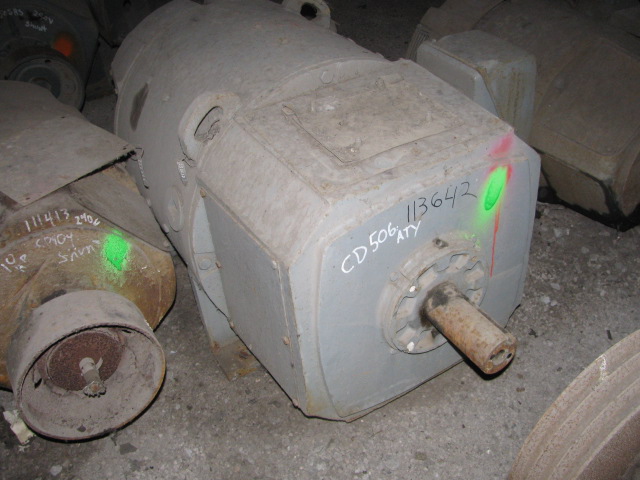

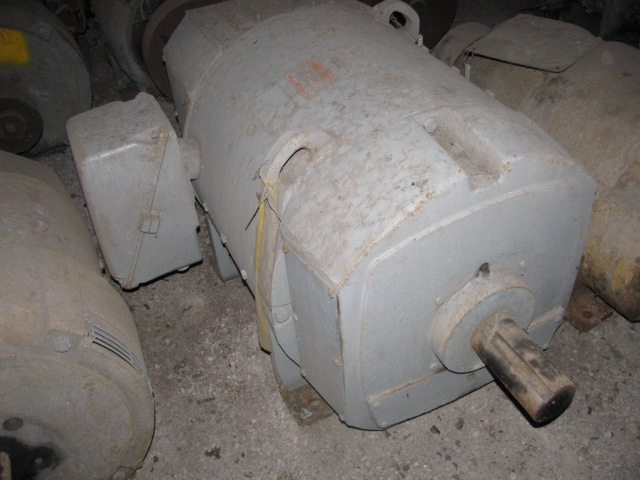

75 HP, 650 RPM, 500 V, GENERAL ELECTRIC, CD506ATY, STAB SHUNT, USED DC MOTOR
 "11364200000 75 HP, 650 RPM, 500 V, GENERAL ELECTRIC, CD506ATY, STAB SHUNT, USED DC MOTOR")
 "11364200000 75 HP, 650 RPM, 500 V, GENERAL ELECTRIC, CD506ATY, STAB SHUNT, USED DC MOTOR")
| INVENTORY ID | 11364200000 |
| TITLE | 75 HP, 650 RPM, 500 V, GENERAL ELECTRIC, CD506ATY, STAB SHUNT, USED DC MOTOR |
| HORSEPOWER | 75 |
| SPEED | 650 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 506ATY |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | DPFC-BV |
| SHAFT | DESS |
| AMPERAGE | 120 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 5.13 |
| FIELD RESISTANCE | 42.2 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | LP-1-212 HP |
| MODEL NUMBER OR STYLE NUMBER | 5CD223LAO16A800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 3 1/4" |
| DRIVE SHAFT LENGTH | 6 1/2" |
| BRAKE SHAFT DIAMETER | 2 7/8" |
| BRAKE SHAFT LENGTH | 6" |
| SHAFT HEIGHT | 12" |
| MOTOR LENGTH | 56" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 19 1/2" |
