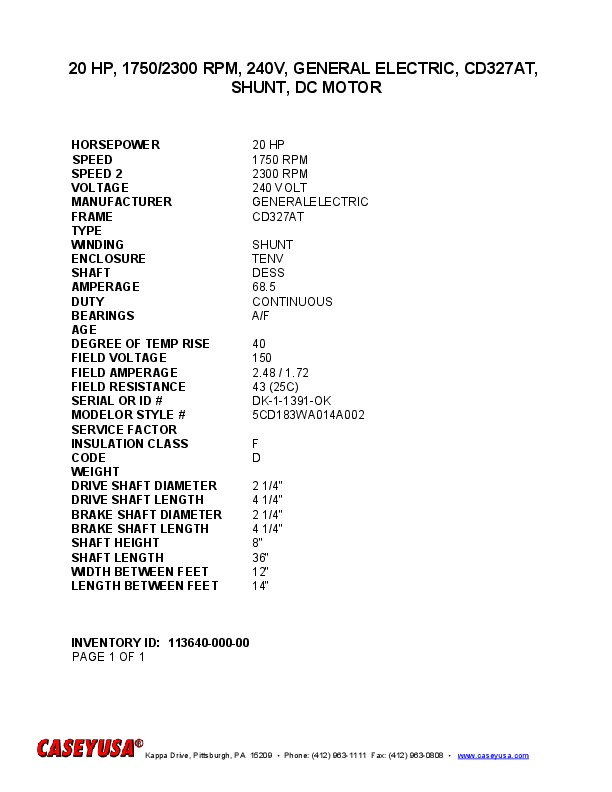

QTY (2) 20 HP, 1750/2300 RPM, 240V, GENERAL ELECTRIC, CD327AT, SHUNT, DC MOTOR
| INVENTORY ID | 11364000000 |
| TITLE | QTY (2) 20 HP, 1750/2300 RPM, 240V, GENERAL ELECTRIC, CD327AT, SHUNT, DC MOTOR |
| HORSEPOWER | 20 HP |
| SPEED | 1750 RPM |
| SPEED 2 | 2300 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 327AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TENV |
| SHAFT | DESS |
| AMPERAGE | 68.5 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 150 |
| FIELD AMPERAGE | 2.48 / 1.72 |
| FIELD RESISTANCE | 43 (25C) |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | DK-1-1391-OK |
| MODEL NUMBER OR STYLE NUMBER | 5CD183WA014A002 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2 1/4" |
| DRIVE SHAFT LENGTH | 4 1/4" |
| BRAKE SHAFT DIAMETER | 2 1/4" |
| BRAKE SHAFT LENGTH | 4 1/4" |
| SHAFT HEIGHT | 8" |
| SHAFT LENGTH | 36" |
| WIDTH BETWEEN FEET | 12" |
| LENGTH BETWEEN FEET | 14" |
