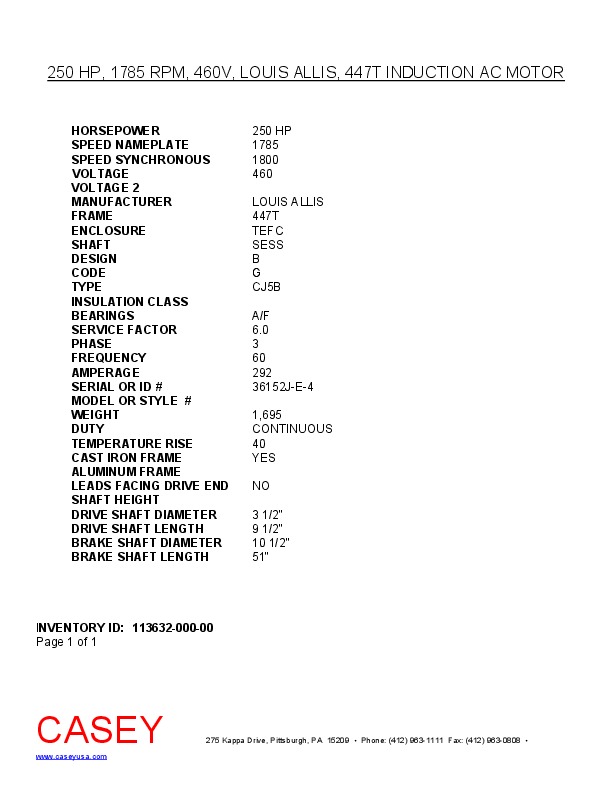

250 HP, 1785 RPM, 460V, LOUIS ALLIS, 447T INDUCTION AC MOTOR
 "11363200000 250 HP, 1785 RPM, 460V, LOUIS ALLIS, 447T INDUCTION AC MOTOR")
| INVENTORY ID | 11363200000 |
| TITLE | 250 HP, 1785 RPM, 460V, LOUIS ALLIS, 447T INDUCTION AC MOTOR |
| HORSEPOWER | 250 HP |
| SPEED NAMEPLATE | 1785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | LOUISALLIS |
| FRAME | 447T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | CJ5B |
| BEARINGS | A/F |
| SERVICE FACTOR | 6.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 292 |
| SERIAL NUMBER OR ID NUMBER | 36152J-E-4 |
| WEIGHT | 1,695 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | NO |
| DRIVE SHAFT DIAMETER | 3 1/2" |
| DRIVE SHAFT LENGTH | 9 1/2" |
| BRAKE SHAFT DIAMETER | 10 1/2" |
| BRAKE SHAFT LENGTH | 51" |
