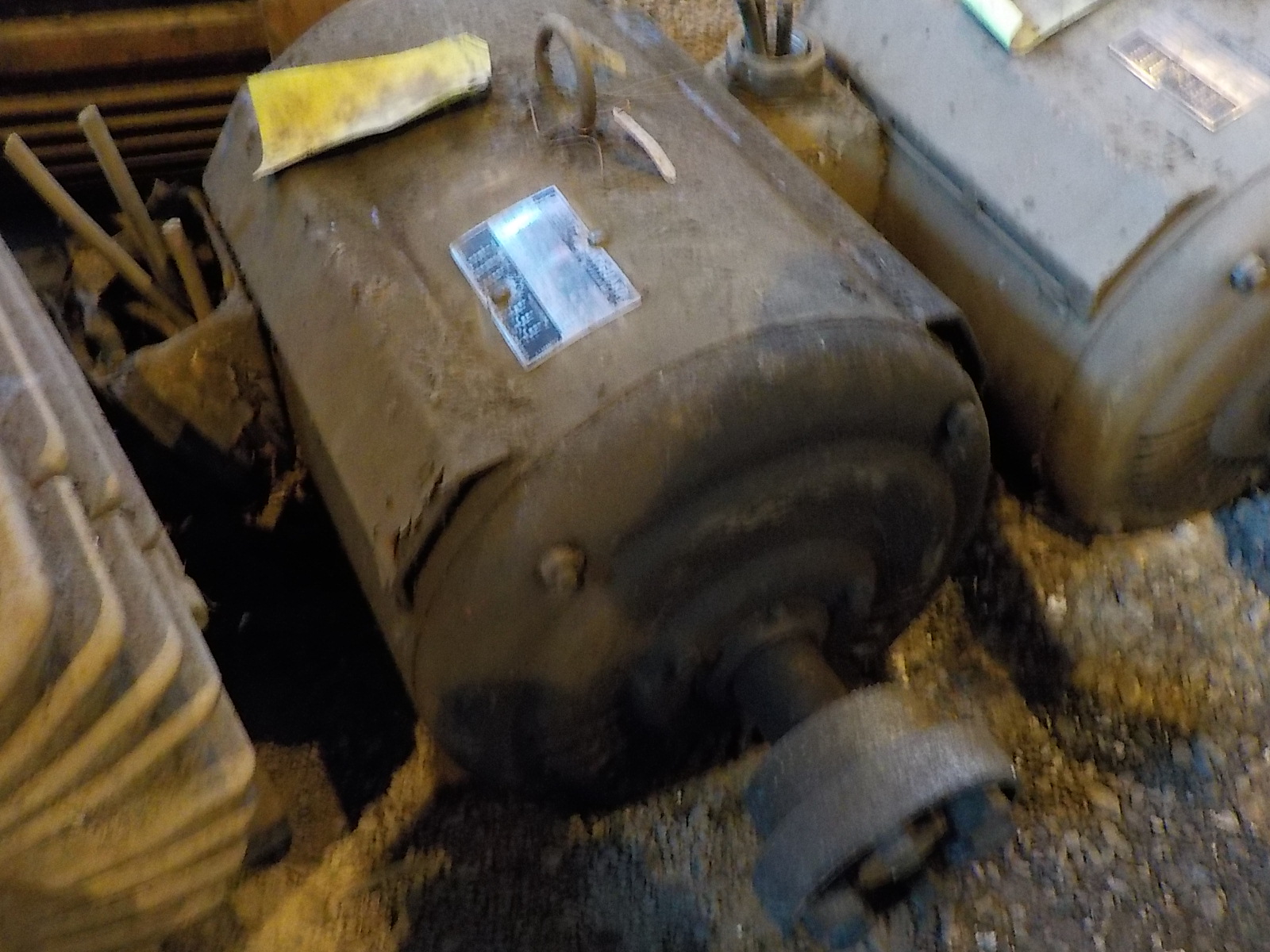

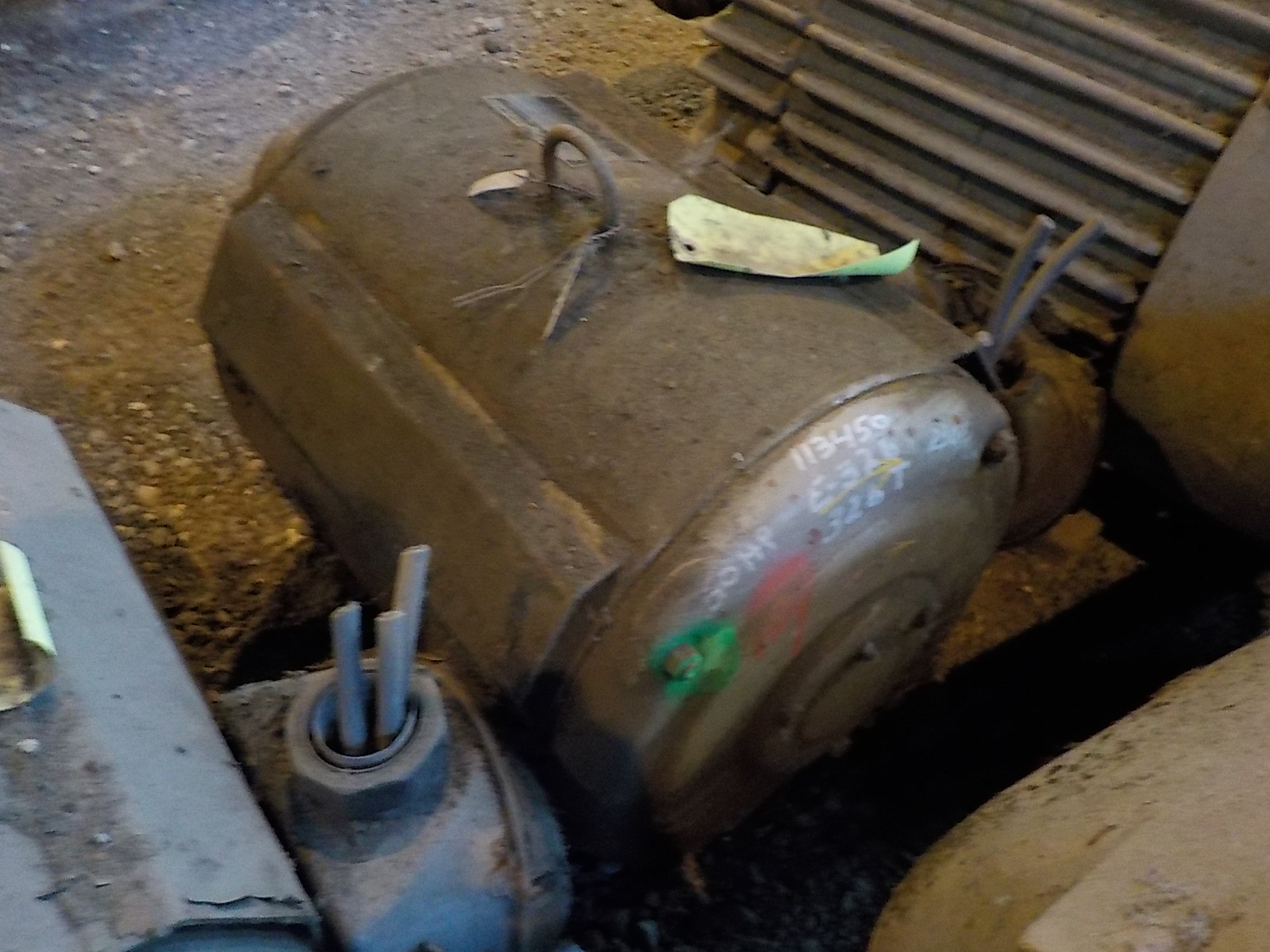

50 HP, 1770 RPM, 230/460V, LINCOLN, 326T AC SQUIRREL CAGE MOTOR
 "11345000000 50 HP, 1770 RPM, 230/460V, LINCOLN, 326T AC SQUIRREL CAGE MOTOR")
 "11345000000 50 HP, 1770 RPM, 230/460V, LINCOLN, 326T AC SQUIRREL CAGE MOTOR")
 "11345000000 50 HP, 1770 RPM, 230/460V, LINCOLN, 326T AC SQUIRREL CAGE MOTOR")

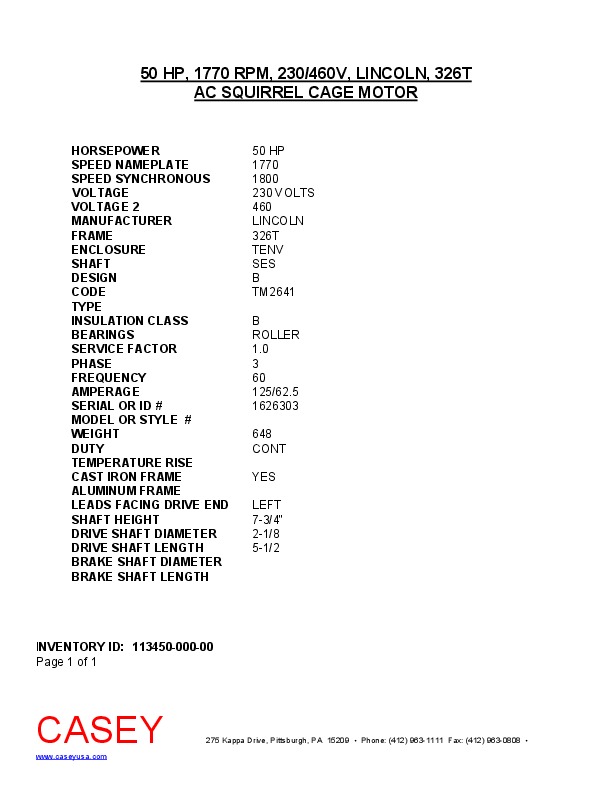

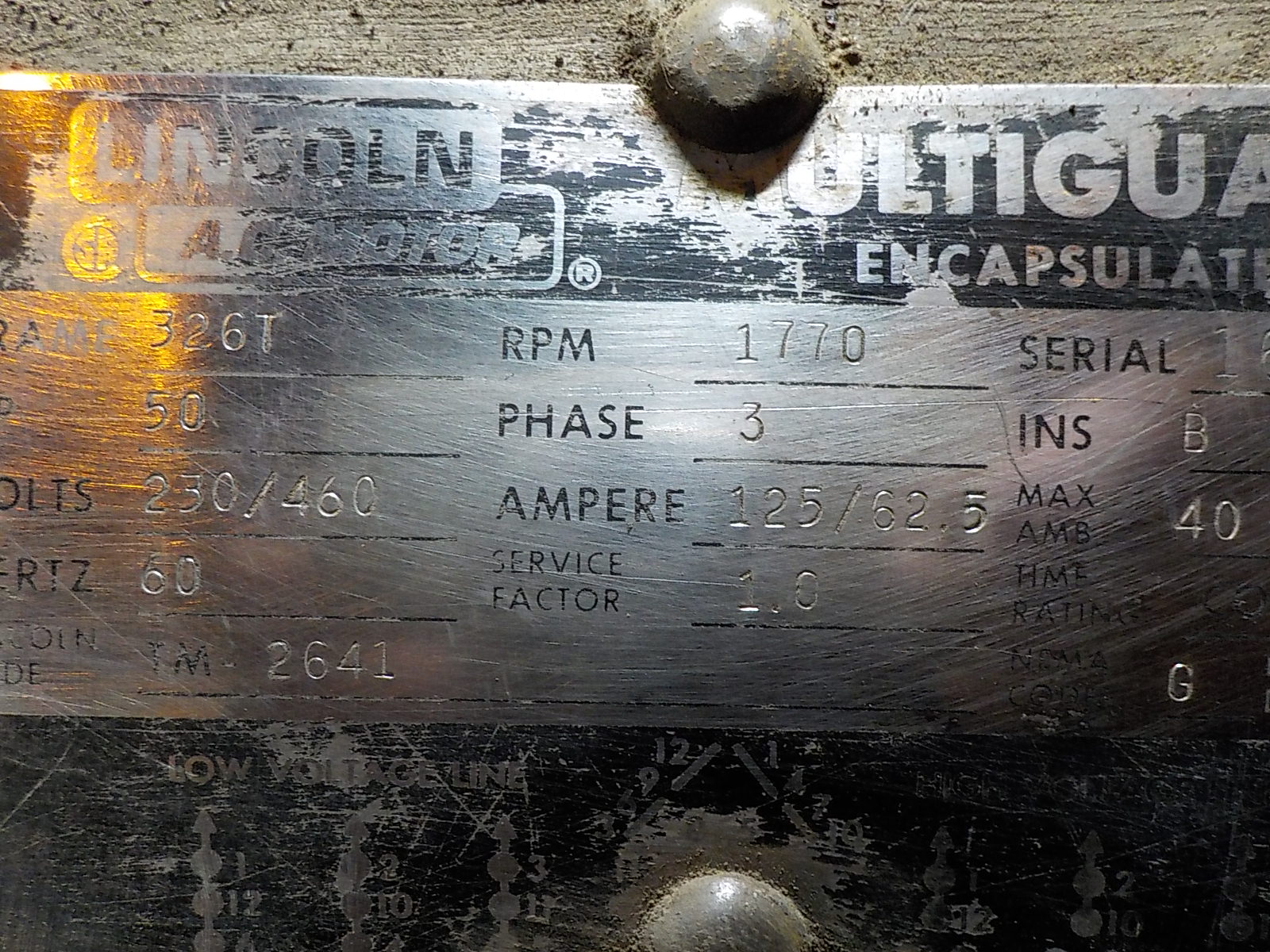

| INVENTORY ID | 11345000000 |
| TITLE | 50 HP, 1770 RPM, 230/460V, LINCOLN, 326T AC SQUIRREL CAGE MOTOR |
| HORSEPOWER | 50 HP |
| SPEED NAMEPLATE | 1770 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 230 VOLTS |
| VOLTAGE 2 | 460 |
| MANUFACTURER | LINCOLN |
| FRAME | 326T |
| ENCLOSURE | TENV |
| SHAFT | SES |
| DESIGN | B |
| CODE | TM2641 |
| INSULATION CLASS | B |
| BEARINGS | ROLLER |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 125/62.5 |
| SERIAL NUMBER OR ID NUMBER | 1626303 |
| WEIGHT | 648 |
| DUTY | CONT |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 7-3/4" |
| DRIVE SHAFT DIAMETER | 2-1/8 |
| DRIVE SHAFT LENGTH | 5-1/2 |
