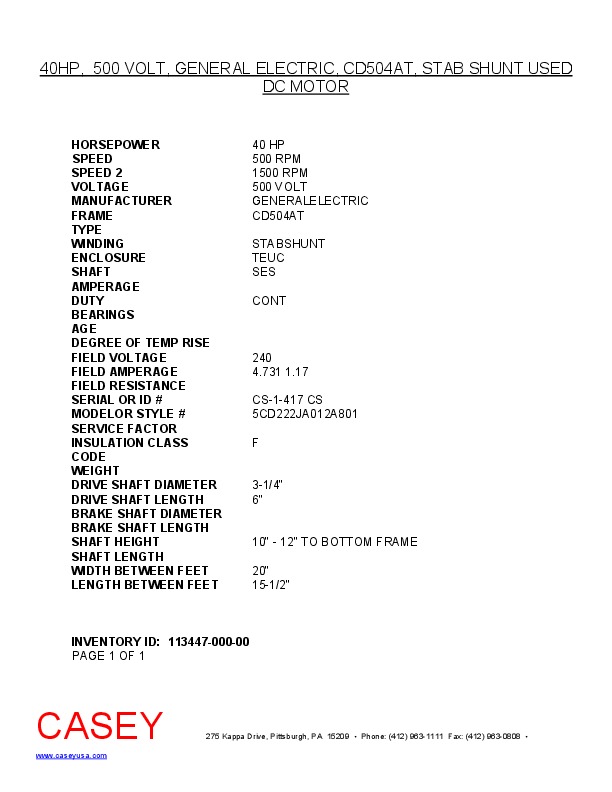

40HP, 500 VOLT, GENERAL ELECTRIC, CD504AT, STAB SHUNT USED DC MOTOR
| INVENTORY ID | 11344700000 |
| TITLE | 40HP, 500 VOLT, GENERAL ELECTRIC, CD504AT, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 40 HP |
| SPEED | 500 RPM |
| SPEED 2 | 1500 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 504AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | TEUC |
| SHAFT | SES |
| DUTY | CONT |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 4.731 1.17 |
| SERIAL NUMBER OR ID NUMBER | CS-1-417 CS |
| MODEL NUMBER OR STYLE NUMBER | 5CD222JA012A801 |
| INSULATION CLASS | F |
| DRIVE SHAFT DIMENSION | 3-1/4" |
| DRIVE SHAFT LENGTH | 6" |
| SHAFT HEIGHT | 10" - 12" TO BOTTOM FRAME |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 15-1/2" |
