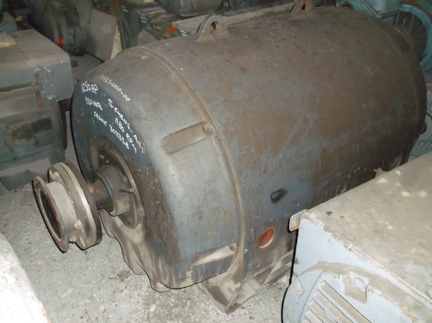

1250 HP, 1185 RPM, 4000V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR
 "11342800000 1250 HP, 1185 RPM, 4000V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR")
 "11342800000 1250 HP, 1185 RPM, 4000V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR")
| INVENTORY ID | 11342800000 |
| TITLE | 1250 HP, 1185 RPM, 4000V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR |
| HORSEPOWER | 1250 HP |
| SPEED NAMEPLATE | 1185 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 4000 VOLT |
| MANUFACTURER | SIEMENS |
| FRAME | 3023S8 |
| ENCLOSURE | DRIP PROOF |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | G |
| INSULATION CLASS | F |
| BEARINGS | DRIVE 6320-OPP DR 6320 |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 168 AMP |
| SERIAL NUMBER OR ID NUMBER | 15115-5974-1-1 |
| WEIGHT | 7,000 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 20" |
| DRIVE SHAFT DIAMETER | 3 3/4" |
| DRIVE SHAFT LENGTH | 7 1/2" |
