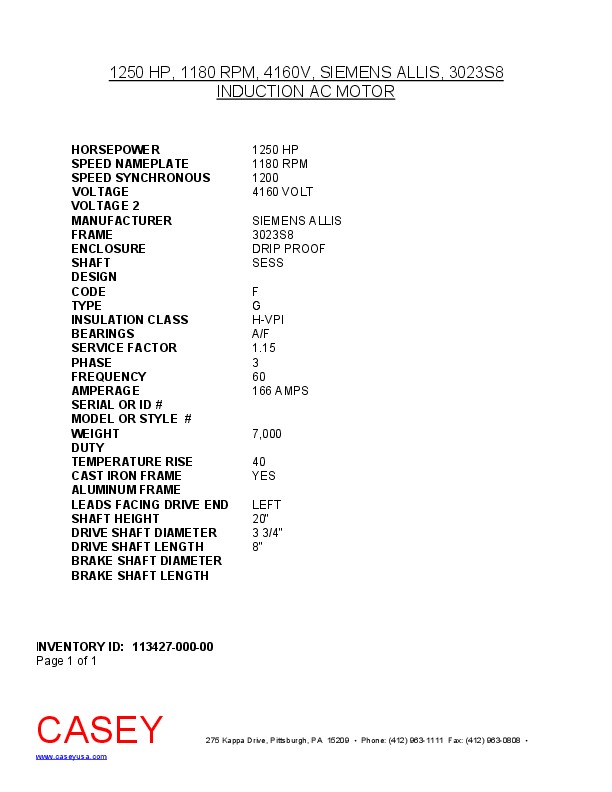

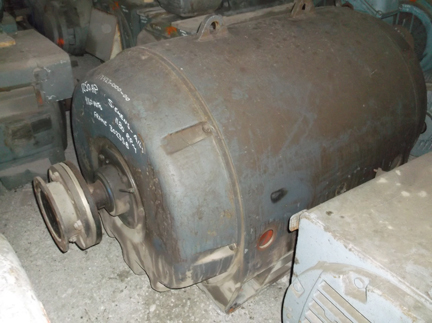

1250 HP, 1180 RPM, 4160V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR
 "11342700000 1250 HP, 1180 RPM, 4160V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR")
 "11342700000 1250 HP, 1180 RPM, 4160V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR")
| INVENTORY ID | 11342700000 |
| TITLE | 1250 HP, 1180 RPM, 4160V, SIEMENS ALLIS, 3023S8 INDUCTION AC MOTOR |
| HORSEPOWER | 1250 HP |
| SPEED NAMEPLATE | 1180 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 4160 VOLT |
| MANUFACTURER | SIEMENS |
| FRAME | 3023S8 |
| ENCLOSURE | DRIP PROOF |
| SHAFT | SESS |
| CODE | F |
| TYPE | G |
| INSULATION CLASS | H-VPI |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 166 AMPS |
| WEIGHT | 7,000 |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 20" |
| DRIVE SHAFT DIAMETER | 3 3/4" |
| DRIVE SHAFT LENGTH | 8" |
