600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450
 "11323600000 600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450")
 "11323600000 600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450")
 "11323600000 600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450")
 "11323600000 600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450")

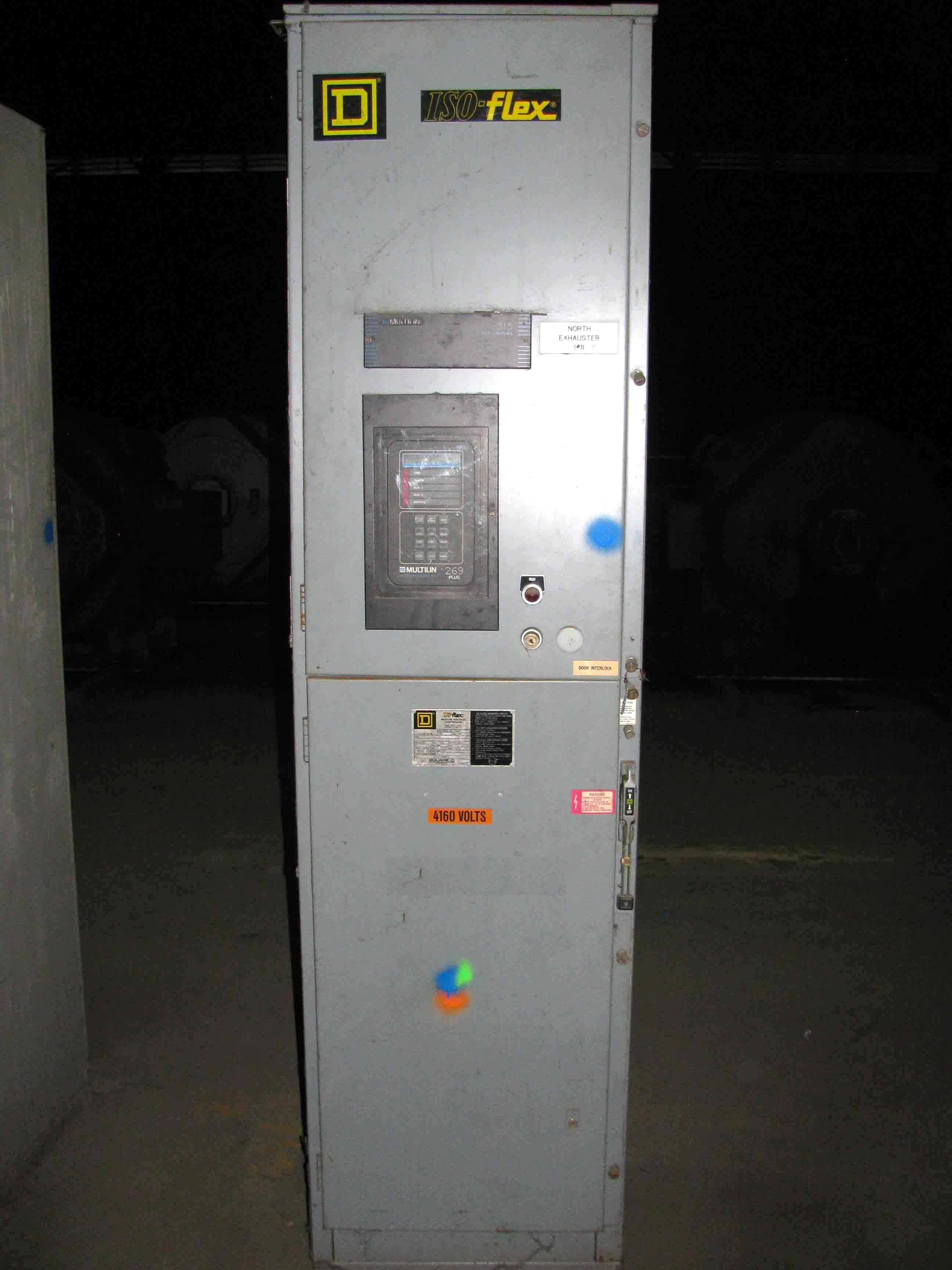

600 HP, SQUARE-D, 4160 VOLT ISOFLEX AC MOTOR STARTER
600 HP
4160 VOLTS
3 PHASE
60 CYCLE
MODEL CS 42
DIAGRAM# C5590052-87-3
FULL VOLTAGE NON REVERSING
INDUCTION MOTOR - NON BRAKING
120 VOLT DC CONTROL CIRCUIT WITH RECTIFIER
WITH CLASS 8110 VACUUM CONTACTOR
TYPE V3540B
FORM JPDX21
360 AMP
3 VACUUM BOTTLE
FUSED
FUSED POWER#
IN 2-HIGH CUBICLE
NEMA TYPE 1 ENCLOSURE

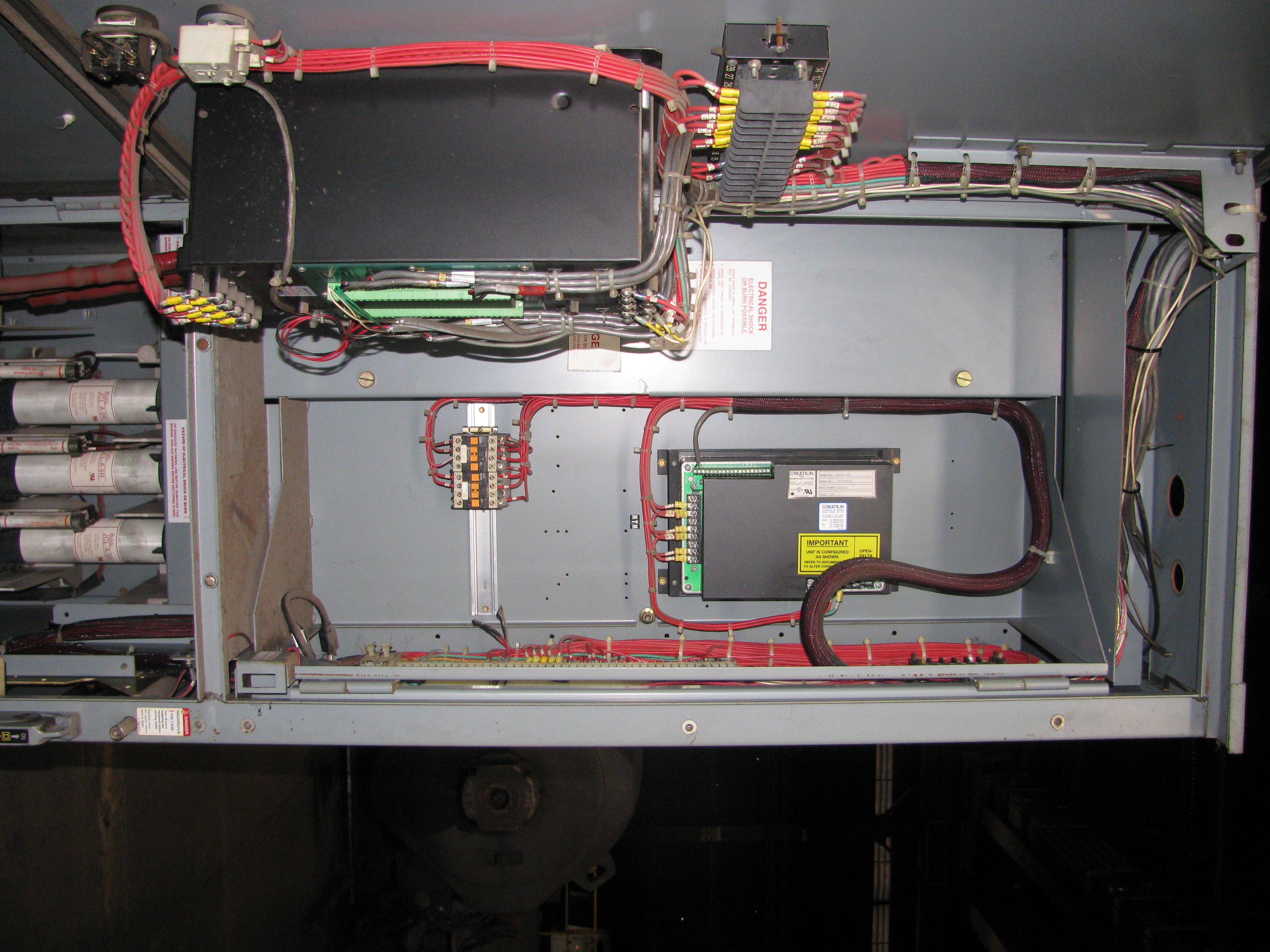

LOW VOLTAGE IN TOP COMPARTMENT
HIGH VOLTAGE IN BOTTOM COMPARTMENT
WITH DOOR LATCH FOR BOTTOM COMPARTMENT
34" W x 92" H X 25" D
ON/OFF BUTTON ON FRONT/div>
MULTIN 269 MOTOR PROTECTION RELAY
INVENTORY ID: 113236-000-00
| INVENTORY ID | 11323600000 |
| TITLE | 600 HP, 4160 V, SQUARE-D, ISOFLEX, SQUIRREL CAGE AC MOTOR STARTER $4450 |
| HP | 600 |
| VOLTAGE | 4160 |
| MANUFACTURER | SQUARE-D |
| TYPE | ACROSS THE LINE |
| AMP RATING | 250 |
| SERIAL NUMBER | B5251711 |
| CATALOG OR MODEL NUMBER | CS42 |
| DIAGRAM NUMBER | C5590052-87-3 |
| DEPTH | 34 " |
| WIDTH | 25 " |
| HEIGHT | 92 " |
