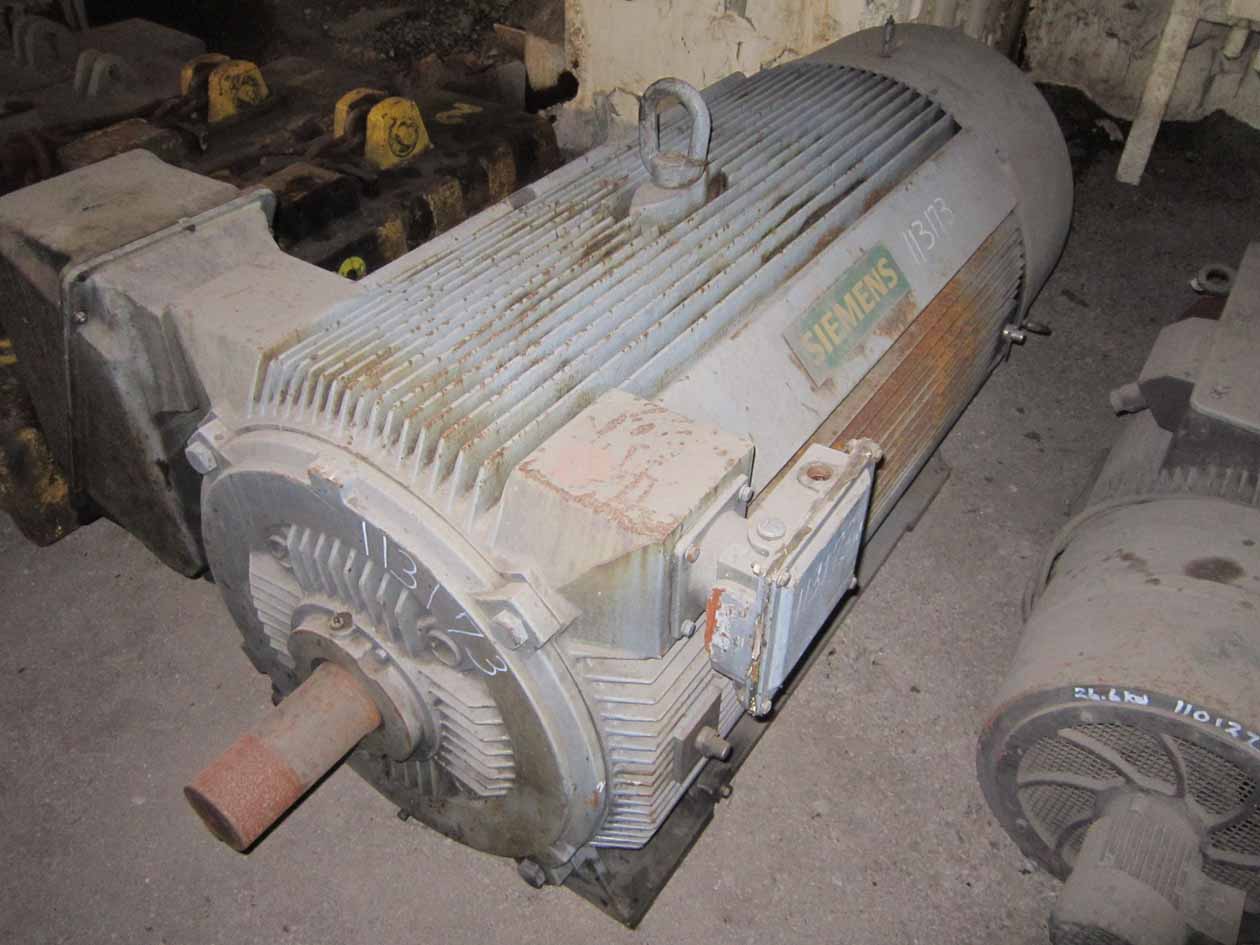

800HP, 1782RPM, 4000V, SIEMENS, 5810S, INDUCTION AC MOTOR
 "11317200000 800HP, 1782RPM, 4000V, SIEMENS, 5810S, INDUCTION AC MOTOR")
 "11317200000 800HP, 1782RPM, 4000V, SIEMENS, 5810S, INDUCTION AC MOTOR")

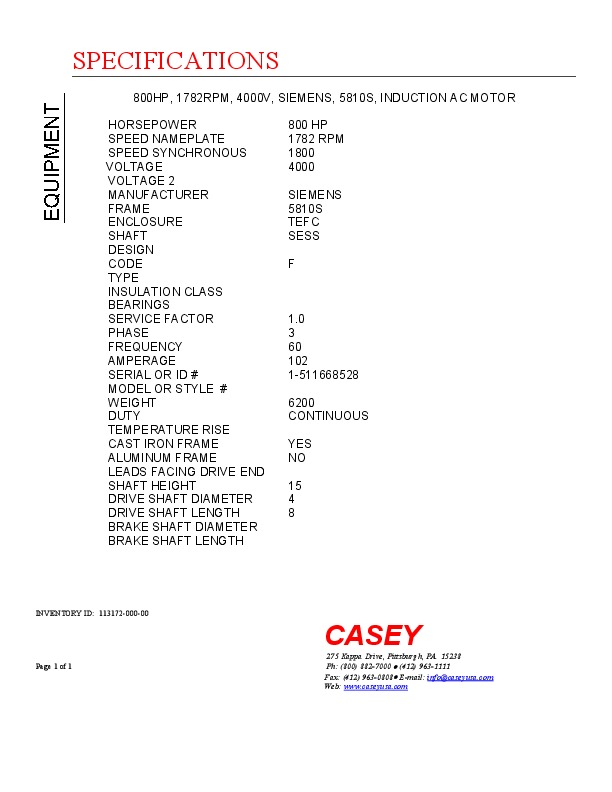

| INVENTORY ID | 11317200000 |
| TITLE | 800HP, 1782RPM, 4000V, SIEMENS, 5810S, INDUCTION AC MOTOR |
| HORSEPOWER | 800 HP |
| SPEED NAMEPLATE | 1782 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 4000 |
| MANUFACTURER | SIEMENS |
| FRAME | 5810S |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| CODE | F |
| BEARINGS | BALL BEARING |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 102 |
| SERIAL NUMBER OR ID NUMBER | 1-511668528 |
| WEIGHT | 6200 |
| DUTY | CONTINUOUS |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| SHAFT HEIGHT | 15 |
| DRIVE SHAFT DIAMETER | 4 |
| DRIVE SHAFT LENGTH | 8 |
