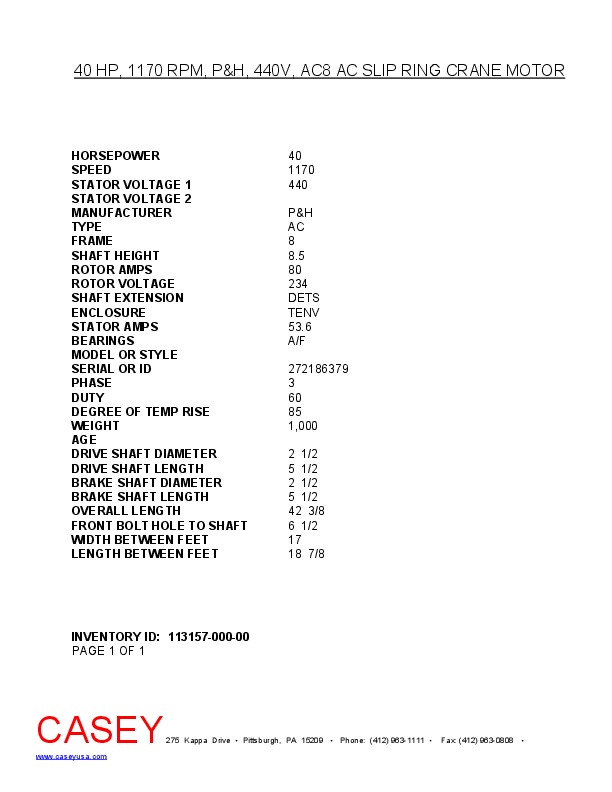

40 HP, 1170 RPM, P&H, 440V, AC8 AC SLIP RING CRANE MOTOR
| INVENTORY ID | 11315700000 |
| TITLE | 40 HP, 1170 RPM, P&H, 440V, AC8 AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 40 |
| SPEED | 1170 |
| STATOR VOLTAGE 1 | 440 |
| MANUFACTURER | P&H |
| TYPE | AC |
| FRAME | 8 |
| SHAFT HEIGHT | 8.5 |
| ROTOR AMPS | 80 |
| ROTOR VOLTS | 234 |
| SHAFT EXTENSION | DETS |
| ENCLOSURE | TENV |
| STATOR AMPS | 53.6 |
| BEARINGS | A/F |
| SERIAL NUMBER OR ID NUMBER | 272186379 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 85 |
| WEIGHT | 1,000 |
| DRIVE SHAFT DIAMETER | 2 1/2 |
| DRIVE SHAFT LENGTH | 5 1/2 |
| BRAKE SHAFT DIAMETER | 2 1/2 |
| BRAKE SHAFT LENGTH | 5 1/2 |
| OVERALL LENGTH | 42 3/8 |
| FRONT BOLT HOLE TO SHAFT | 6 1/2 |
| WIDTH BETWEEN FEET | 17 |
| LENGTH BETWEEN FEET | 18 7/8 |
