1000 KVA, 4160 VOLT PRI, 480Y/277 VOLT SEC. SQUARE-D INDOOR SUBSTATION
WITH 600 AMP 4160 VOLT PRIMARY LOAD INTERRUPTOR SWITCH AND (2) 1600 AMP AND (1) 600 AMP WESTINGHOUSE SECONDARY BREAKERS

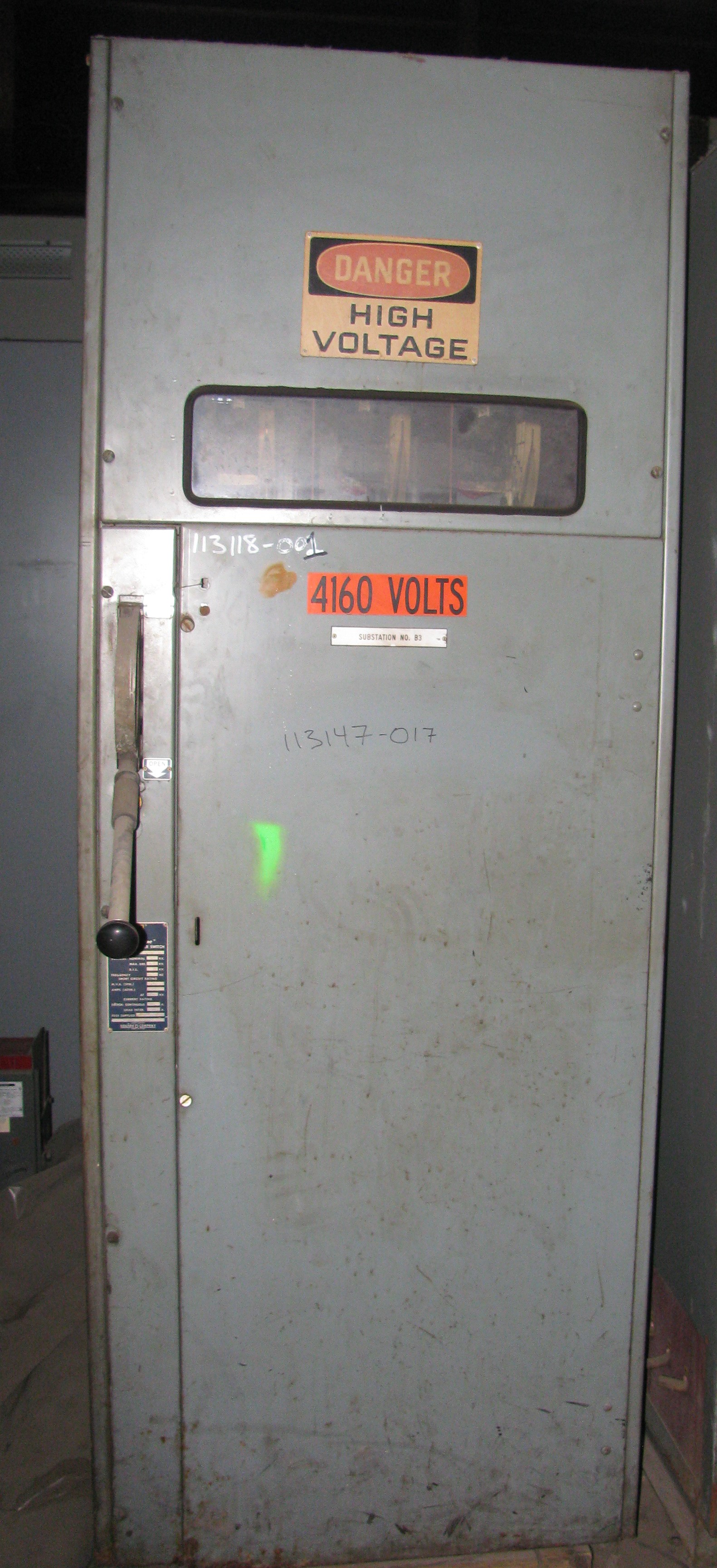

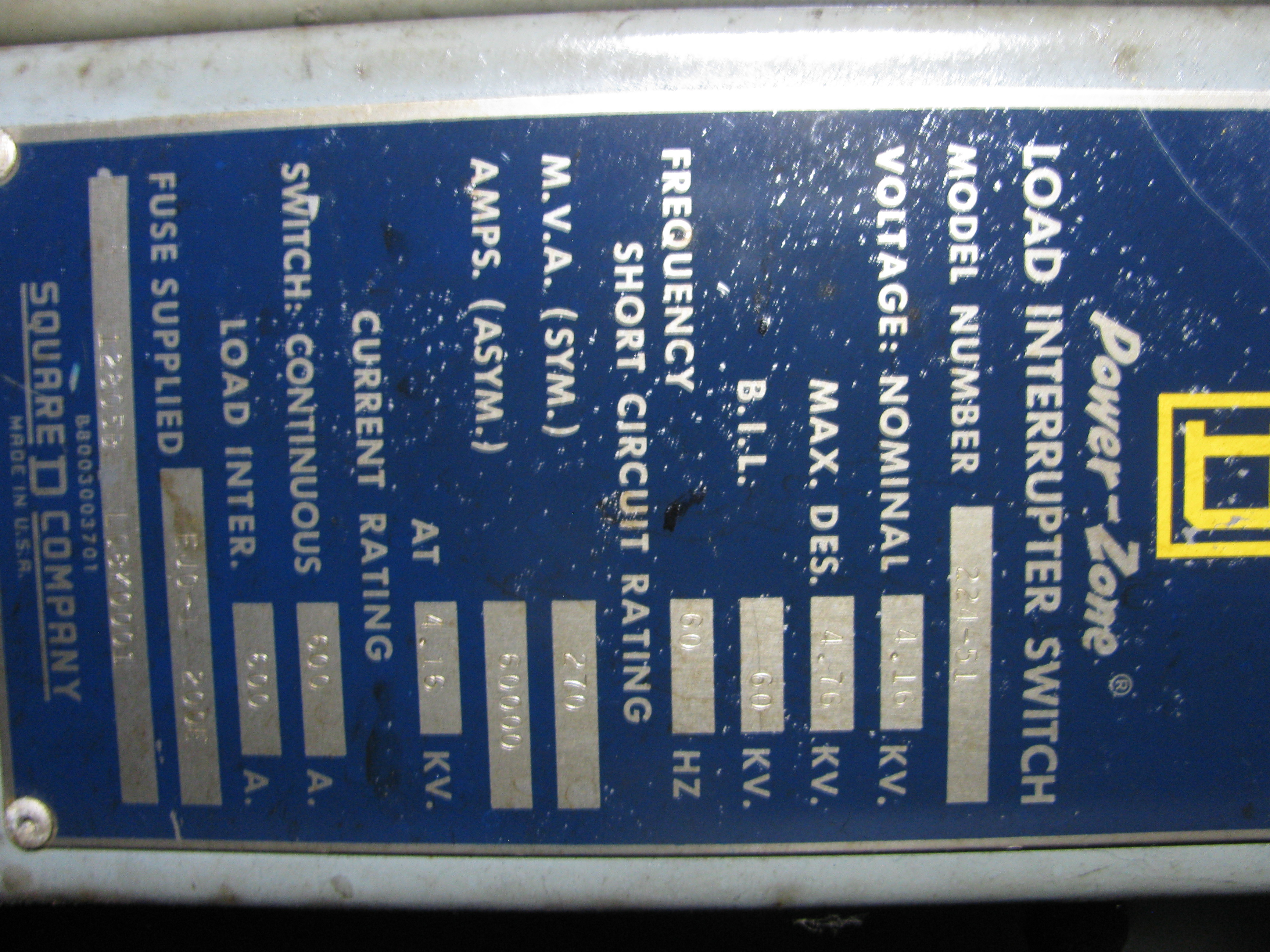

* (1) 600 Amp Square-D Fused Load Interrupter Switch:
4160 volts
type HLV
3-pole
60 cycle
2 position
quick make quick break
current limit fuses with
60,000 amp interruption capacity
free standing enclosure
switch handle mechanically interlocked with fuses
1,700 lbs.
34" W x 90" H
(1) 3 phase set of lighting arrestors

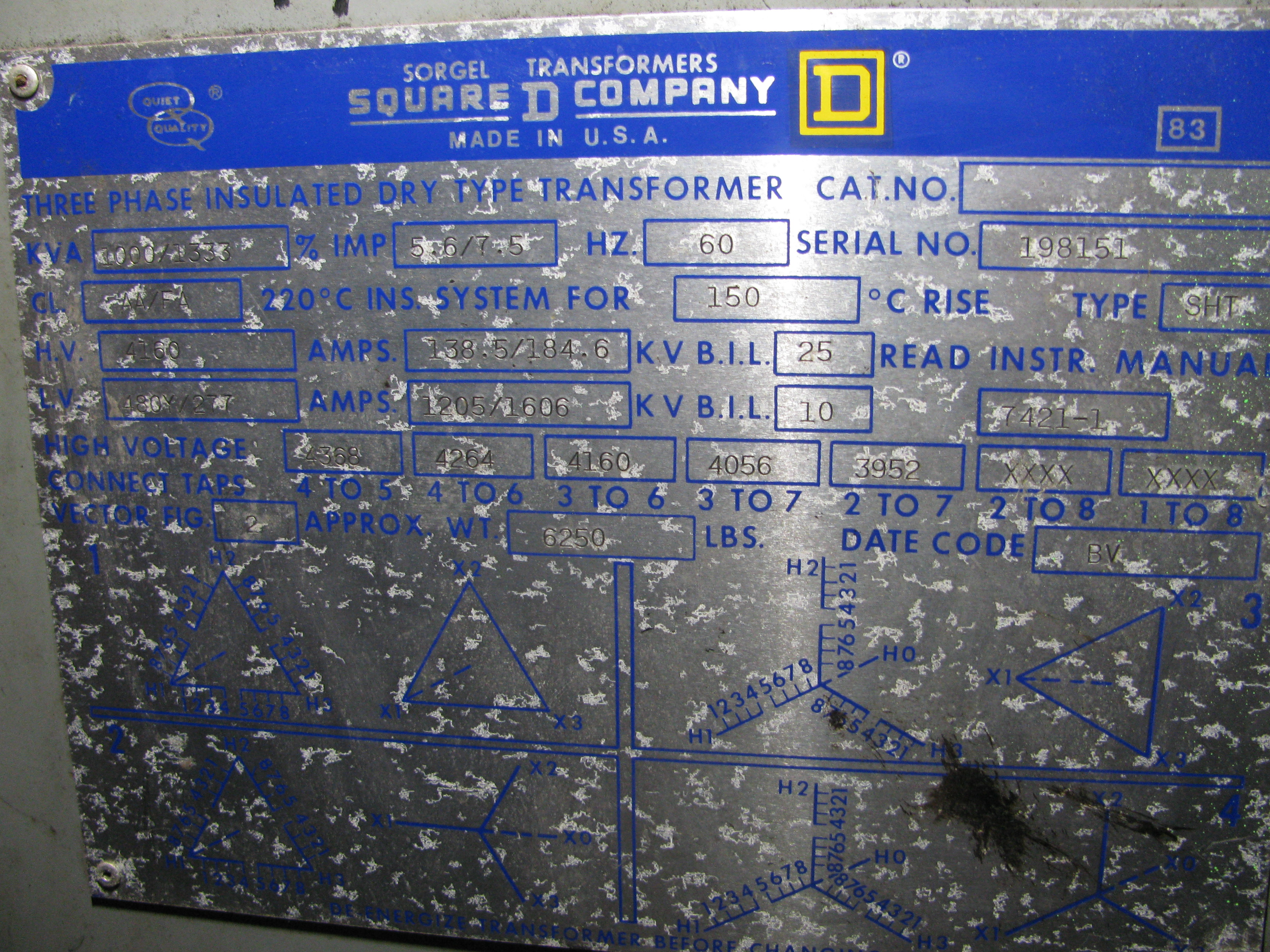

* (1) 1000 KVA, Square-D, Dry Type Transformer:
4160 Volt Primary
480Y/277 Volt 4-wire secondary
3 Phase
60 Cycle
Indoor
Class H insulation
150 degree C rise
(4) 2 1/2% tap on the primary
2 taps above and 2 below normal
6,950 lbs.
72" W x 90" H
* (1) 4-High Cubicle of Westinghouse Secondary Breakers:
(2) 1600 amp type DS416
(1) 600 amp type DS206
Breakers have under voltage trips
21.8" W x 90" H
1,750 lbs.
INVENTORY ID: 113118-001-01
| INVENTORY ID | 11311800001 |
| TITLE | 1000 KVA, 4160V PRI, 480Y/277V SEC, SQUARE-D, INDOOR UNIT SUBSTATION |
| RATING | 1000 |
| PHASE | 3 |
| HERTZ | 60 |
| PRIMARY VOLTAGE | 4160 |
| SECONDARY VOLTAGE | 480 Y / 277 |
| MANUFACTURER | SQUARE-D |
| TYPE | INDOOR |
| CLASS | H |
| IMPEDANCE | 150 |
| TEMPERATURE RISE | 150 |
| WEIGHT | 10,400 |
