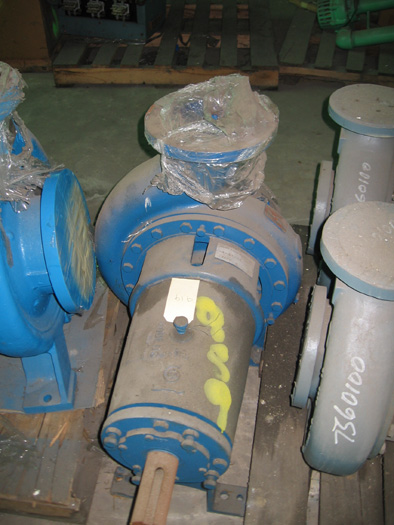

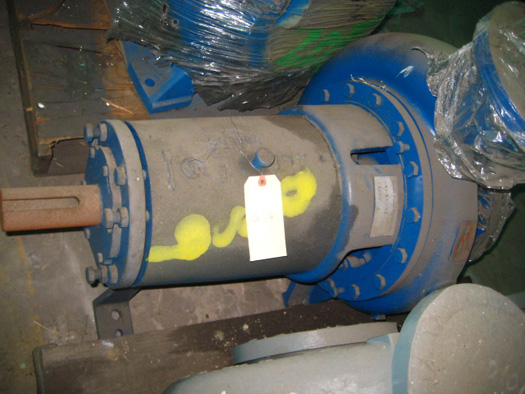

1400 GPM, 90 FoH, GOULDS, MODEL 3196, HORIZONTAL PUMP

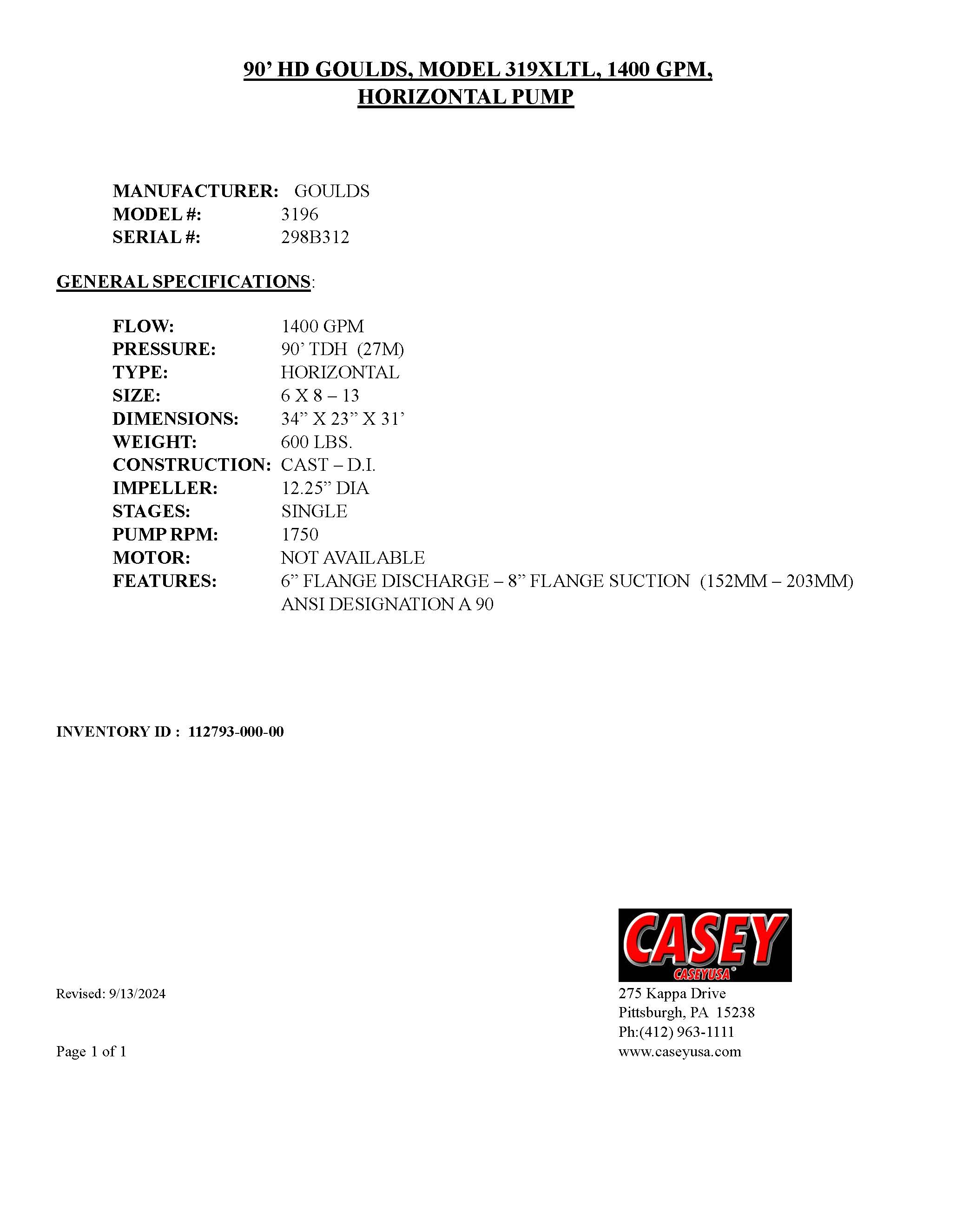

90' HD GOULDS, MODEL 319XLTL, 1400 GPM, HORIZONAL PUMP

MANUFACTURER: GOULDS

MODEL#: 3196

SERIAL#: 298B312

GENERAL SPECIFICATIONS

FLOW: 1400 GPM

PRESSURE: 90' TDH (27M)

TYPE: HORIZONTAL

SIZE: 6 X 8 X 13

DIMENSIONS: 34" X 23" X 31'

WEIGHT: 600 LBS

CONSTRUCTION: CAST - D.I.

IMPELLER: 12.25" DIA

STAGES: SINGLE

PUMP RPM: 1750

MOTOR: NOT AVAILABLE

FEATURES: 6" FLANGE DISCHARGE; 8" FLANGE SUCTION (152MM - 203MM) ANSI DESIGNATION A90

INVENTORY #: 112793-000-00

INVENTORY ID	11279300000
TITLE	1400 GPM, 90 FoH, GOULDS, MODEL 3196, HORIZONTAL PUMP
FLOW	1400
PRESSURE	90
ARRANGEMENT	HORIZONTAL
MANUFACTURER OF EQUIPMENT	GOULDS
MODEL NO	3196
SERIAL NO	2988312
CONSTRUCTION (CAST / FABRICATED)	CAST
NO. OF STAGES	SINGLE
PUMP FEATURES	6 X 8
PUMP RPM	1750
MOTOR AVAILABLE	NOT AVAILABLE
FEATURE 1	ANSI DESIGNATION A90
