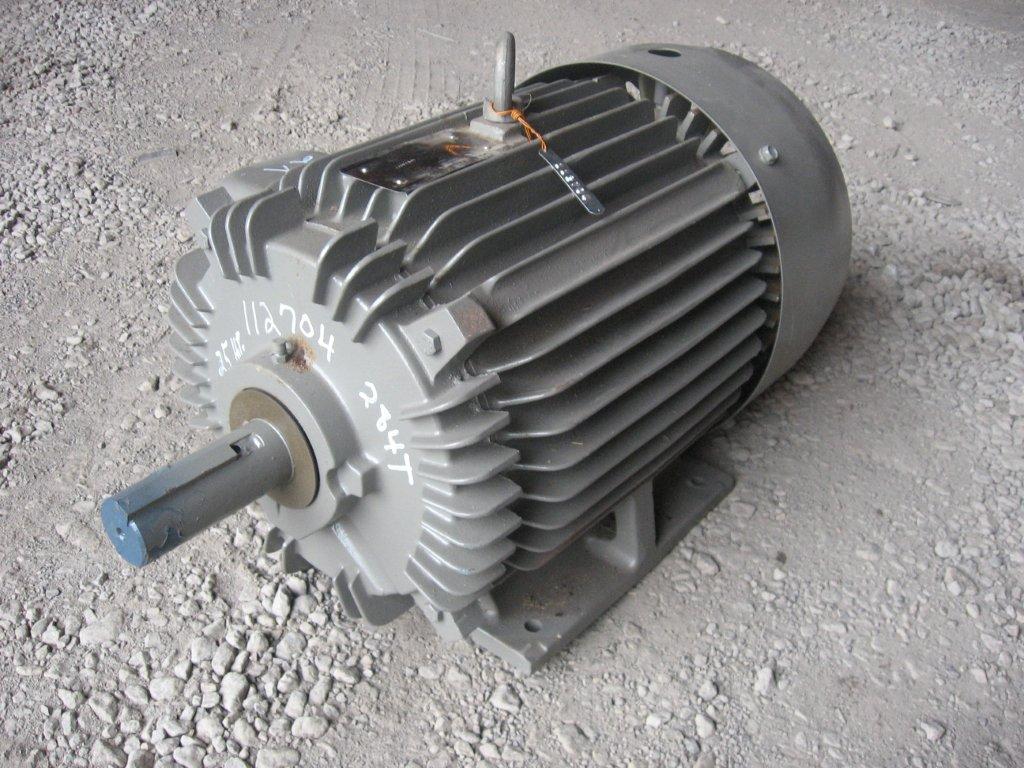

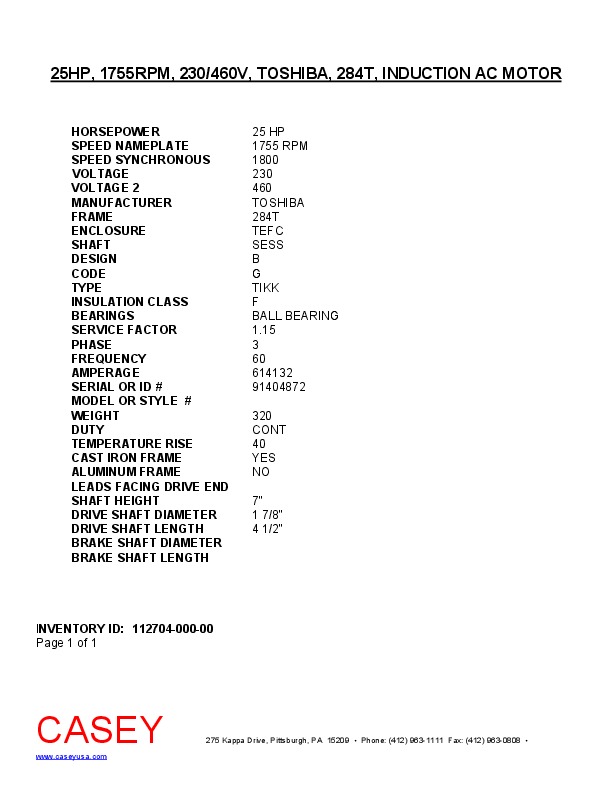

25HP, 1755RPM, 230/460V, TOSHIBA, 284T, INDUCTION AC MOTOR
 "11270400000 25HP, 1755RPM, 230/460V, TOSHIBA, 284T, INDUCTION AC MOTOR")
| INVENTORY ID | 11270400000 |
| TITLE | 25HP, 1755RPM, 230/460V, TOSHIBA, 284T, INDUCTION AC MOTOR |
| HORSEPOWER | 25 HP |
| SPEED NAMEPLATE | 1755 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | TOSHIBA |
| FRAME | 284T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | TIKK |
| INSULATION CLASS | F |
| BEARINGS | BALL BEARING |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 614132 |
| SERIAL NUMBER OR ID NUMBER | 91404872 |
| WEIGHT | 320 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| SHAFT HEIGHT | 7" |
| DRIVE SHAFT DIAMETER | 1 7/8" |
| DRIVE SHAFT LENGTH | 4 1/2" |
