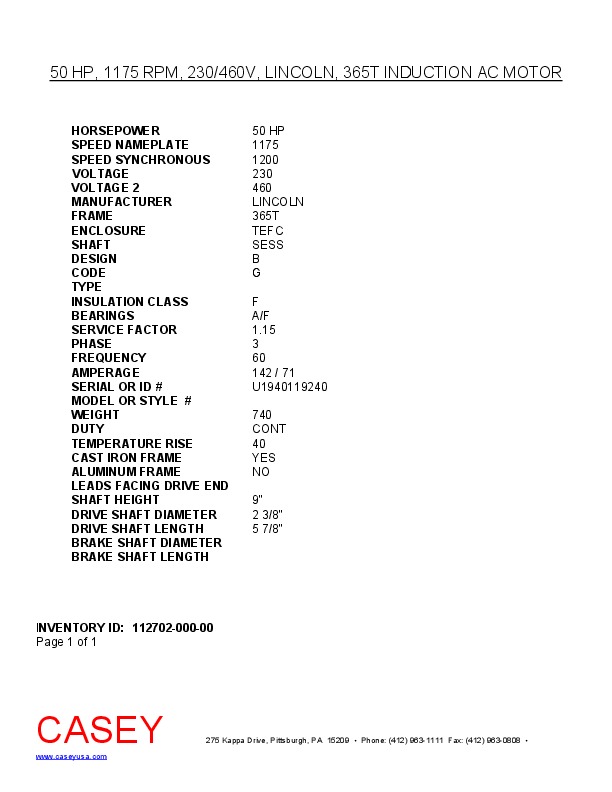

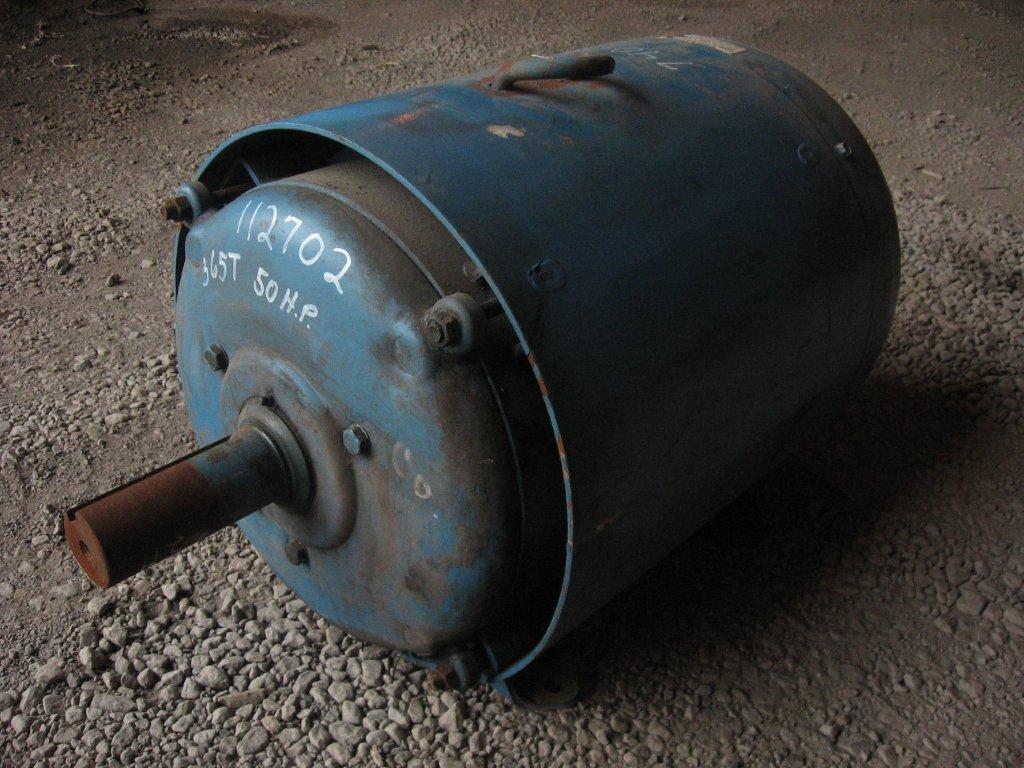

50 HP, 1175 RPM, 230/460V, LINCOLN, 365T INDUCTION AC MOTOR
 "11270200000 50 HP, 1175 RPM, 230/460V, LINCOLN, 365T INDUCTION AC MOTOR")
| INVENTORY ID | 11270200000 |
| TITLE | 50 HP, 1175 RPM, 230/460V, LINCOLN, 365T INDUCTION AC MOTOR |
| HORSEPOWER | 50 HP |
| SPEED NAMEPLATE | 1175 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | LINCOLN |
| FRAME | 365T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 142 / 71 |
| SERIAL NUMBER OR ID NUMBER | U1940119240 |
| WEIGHT | 740 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| CAST ALUM FRAME | NO |
| SHAFT HEIGHT | 9" |
| DRIVE SHAFT DIAMETER | 2 3/8" |
| DRIVE SHAFT LENGTH | 5 7/8" |
